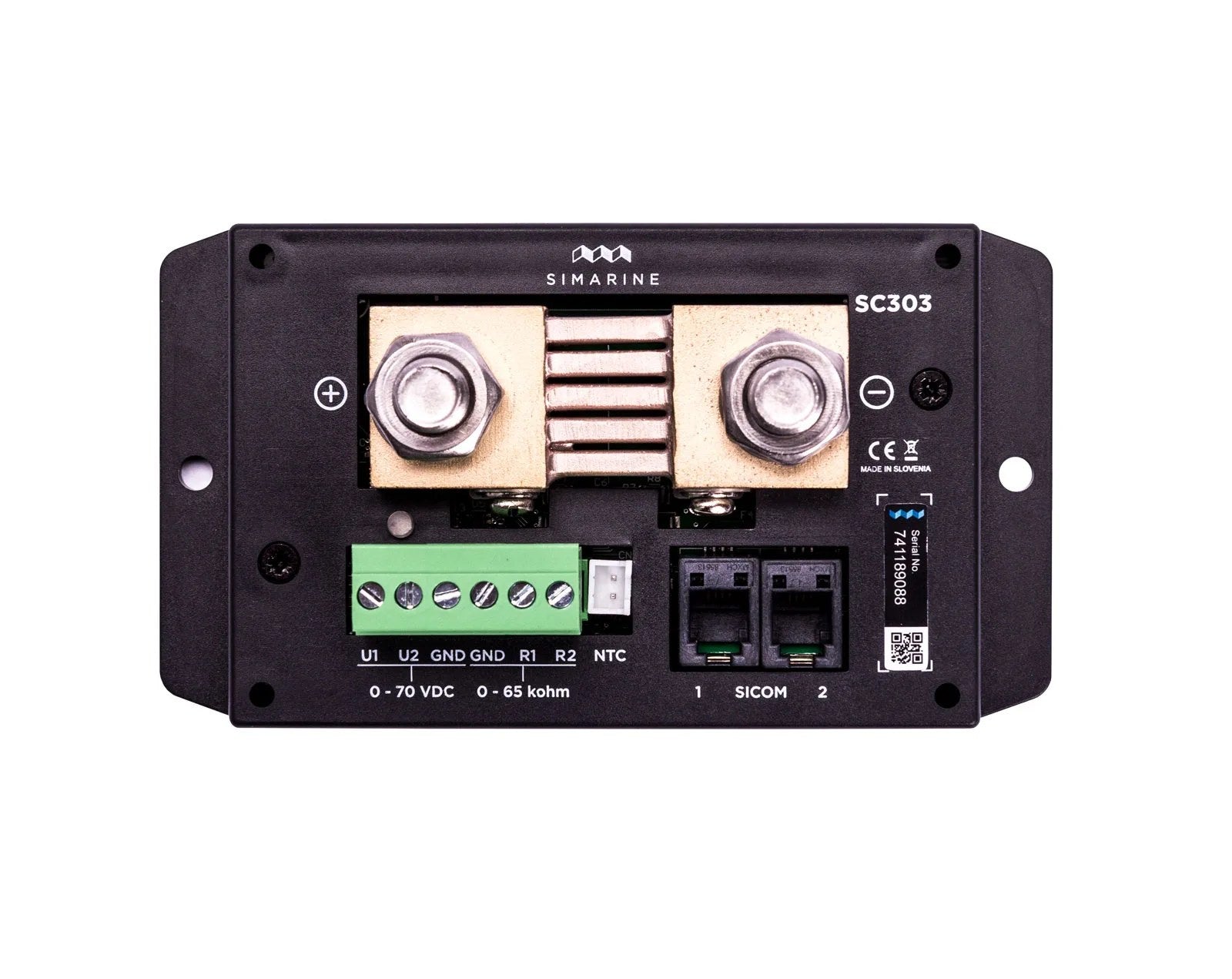

Simarine SC303 300 A Combo Shunt for PICO
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Simarine SC303 is a high-current combo shunt for the PICO battery monitoring system. It measures battery current from 0.01 A up to 300 A continuous with ±1% accuracy and 0.01 A resolution, sampling every 100 ms, and handles peaks of 400 A for under 5 minutes and 700 A for under 1 minute. That makes it the main battery shunt in most PICO installations.

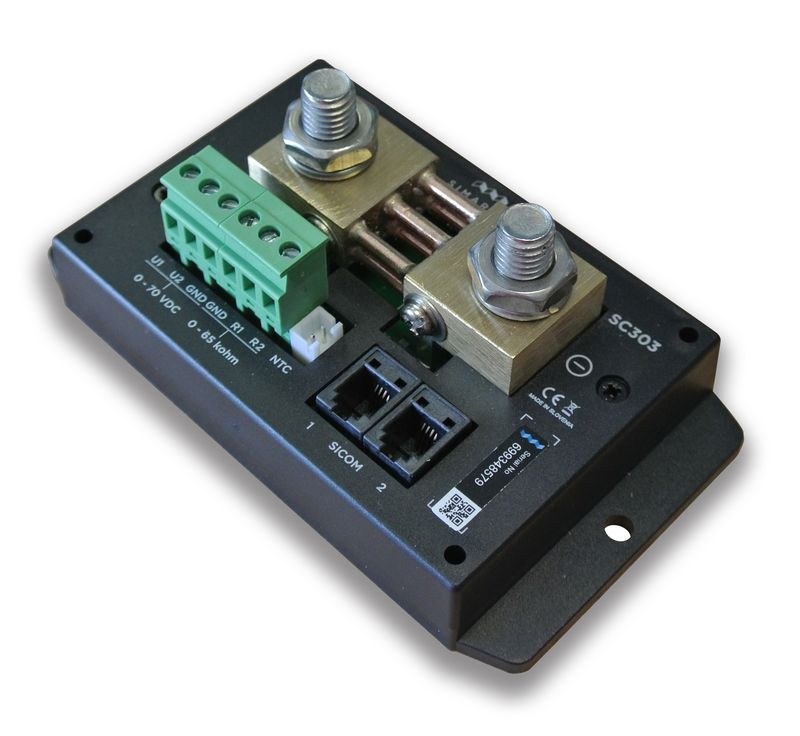

It is more than a shunt. Alongside the current measurement, the SC303 has 2 voltage inputs (0 to 75 V) for starter or auxiliary batteries, resistance inputs R1, R2 and a JST socket (0 to 65 kΩ) for tank senders, and an input for a Simarine NTC 10k temperature sensor. Voltage drop across the shunt is 37.5 mV at 300 A. It can be wired on the negative or the positive side of the battery and connects with M10 bolts.
The module runs from 6 to 35 V DC, draws about 1.2 mA and works from -20 to 70 °C. It measures 125 x 70 x 22 mm and links to the PICO display, or to other Simarine monitoring panels, over the SiCOM data bus. Simarine makes the SC303 in Slovenia and covers it with a 3-year warranty.
PRODUCT DETAILS
- 300 A continuous, 400 A under 5 min, 700 A under 1 min
- 0.01 A resolution, ±1% accuracy, 100 ms sampling
- 2 voltage inputs, 0 to 75 V
- 3 resistance inputs (R1, R2, JST), 0 to 65 kΩ
- NTC 10k temperature sensor input

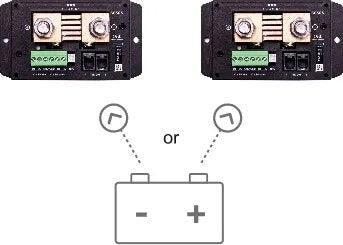

- Wire on the negative or positive side
- M10 bolt terminals
- SiCOM connection to PICO
- 6 to 35 V DC, 1.2 mA
- 3-year warranty, made in Slovenia
- SC303 combo shunt module
- SiCOM data cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Measurement
| Current range | 0.01 to 300 A |
| Accuracy | ±1% |
| Resolution | 0.01 A |
| Sampling | 100 ms |
| Continuous current | 300 A |
| Peak current, under 5 min | 400 A |
| Peak current, under 1 min | 700 A |
| Voltage drop | 37.5 mV at 300 A |
Inputs
| Voltage inputs | 2 x 0 to 75 V, ±0.3%, 1 mV resolution |
| Resistance inputs | 3 (R1, R2, JST), 0 to 65 kΩ, ±3% |
| Temperature input | NTC 10k, -13 to 80 °C, ±3% |
Connectivity
| Data bus | SiCOM |
| Compatible displays | Simarine PICO |
Electrical
| Supply voltage | 6 to 35 V DC |
| Consumption | 1.2 mA |
| Maximum voltage on terminals | 35 V |
| Wiring | Negative or positive side of the battery |
Physical
| Dimensions | 125 x 70 x 22 mm |
| Terminals | M10 bolts |
Environmental
| Operating temperature | -20 to 70 °C |
General
| Part number | SC303 |
| Warranty | 3 years |
| Country of origin | Slovenia |
