Simarine SCQ25 Quadro Shunt Module 4 x 25 A for PICO

£126.53
Tax included. Shipping calculated at checkout.
S003
Simarine SCQ25 quadro shunt: measures the current of 4 separate circuits up to 25 A each so the PICO can show what individual appliances or charge sources draw or supply.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

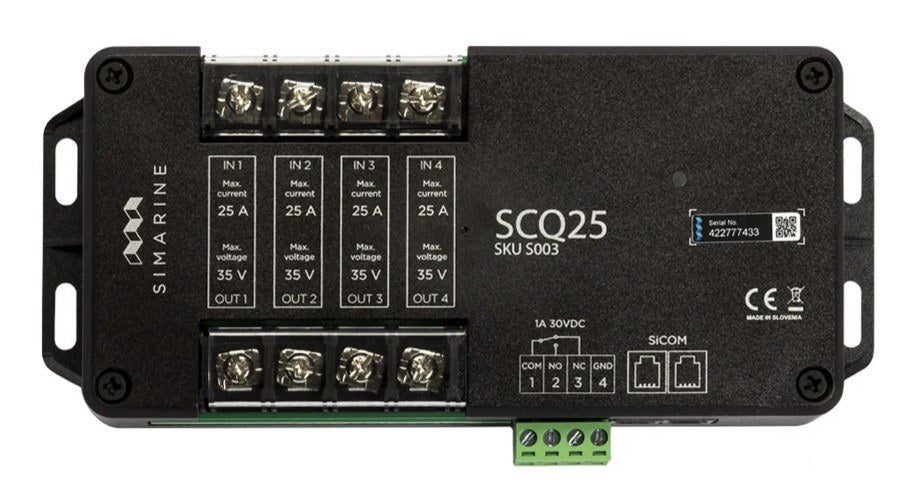

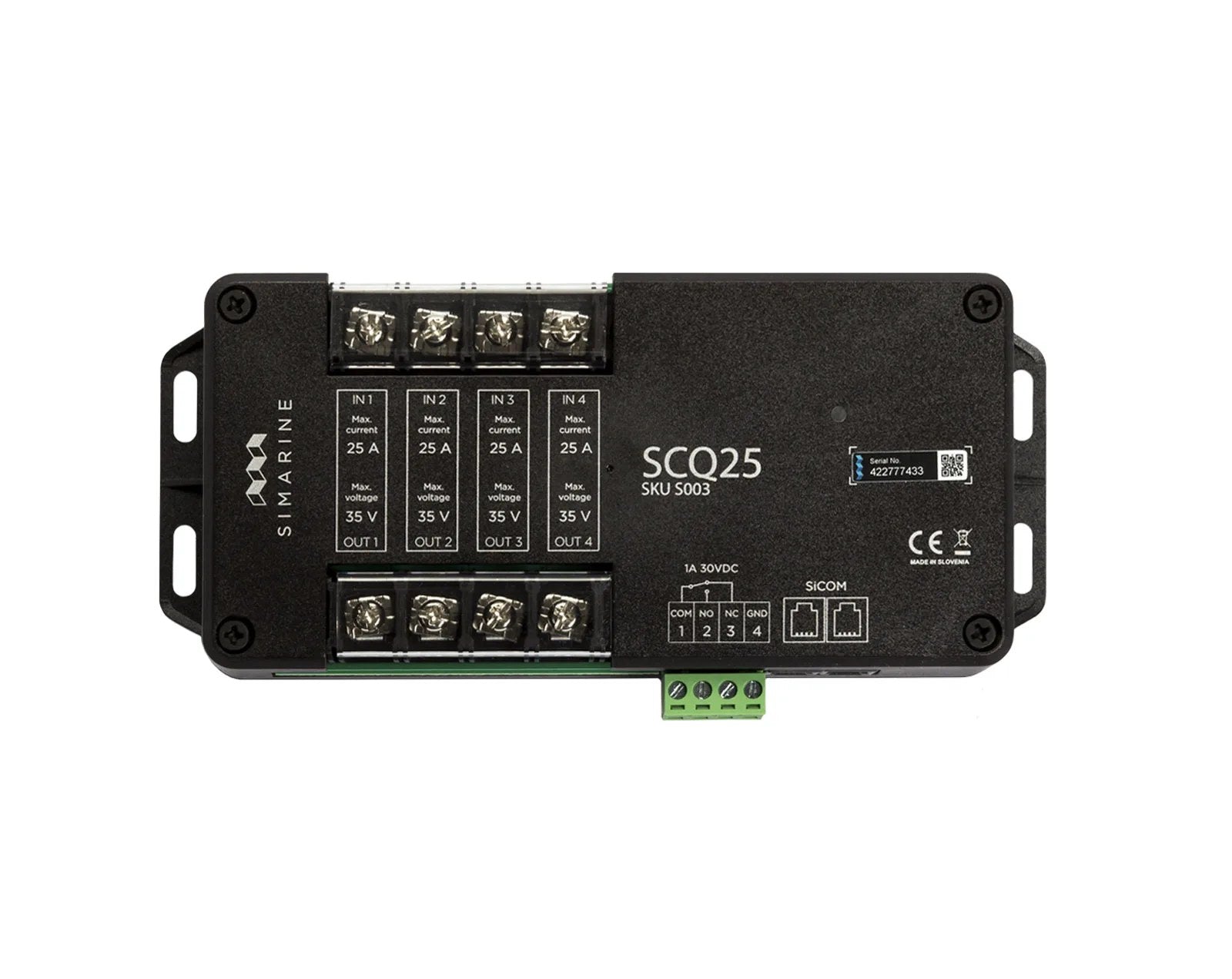

The Simarine SCQ25 is a quadro shunt module for the PICO monitoring system. It has 4 independent measuring channels, each rated at 25 A continuous and 35 A peak for under 1 minute, so instead of only seeing the total battery current you can see exactly what a fridge, heater, inverter, water pump or solar charger is drawing or supplying. Readings are taken every 100 ms with 0.01 A resolution and ±1% accuracy.

Each channel is wired in line with the circuit it measures, and the module can be installed on the negative or positive side. A built-in alarm relay rated 1 A at 12 V can be triggered by programmed conditions. Up to 5 quadro modules can be used for as many as 20 measured channels.

The module runs from 6 to 35 V DC with a consumption of around 2.5 mA, measures 183 x 91 x 34 mm and connects to the PICO display over the SiCOM data bus. Simarine makes the SCQ25 in Slovenia and covers it with a 3-year warranty.

PRODUCT DETAILS

  • 4 independent current channels, 25 A continuous each
  • 35 A peak per channel under 1 min
  • 0.01 A resolution, ±1% accuracy, 100 ms sampling
  • See consumption of individual appliances and charge sources
  • Negative or positive side installation
  • Alarm relay output, 1 A at 12 V
  • SiCOM connection to PICO
  • 6 to 35 V DC, 2.5 mA
  • 3-year warranty, made in Slovenia
  • SCQ25 quadro shunt module
  • SiCOM data cable

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Measurement

Channels4 independent current channels
Channel current25 A continuous, 35 A peak under 1 min
Range0.01 to 25 A per channel
Accuracy±1%
Resolution0.01 A
Sampling100 ms
Voltage drop30 mV

Electrical

Supply voltage6 to 35 V DC
Consumption2.5 mA
Maximum circuit voltage35 V DC
Alarm relay1 x output, 1 A at 12 V
WiringNegative or positive side

Connectivity

Data busSiCOM
Compatible displaysSimarine PICO

Physical

Dimensions183 x 91 x 34 mm

Environmental

Operating temperature-20 to 70 °C

General

Part numberS003
Warranty3 years
Country of originSlovenia

No videos available for this product.

What does the SCQ25 do?
It measures current on 4 separate circuits of up to 25 A each so the PICO can show what individual appliances or charge sources are doing.
Does it replace the main battery shunt?
No. The main battery bank is measured with an SC303 or SC503 combo shunt; quadro shunts add per-circuit monitoring.
How many quadro modules can I add?
Up to 5 quadro modules, giving up to 20 measured channels.
What warranty does it have?
Simarine products carry a 3-year warranty from the date of purchase.
