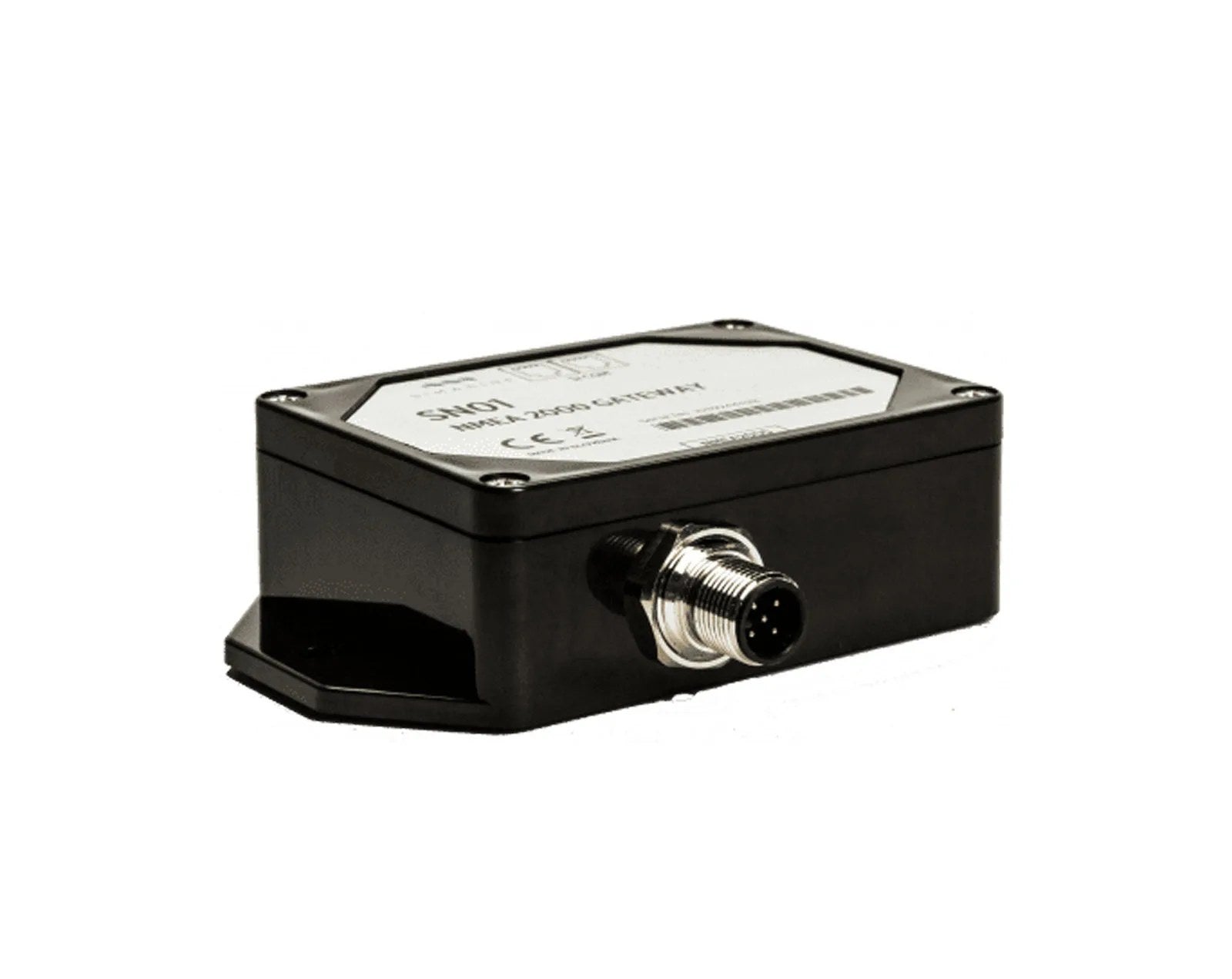

Simarine SN01 NMEA 2000 gateway module with NMEA 2000 connectorSimarine SN01 NMEA 2000 gateway module with NMEA 2000 connector

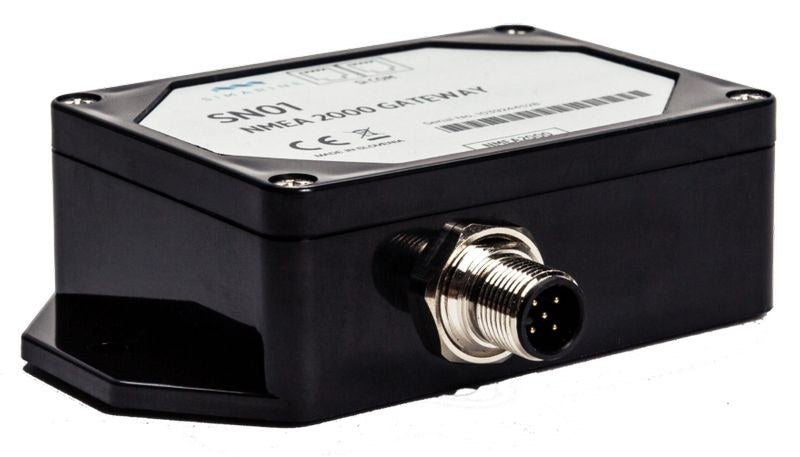

Simarine SN01 NMEA 2000 gateway module angled viewSimarine SN01 NMEA 2000 gateway module angled view

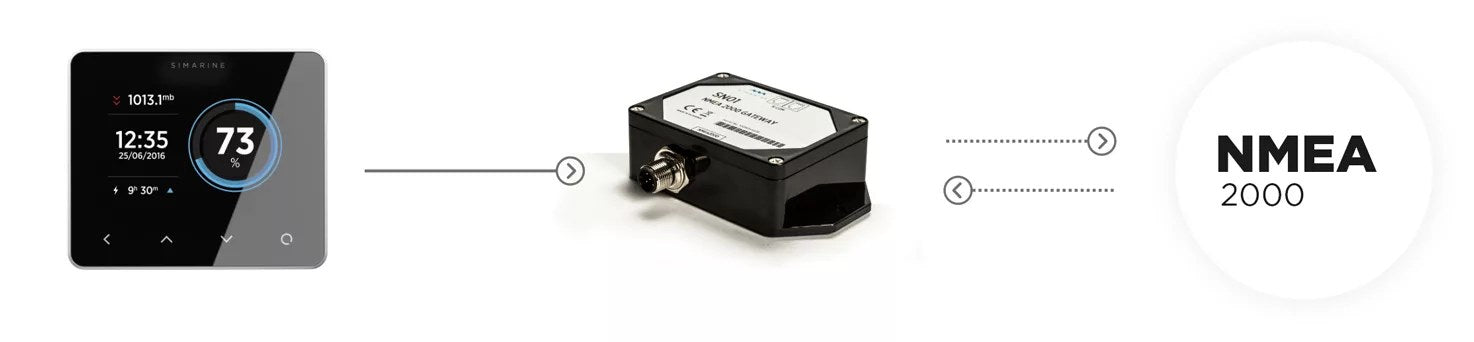

Diagram of a Simarine PICO connected through the SN01 gateway to an NMEA 2000 networkDiagram of a Simarine PICO connected through the SN01 gateway to an NMEA 2000 network
Simarine SN01 NMEA 2000 gateway module with NMEA 2000 connector
Simarine SN01 NMEA 2000 gateway module angled view
Diagram of a Simarine PICO connected through the SN01 gateway to an NMEA 2000 network

Simarine

Simarine SN01 NMEA 2000 Gateway for PICO

£160.03
Tax included. Shipping calculated at checkout.
SN01
Simarine SN01 gateway that sends PICO battery, tank, attitude and pressure data onto an NMEA 2000 network so it can be shown on chartplotters and MFDs.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Simarine SN01 is an NMEA 2000 gateway for the PICO monitoring system. It takes the data your PICO and its modules collect, including battery status, DC detailed status, tank levels, inclinometer attitude, temperature and air pressure, and transmits it onto the boat's NMEA 2000 backbone so it can be shown on compatible chartplotters and multifunction displays.

Transmitted messages include PGN 127508 Battery Status, 127506 DC Detailed Status, 127505 Fluid Level, 127257 Attitude, 130310 Environmental Parameters, 130314 Actual Pressure and 127502 Switch Bank Control, alongside the standard address claim and product information messages. The module has one NMEA 2000 backbone connection and two SiCOM ports for linking into the PICO module chain.

The SN01 runs from 6 to 35 V DC, draws about 0.6 mA and works from -20 to 70 °C. It measures 111.8 x 77.5 x 32.1 mm and mounts with two screws. Simarine makes it in Slovenia and covers it with a 3-year warranty.

PRODUCT DETAILS

  • Sends PICO data onto NMEA 2000
  • Battery Status, DC Detailed Status and Fluid Level PGNs
  • Attitude, Environmental Parameters and Actual Pressure PGNs
  • 1 NMEA 2000 backbone connection and 2 SiCOM ports
  • 6 to 35 V DC, about 0.6 mA
  • 111.8 x 77.5 x 32.1 mm
  • 3-year warranty, made in Slovenia
  • SN01 NMEA 2000 gateway module
  • SiCOM data cable

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

NMEA 2000 PGNs

PGN 59904ISO Request (Receive)
PGN 60928ISO Address Claim (Receive and transmit)
PGN 126996Product Information (Transmit)
PGN 127257Attitude (Transmit)
PGN 127502Switch Bank Control (Transmit)
PGN 127505Fluid Level (Transmit)
PGN 127506DC Detailed Status (Transmit)
PGN 127508Battery Status (Transmit)
PGN 130310Environmental Parameters (Transmit)
PGN 130314Actual Pressure (Transmit)

Connectivity

NMEA 20001 backbone connection
SiCOM2 ports
Compatible displaysSimarine PICO

Electrical

Supply voltage6 to 35 V DC
Consumption0.6 mA

Physical

Dimensions111.8 x 77.52 x 32.11 mm
Mounting2 screws

Environmental

Operating temperature-20 to 70 °C

General

Part numberSN01
Warranty3 years
Country of originSlovenia

No videos available for this product.

What does the SN01 do?
It transmits data from the PICO system onto an NMEA 2000 network so battery, tank and other readings can be shown on chartplotters and MFDs.
Which data is sent?
Battery Status, DC Detailed Status, Fluid Level, Attitude, Environmental Parameters, Actual Pressure and Switch Bank Control PGNs, as listed in the Simarine manual.
Do I still need a PICO display?
Yes. The SN01 is a PICO extension module and works as part of a PICO system.
Will my plotter show all the data?
That depends on which PGNs your display supports. Check your plotter documentation for the PGNs listed.
What warranty does it have?
Simarine products carry a 3-year warranty from the date of purchase.
