Simarine ST107 Tank Level and Voltage Module for PICO
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

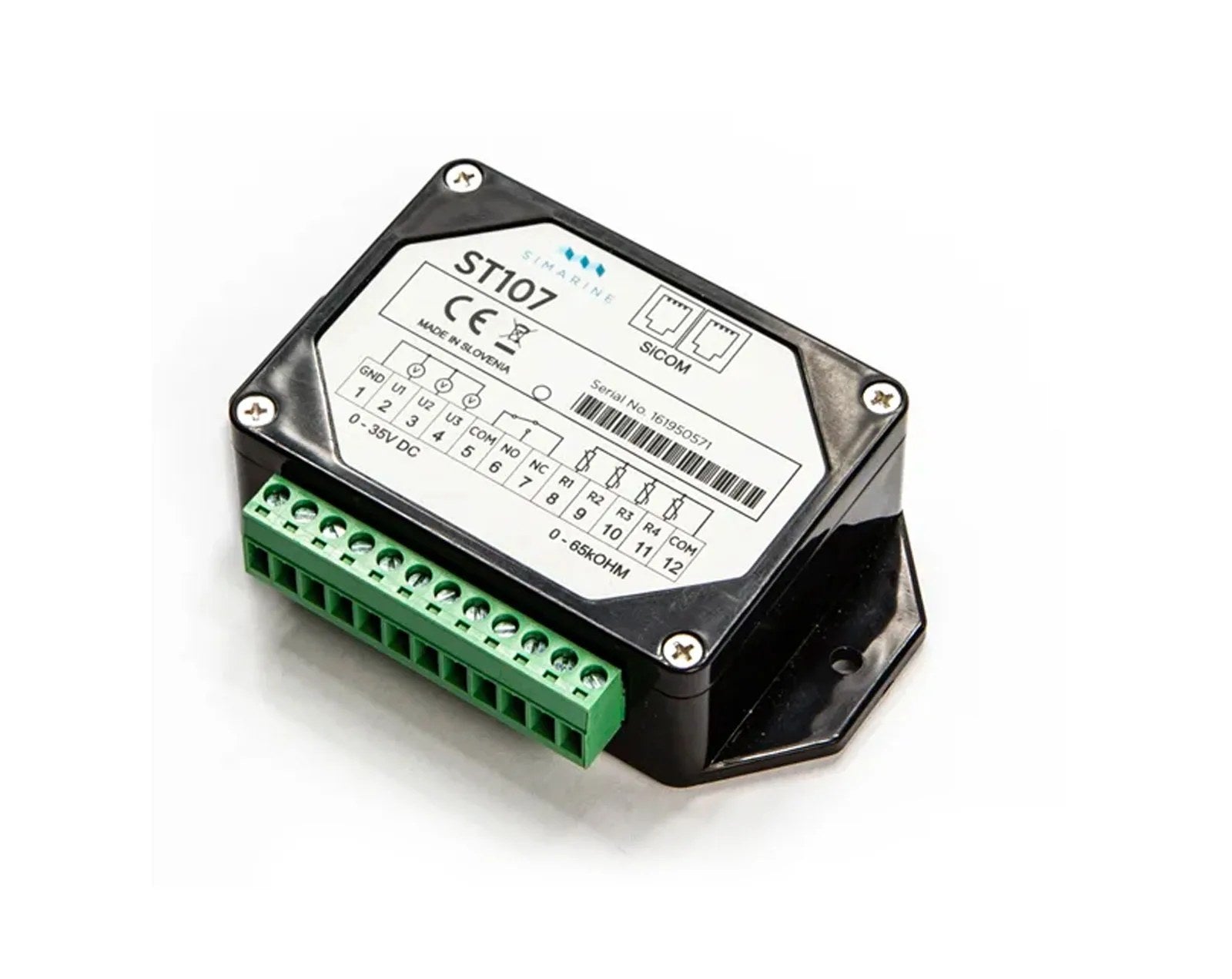

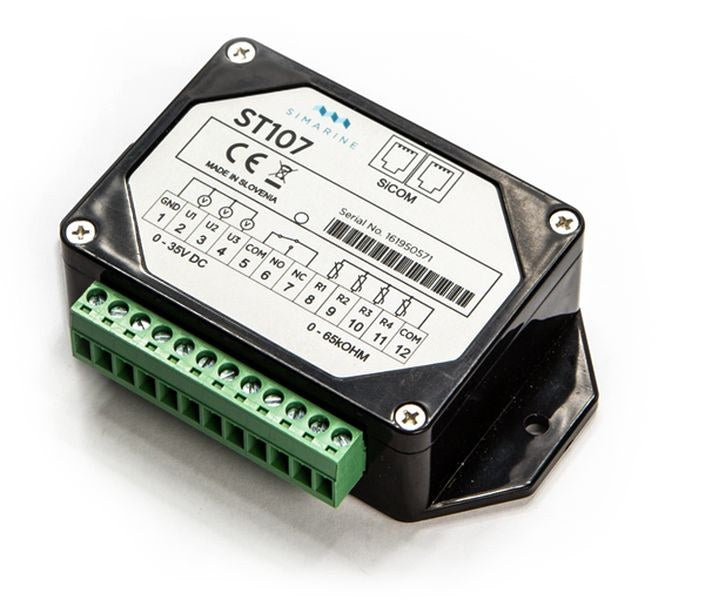

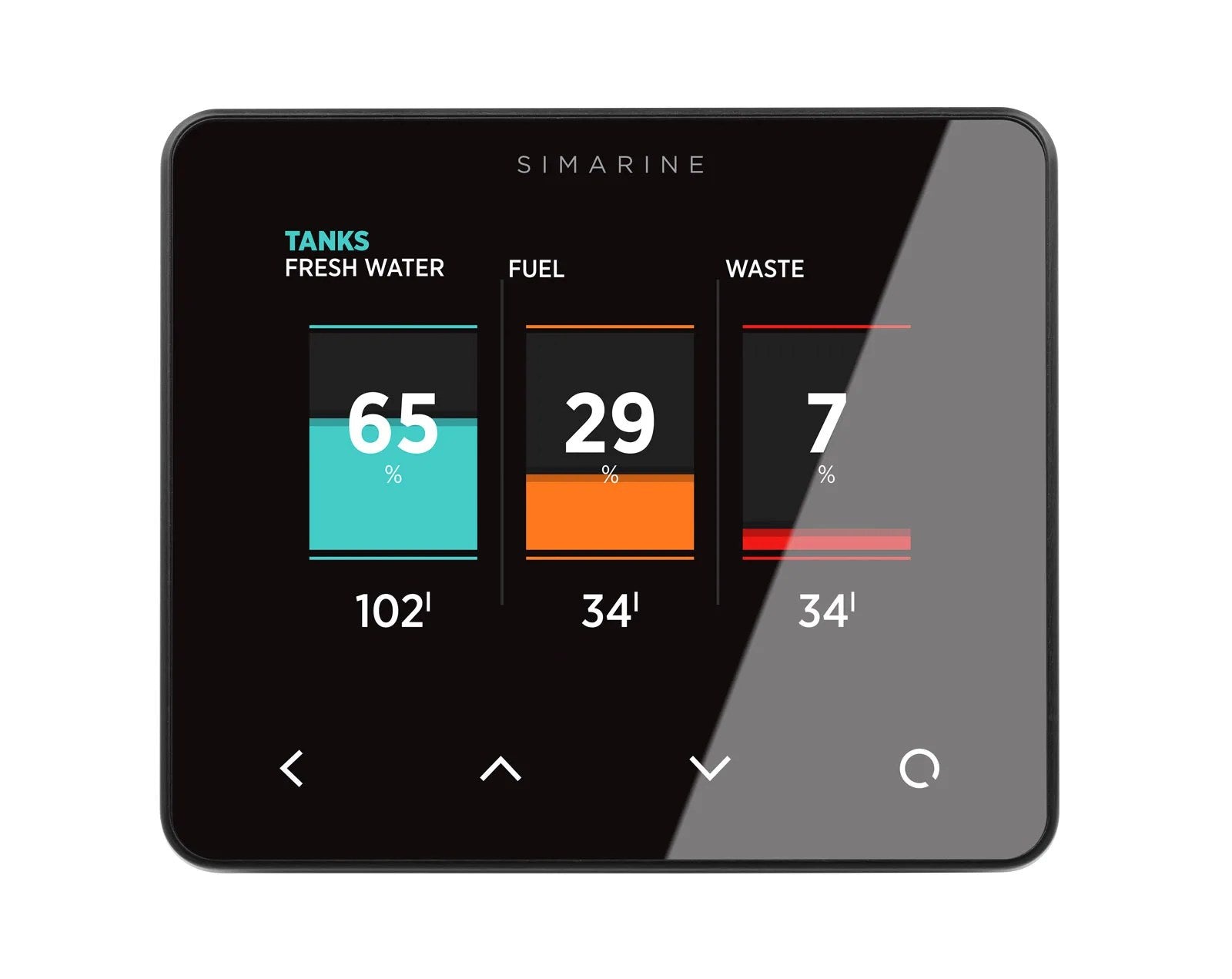

The Simarine ST107 is a tank level and voltage module for the PICO monitoring system. It brings 4 resistance inputs and 3 voltage inputs onto the SiCOM bus, so the PICO can show fresh water, waste, fuel or other tank levels from standard resistive senders and monitor the voltage of extra starter or auxiliary batteries.
The resistance inputs read 0 to 65 kΩ with ±3% accuracy and the voltage inputs read 0 to 75 V with 1 mV resolution and ±0.3% accuracy, all sampled every 100 ms. Tanks are set up and calibrated on the PICO, and the ST107 also has an alarm output that can be programmed to switch on conditions such as a low tank or low voltage. It works with Simarine STR1 radar tank senders as well as conventional resistive senders.
The module runs from 6 to 35 V DC, draws around 2.5 mA and works from -20 to 70 °C. It measures 112 x 72 x 31 mm and connects to the PICO or other Simarine monitoring displays with the SiCOM data cable. Simarine makes the ST107 in Slovenia and covers it with a 3-year warranty.
PRODUCT DETAILS
- 4 resistance inputs, 0 to 65 kΩ, for tank senders
- 3 voltage inputs, 0 to 75 V, 1 mV resolution
- 100 ms sampling
- Programmable alarm output
- Works with standard resistive senders and the Simarine STR1 radar sender
- SiCOM connection to PICO
- 6 to 35 V DC, 2.5 mA
- 112 x 72 x 31 mm
- 3-year warranty, made in Slovenia
- ST107 tank level and voltage module

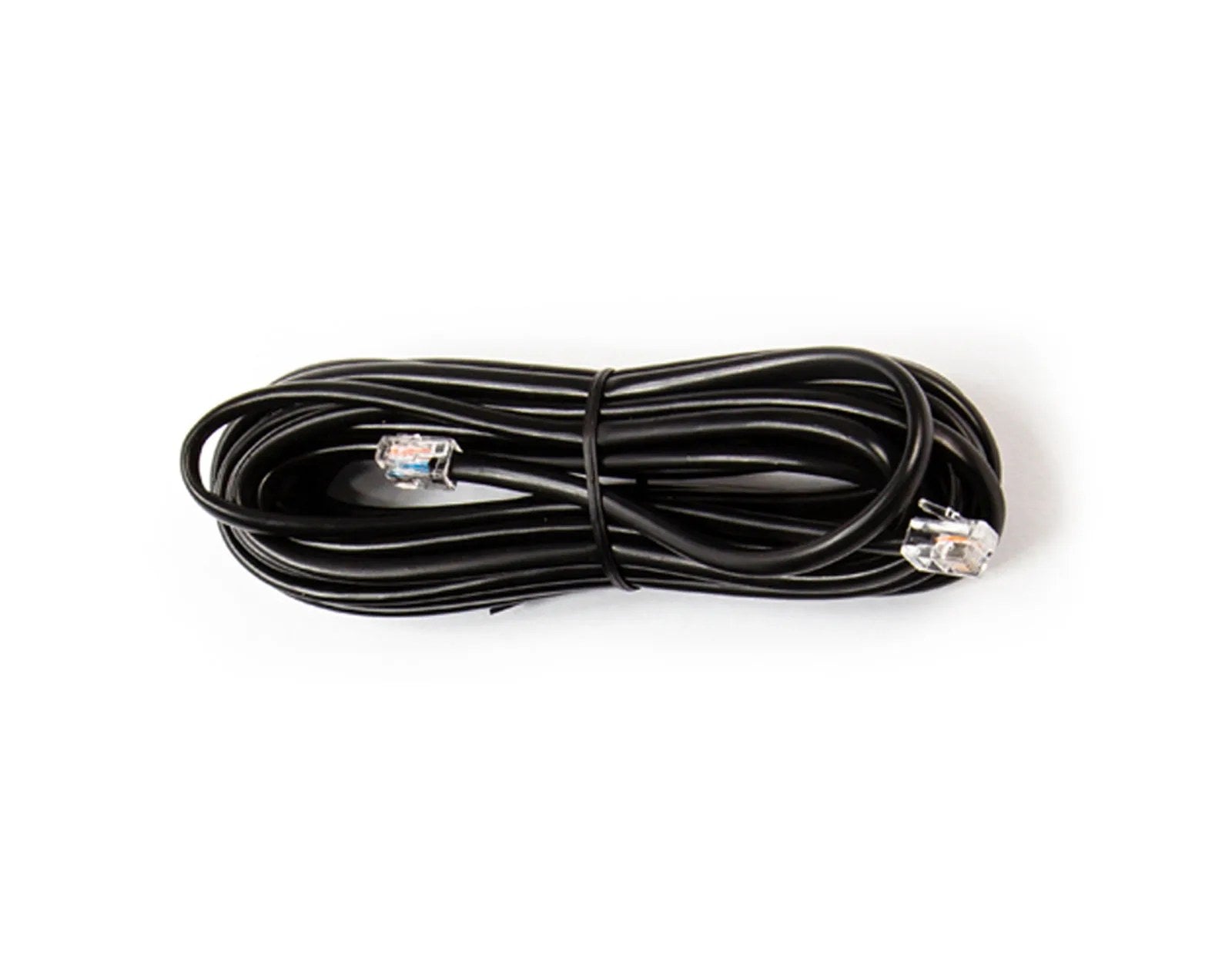

- SiCOM data cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Inputs
| Resistance inputs | 4 x 0 to 65 kΩ, ±3% |
| Voltage inputs | 3 x 0 to 75 V, 1 mV resolution, ±0.3% |
| Sampling | 100 ms |
Outputs
| Alarm | 1 programmable alarm output |
Connectivity
| Data bus | SiCOM |
| Compatible displays | Simarine PICO |
Electrical
| Supply voltage | 6 to 35 V DC |
| Consumption | 2.5 mA |
Physical
| Dimensions | 112 x 72 x 31 mm |
Environmental
| Operating temperature | -20 to 70 °C |
General
| Part number | T001 |
| Warranty | 3 years |
| Country of origin | Slovenia |
