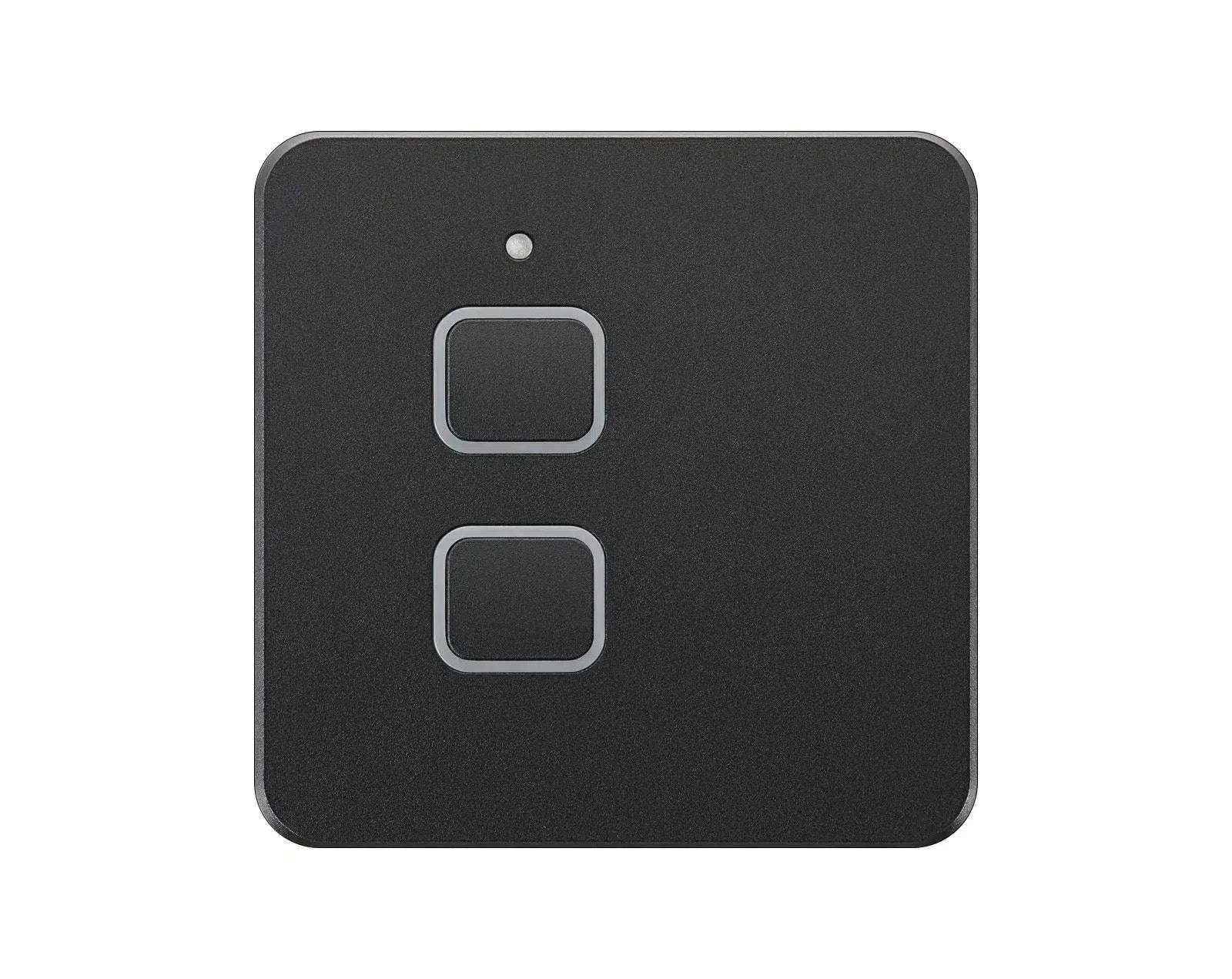

Simarine two button light switch with dimmer in black anodised aluminium

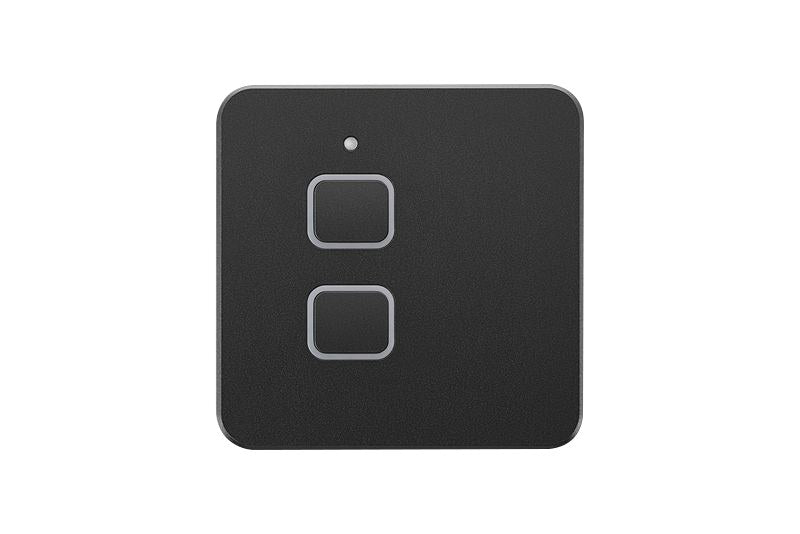

Black Simarine light switch front view with two buttons and status LED

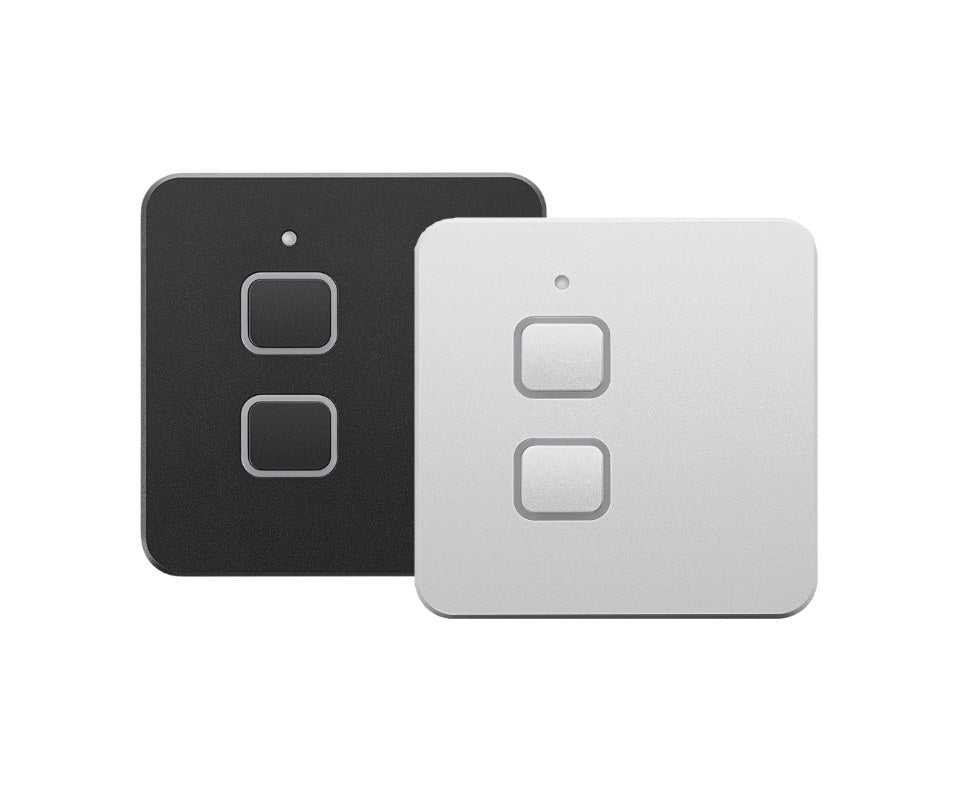

Simarine light switches in black and silver finishes side by side

Simarine

Simarine Two Button Light Switch with Dimmer Black Aluminium

£114.92
Tax included. Shipping calculated at checkout.
N-LS-2B
Simarine 12 V double light switch in black anodised aluminium with two independent PWM dimming outputs of 5 A each and SiCOM multiway switching to control the same light from several places.
✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Simarine light switch is a 12 V DC double switch in black anodised aluminium with built-in dimmers. Its two buttons each control their own output of up to 5 A, so one switch can run two separate LED lights or other 12 V devices, or the two outputs can be paralleled for up to 10 A. LED dimming uses 12 V pulse width modulation at 400 Hz.

Each switch can be set to PWM dimming, simple on/off or push button mode. Several switches can control the same light from different places: they talk to each other over the Simarine SiCOM bus, and only one of them needs to be wired to the light itself. Addresses are set with two 16-position rotary switches on the back, which keeps multiway setups simple for cabins, saloons, campervans and motorhomes.

The switch accepts 0 to 16 V DC with a single common supply for both buttons, draws only 5 to 20 mA with no load, and measures 60 x 60 x 42 mm. It is also offered in black and silver to match other Simarine panels. Simarine makes it in Slovenia and covers it with a 3-year warranty.

PRODUCT DETAILS

  • Two independent buttons and outputs, 5 A each
  • Outputs can be paralleled for 10 A
  • Built-in PWM dimming at 12 V, 400 Hz
  • PWM, on/off or push button mode per output
  • Multiway switching over SiCOM: control one light from several switches
  • Address set with two 16-position rotary switches
  • Black anodised aluminium, 60 x 60 x 42 mm
  • 0 to 16 V DC, 5 to 20 mA no-load
  • 3-year warranty, made in Slovenia
  • Simarine two button light switch

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

No compatible products found.

Electrical

Supply voltage0 to 16 V DC
Outputs2 x 5 A, 10 A with outputs in parallel
DimmingPWM, 12 V, 400 Hz
No-load consumption5 to 20 mA

Functions

ModesPWM dimming, on/off, push button
Multiway switchingVia SiCOM, only one switch needs to be connected to the load
AddressingTwo 16-position rotary switches

Physical

Dimensions60 x 60 x 42 mm
FinishBlack anodised aluminium

General

Part numberN-LS-2B
Warranty3 years
Country of originSlovenia

No videos available for this product.

Can I control one light from two places?
Yes. Switches communicate over SiCOM so several can control the same light, and only one needs to be connected to the light.
Can it dim LED lights?
Yes. Each output has PWM dimming at 12 V, 400 Hz, intended for 12 V LEDs.
What load can it switch?
Up to 5 A per output, or 10 A with both outputs in parallel.
Is it suitable for 24 V?
No. Simarine specifies 0 to 16 V DC, so it is for 12 V systems.
What warranty does it have?
Simarine products carry a 3-year warranty from the date of purchase.
