Simarine
Simarine VIA Van Control Kit UK with Control Panel and SPDU52 Distribution Unit
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

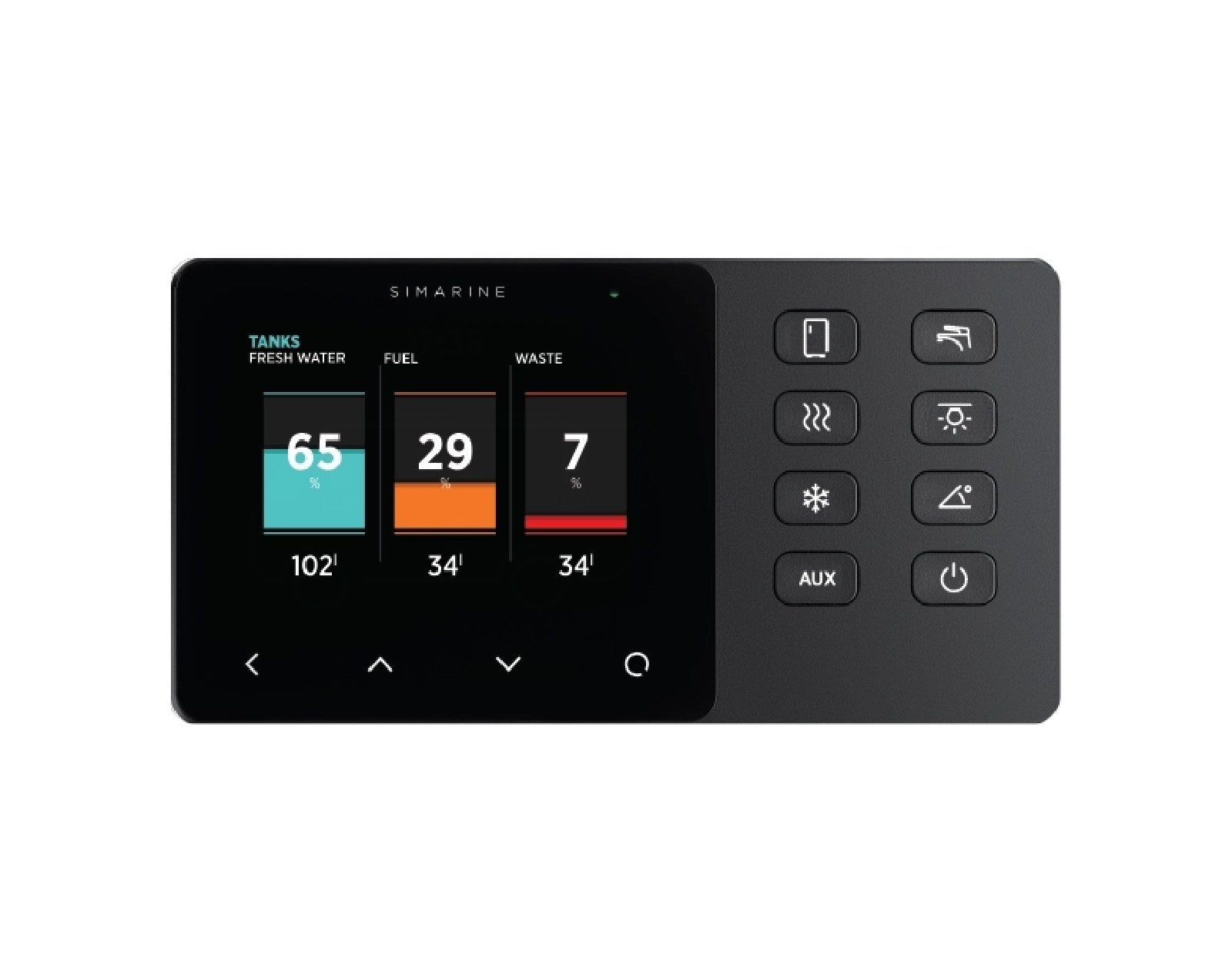

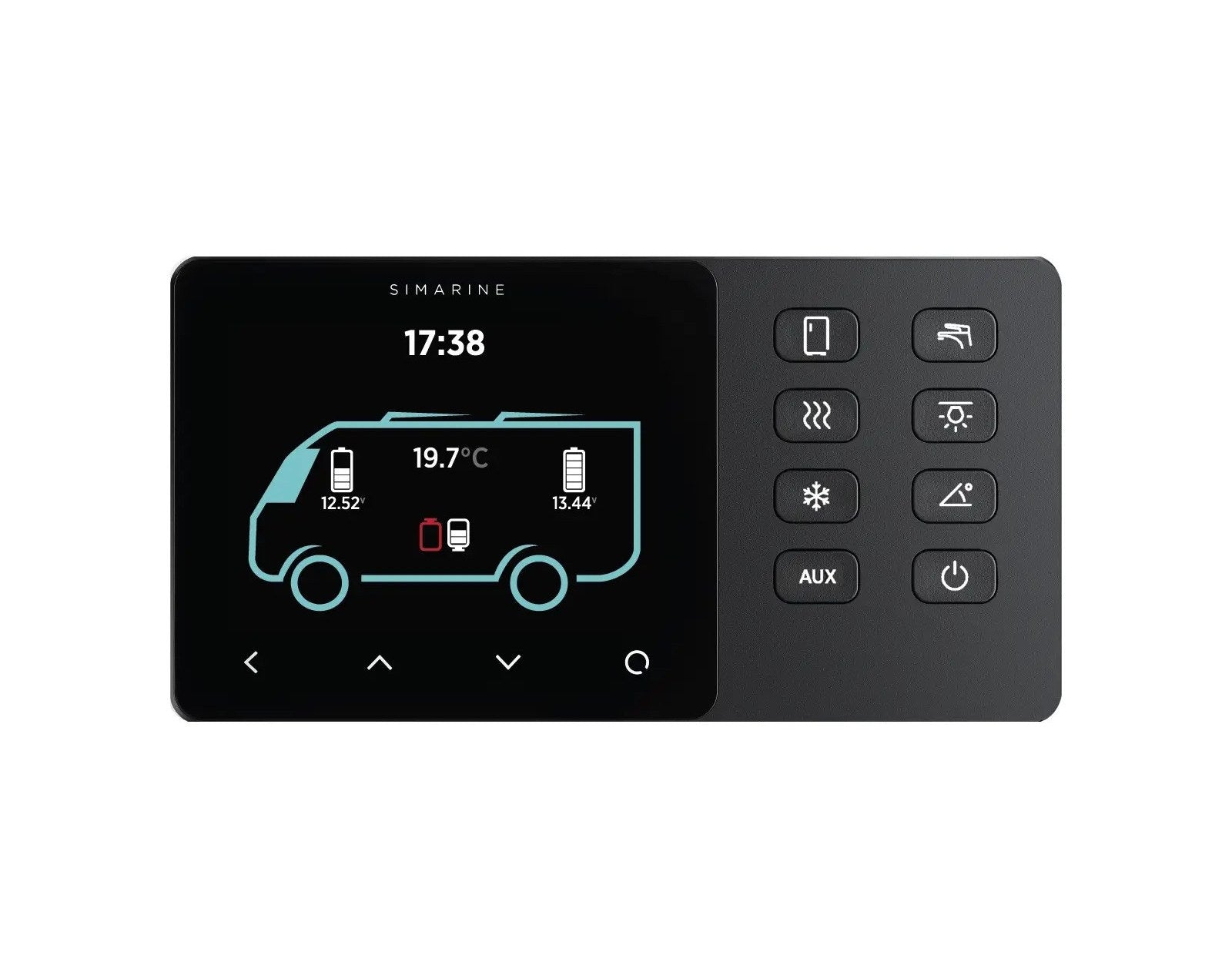

The Simarine VIA is a digital control system for campervans, motorhomes and vans. This UK configuration kit contains the VIA control panel and the SPDU52 power distribution unit. The 157 x 82 mm, 5.6 mm thin glass panel brings battery monitoring, tank levels and the van's 12 V circuits together in one place, replacing a row of separate switches and gauges.

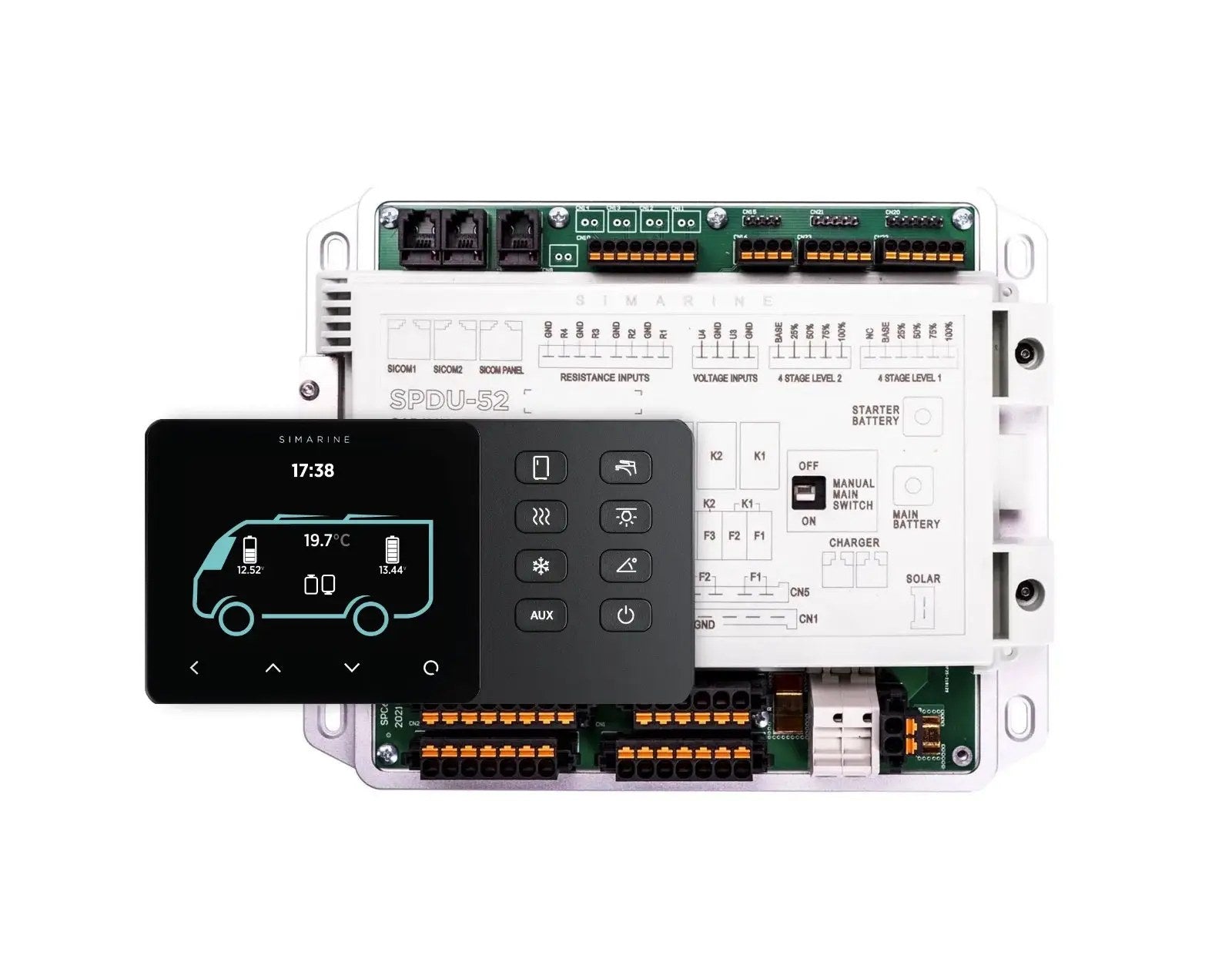

The SPDU52 distributes power to 6 switching channels across 12 fuses and has manual override so circuits can still be switched if needed. It measures current on the solar (0 to 16 A), charger (0 to 40 A), main (0 to 50 A) and starter battery (0 to 50 A) channels, so the panel shows exactly where energy comes from and where it goes.
The system can grow with Simarine modules to monitor up to 6 batteries, 24 shunts, 10 temperature sensors, 14 tanks and an inclinometer. The panel runs from 6 to 22 V DC and the SPDU52 from 8 to 22 V DC. Simarine makes VIA in Slovenia and covers it with a 3-year warranty.
PRODUCT DETAILS
- VIA control panel plus SPDU52 power distribution unit

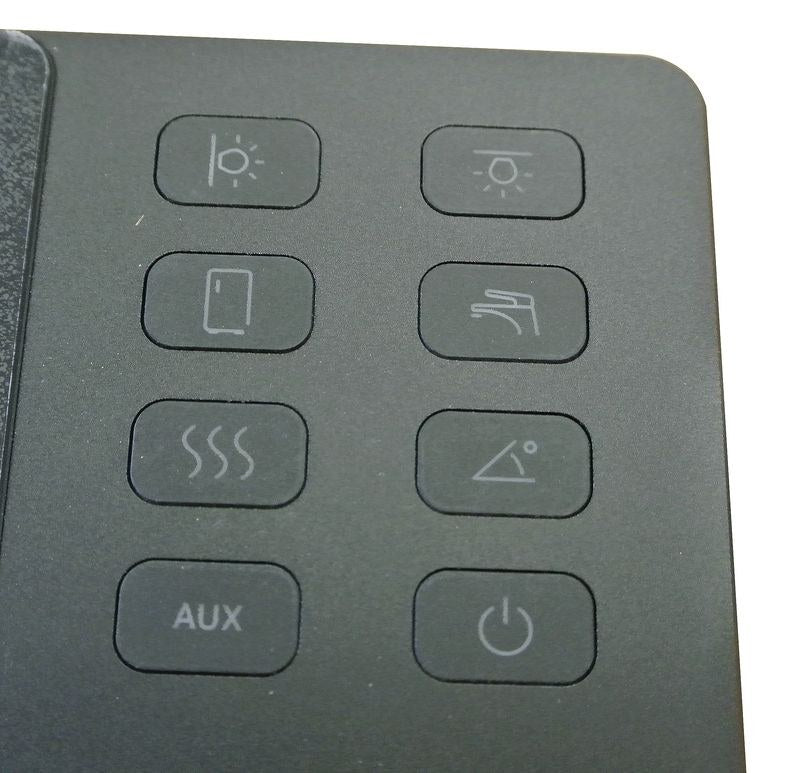

- UK configuration
- Thin glass panel, 157.1 x 82.1 x 5.6 mm
- 6 switching channels across 12 fuses with manual override
- Current measurement: solar 0-16 A, charger 0-40 A, main 0-50 A, starter 0-50 A
- Expandable to 6 batteries, 24 shunts, 10 temperature sensors, 14 tanks and an inclinometer
- 3-year warranty, made in Slovenia
- VIA control panel
- SPDU52 power distribution unit
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
No compatible products found.
Control panel
| Supply voltage | 6 to 22 V DC |
| Dimensions | 157.10 x 82.10 x 5.60 mm |
| Consumption | 100 / 40 / 22 / 5 mA depending on mode |
SPDU52 distribution unit
| Supply voltage | 8 to 22 V DC |
| Consumption | 15 mA operating, 0.25 mA standby |
| Switching | 6 channels across 12 fuses, manual override |
| Current measurement | Solar 0-16 A, charger 0-40 A, main 0-50 A, starter 0-50 A |
System capacity
| Expansion | Up to 6 batteries, 24 shunts, 10 temperature sensors, 14 tanks, 1 inclinometer |
Kit
| Contents | VIA control panel and SPDU52 |
| Configuration | UK |
General
| Part number | VS-C004 |
| Warranty | 3 years |
| Country of origin | Slovenia |
