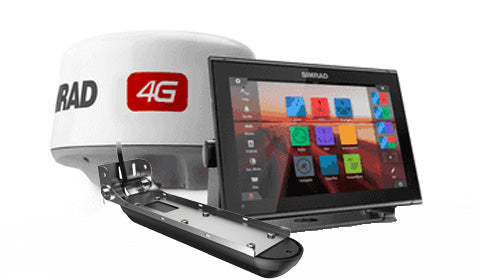

Simrad GO12 XSE with 3-in-1 Transducer and 4G Radar
12-inch chartplotter and radar display with Broadband 4G™ radar and Active Imaging 3-in-1 transducer.
The Simrad GO12 XSE chartplotter navigation display is a perfect way to expand the capabilities of sportboats, cruisers, and smaller center consoles with plug-and-play support for Simrad Broadband Radar™ and Halo™ Pulse Compression radar systems. Behind a super-bright, multi-touch widescreen display lies a built-in GPS receiver, wireless connectivity, and industry standard NMEA 2000® networking. Connect with smartphones and tablets, control your onboard sound system, monitor engine data, and choose from an array of built-in sonar technology to cruise with confidence and find fish like a pro.
B&G, Simrad 4 Pin Power Cable
£35.46 ex-VAT
In the Box
1 Display unit
2 Panel mounting kit • Gasket • Mounting screws (4x #4 x 3/4" PN HD SS)
3 Sun cover
4 Cable Combined power and NMEA 2000 cable - 5" unit Power cable - 7", 9" and 12" units
5 Fuseholder and fuse (3 A, ATC-blade)
6 Protective caps 2x - 5" unit 3x - 7", 9" and 12" units
7 Documentation package • Installation manual • Quick guide • Mounting template
8 A: Bracket mounting kit - 5" unit • Quick Release Bracket • Mounting screws (4x #10 x 3/4" PN HD SS)
B: Bracket mounting kit - 7" and 9" units • U bracket (plastic) • Mounting screws (4x #10 x 3/4" PN HD SS) • Bracket knobs (2x)
C: Bracket mounting kit - 12" unit • U bracket (metal) • Mounting screws (4x #10 x 3/4" PN HD SS) • Bracket knobs (2x)
GO XSE 5 Dimensions
Product Width 152mm / 5.98″
Product Height 120mm / 4.72″
Product Depth 58mm / 2.28″
GO XSE 7 Dimensions
Product Width 197mm / 7.76″
Product Height 141mm / 5.56″
Product Depth 74.7mm / 2.94″
GO XSE 9 Dimensions
Product Width 242mm / 9.52″
Product Height 170mm / 6.69″
Product Depth 79mm / 3.11″
GO XSE 12 Dimensions
Product Width 310mm / 12.20″
Product Height 219.1mm / 8.63″
Product Depth 74.7mm / 2.94″
B&G, Lowrance, Simrad SC20 Mast mount kit for Broadband Radar
£293.33 ex-VAT
B&G, Lowrance, Simrad RI10 - Radar Interface Junction Box for Broadband Radars
.jpg)
B&G, Lowrance, Simrad Broadband Radar Scanner connection cable - 10 m (33 ft)
.jpg)
B&G, Lowrance, Simrad Broadband Radar Scanner connection cable - 20 m (66 ft)
£139.63 ex-VAT
.jpg)
B&G, Lowrance, Simrad Broadband Radar Scanner connection cable - 30 m (98 ft)
£181.29 ex-VAT
In the Box
1. 3G or 4G Broadband Radar
2. Radar interconnection cable
Lowrance 10 meter
B&G and Simrad 20 meter
3. Option heading sensor required for MARPA and chart overlay (not included)
4. RI10 Radar interface box
5. Ethernet cable: shipped with 1.8 m (6 ft)
6. Display: Simrad NSO, NSE or NSS / B&G Zeus / Lowrance HDS (not included).
7. SimNet or NMEA2000 data network (not included)
Dimensions for
B&G 3G and 4G
Lowrance 3G and 4G
Simrad 3G and 4G
Underside Dimensions
A. Cable entry area
B. Cable retention channel
C. Bolt holes x 4 M8 x 30 mm
D. Breather
RI 10 Dimensions
Radar interface box
