Simrad GO9 XSE TotalScan, Europe South CMap MaxN

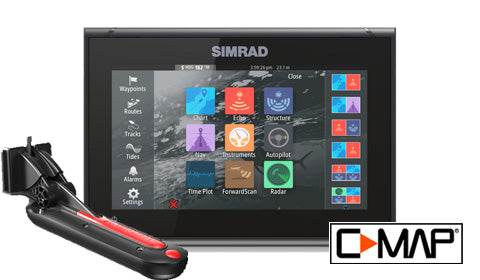

Simrad GO9 XSE Multi-function display with built in Echosounder, GPS and Wi-Fi. Super-bright, 9 inch multi-touch widescreen display with NMEA 2000 and radar interface. Includes TotalScan transducer. Includes an SD card with C-MAP chart of southern Europe that offers excellent coastal charting with tidal data, harbor info, high-def contours, Active Captain information and C-MAP Easy Routing™ and other features.
B&G, Lowrance, Simrad Bracket Knobs
£10.99 ex-VAT
B&G, Simrad 4 Pin Power Cable
£35.46 ex-VAT
Simrad GO9 and B&G Vulcan 9 Dash mount kit
£16.13 ex-VAT
Simrad GO9 and B&G Vulcan 9 Replacement bezel
£12.46 ex-VAT
Simrad GO9, NSS7 evo3 and B&G Vulcan 9, Zeus3 7 Gimbal Bracket
£24.19 ex-VAT
In the Box
1 Display unit
2 Panel mounting kit • Gasket • Mounting screws (4x #4 x 3/4" PN HD SS)
3 Sun cover
4 Cable Combined power and NMEA 2000 cable - 5" unit Power cable - 7", 9" and 12" units
5 Fuseholder and fuse (3 A, ATC-blade)
6 Protective caps 2x - 5" unit 3x - 7", 9" and 12" units
7 Documentation package • Installation manual • Quick guide • Mounting template
8 A: Bracket mounting kit - 5" unit • Quick Release Bracket • Mounting screws (4x #10 x 3/4" PN HD SS)
B: Bracket mounting kit - 7" and 9" units • U bracket (plastic) • Mounting screws (4x #10 x 3/4" PN HD SS) • Bracket knobs (2x)
C: Bracket mounting kit - 12" unit • U bracket (metal) • Mounting screws (4x #10 x 3/4" PN HD SS) • Bracket knobs (2x)
GO XSE 5 Dimensions
Product Width 152mm / 5.98″
Product Height 120mm / 4.72″
Product Depth 58mm / 2.28″
GO XSE 7 Dimensions
Product Width 197mm / 7.76″
Product Height 141mm / 5.56″
Product Depth 74.7mm / 2.94″
GO XSE 9 Dimensions
Product Width 242mm / 9.52″
Product Height 170mm / 6.69″
Product Depth 79mm / 3.11″
GO XSE 12 Dimensions
Product Width 310mm / 12.20″
Product Height 219.1mm / 8.63″
Product Depth 74.7mm / 2.94″
