Simrad NSO evo2 19 Inch Glass Bridge Monitor Bundle, No Charts Simrad NSO evo2 19 Inch Glass Bridge Monitor Bundle, No Charts
Simrad NSO evo2 19 Inch Glass Bridge Monitor Bundle, No Charts
Discontinued

This product has been discontinued by Simrad and is no longer available to buy.

Not sure what replaces it? Talk to us.

Contact HME

or call us on +442380455129

Simrad

Simrad NSO evo2 19 Inch Glass Bridge Monitor Bundle, No Charts

000-13566-004

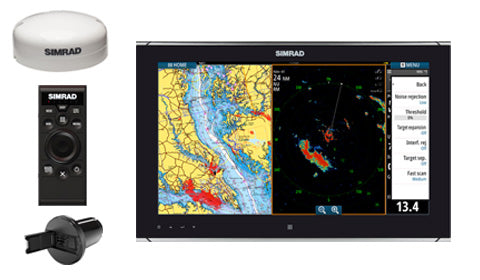

This Simrad NSO evo2 19-inch glass-helm bundle pairs the black-box NSO evo2 marine processor with a single Simrad MO19-T touch monitor, an OP50 controller, an MI10 chart card reader and a GS25 GPS antenna. Dual quad-core processing drives the Full HD touchscreen with the response needed for charts, radar and sonar. Three Ethernet ports, NMEA 2000 and NMEA 0183 give wide integration. No detailed charts included.

Description

This Simrad NSO evo2 system pairs the NSO evo2 marine processor with a single Simrad MO19-T 19-inch Full HD multi-touch monitor for a clean glass-bridge helm. At its core sits a dual iMX61 quad-core processor driving an integrated multifunction display for charting, echosounder, radar, autopilot and entertainment, with the monitor giving fast, fingertip touch control of every function.

\n

Built as a distributed black-box system, the processor can run up to two independent monitors and integrates across the vessel through three Ethernet ports and NMEA 2000. The pack ships with the OP50 controller for keypad operation, an MI10 card reader and a GS25 GPS antenna for accurate position and speed. A worldwide basemap is pre-loaded; no detailed cartography is included, so add a C-MAP or Navionics chart card to suit your cruising area.

PRODUCT DETAILS

  • NSO evo2 black-box processor with a single MO19-T 19-inch touch monitor
  • Dual quad-core processing for fast, smooth operation
  • Includes OP50 controller, MI10 chart card reader and GS25 GPS antenna
  • Drives a second independent monitor via the spare HDMI output
  • Three Ethernet ports (two with PoE), NMEA 2000 and NMEA 0183
  • Integrates with radar, sonar, autopilot and third-party systems
  • NSO evo2 Marine Processor
  • Simrad MO19-T 19" touch monitor
  • OP50 controller
  • MI10 chart card reader
  • GS25 GPS antenna
  • Processor power, Micro-C, NMEA 0183 and Ethernet cables
  • Monitor mounting and connection hardware
  • Documentation pack

No exploded diagram available for this product.

No compatible transducers listed for this product.

B&G, Simrad ZEUS2 GH Cable Retention Strip

B&G, Simrad ZEUS2 GH Cable Retention Strip

B&G, Simrad MO16/19/24 Rear mount bracket kit

B&G, Simrad MO16/19/24 Rear mount bracket kit

Simrad MO19 Bezels, Silver and Black, Two sets

Simrad MO19 Bezels, Silver and Black, Two sets

B&G MI10 Micro SD Card Reader Dashmount, for Zeus Glass Helm, NSO

B&G MI10 Micro SD Card Reader Dashmount, for Zeus Glass Helm, NSO

Simrad MO16/19/24, Dash Seal Kit

Simrad MO16/19/24, Dash Seal Kit

Simrad MO16/19/24 Connectors kit

Simrad MO16/19/24 Connectors kit

Simrad MO16/19/24/27 Inlet Filter Cover

Simrad MO16/19/24/27 Inlet Filter Cover

Simrad MO16/19/24/27 Inlet Filters 5 Packs

Simrad MO16/19/24/27 Inlet Filters 5 Packs

Simrad NSO / NSE SD Card Door Kit

Simrad NSO / NSE SD Card Door Kit

No compatible products found.

General

Pack IncludesNSO evo2 processor, 1 x Simrad MO19-T 19" touch monitor, OP50 controller, MI10 card reader, GS25 GPS antenna
ProcessorsDual iMX61 quad-core
GPSGS25 GPS antenna included
Cartography IncludedWorldwide basemap (no detailed cartography)

Display

MonitorSimrad MO19-T 19" touch monitor (Full HD)
Monitor SupportUp to 2 independent monitors via 2 HDMI outputs

Electrical

MPU Supply Voltage9 - 31.2 V DC
MPU Power Consumption45 W max

Connectivity

Ethernet3 ports (2 with PoE), RJ45
NMEA 20001 x Micro-C port
Card ReaderMI10 USB reader with 2 microSD slots (max 32 GB each)

Physical

Processor Dimensions (W x H x D)281 x 232 x 65.5 mm

Approvals

ComplianceCE, C-Tick, HDMI
What does this NSO evo2 bundle include?
The pack pairs the NSO evo2 marine processor with one Simrad MO19-T 19-inch Full HD touch monitor, and adds an OP50 controller, an MI10 card reader, a GS25 GPS antenna, and the power, NMEA and Ethernet cabling needed to install the system.
What size and type is the monitor?
A single Simrad MO19-T 19-inch widescreen touchscreen with Full HD resolution, giving full multi-touch control of the multifunction display.
Is GPS included, and is there a built-in sonar?
A GS25 GPS antenna is included for accurate position and speed. There is no built-in sonar; to view echosounder images add a compatible external echosounder module on the Ethernet network.
Can I add a second monitor later?
Yes. The NSO evo2 processor has two HDMI outputs and can drive up to two independent monitors, so a second display can be added to the system.
Are charts included and what is the warranty?
A worldwide basemap is pre-loaded but no detailed cartography is supplied, so add a C-MAP or Navionics card for your area. The bundle carries a 2-year warranty.
