![Simrad R2009 Broadband 4G Radar Kit](https://media.hudsonmarine.co.uk/uploads/Simrad/Radar/R2009 R3016/000-12193-001-Simrad-R2009-Control-Unit-4G-Radar-Kit.jpg)

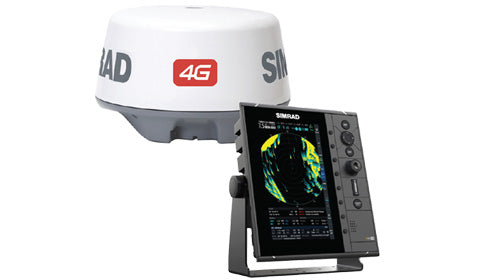

Simrad R2009 Broadband 4G Radar Kit
Simrad R2009 4G™ kit is a dedicated 9" portrait Radar Control Unit and 4G Broadband Radar. The kit includes R2009 radar control unit, 4G Broadband Radar, RI-10 interface, Interconnection cable 20m (66 ft), 1.8 m (6 ft) Ethernet cable.
![](https://d1ftp75gsnhq96.cloudfront.net/uploads/Simrad/Radar/R2009%20R3016/R2009-9-inch-Radar-Control-Unit.jpg)
In the Box
1 Control unit
2 Panel mounting gasket
3 Sun cover
4 Bezels
5 Gimbal inserts (R3016 only)
6 Power cable
7 Knobs
8 Fixing screws
9 Documentation pack
10 U-brackets
11 U-bracket straps (one for R2009, two for R3016)
![](https://d1ftp75gsnhq96.cloudfront.net/uploads/Simrad/Radar/R2009%20R3016/R2009-9-inch-Dimensions.jpg)
R2009 9 Dimensions
Product Width 224mm / 8.81″
Product Height 260mm / 10.23″
Product Depth 67mm / 2.63″
![](https://d1ftp75gsnhq96.cloudfront.net/uploads/Simrad/Radar/R2009%20R3016/R3016-16-inch-Dimensions.jpg)
R3016 16 Dimensions
Product Width 455mm / 17.91″
Product Height 280mm / 11.02″
Product Depth 67mm / 2.63″
In the Box
1. 3G or 4G Broadband Radar
2. Radar interconnection cable
Lowrance 10 meter
B&G and Simrad 20 meter
3. Option heading sensor required for MARPA and chart overlay (not included)
4. RI10 Radar interface box
5. Ethernet cable: shipped with 1.8 m (6 ft)
6. Display: Simrad NSO, NSE or NSS / B&G Zeus / Lowrance HDS (not included).
7. SimNet or NMEA2000 data network (not included)
Dimensions for
B&G 3G and 4G
Lowrance 3G and 4G
Simrad 3G and 4G
Underside Dimensions
A. Cable entry area
B. Cable retention channel
C. Bolt holes x 4 M8 x 30 mm
D. Breather
RI 10 Dimensions
Radar interface box
