Raymarine Alpha Daisy Chain Cable 0.3m
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

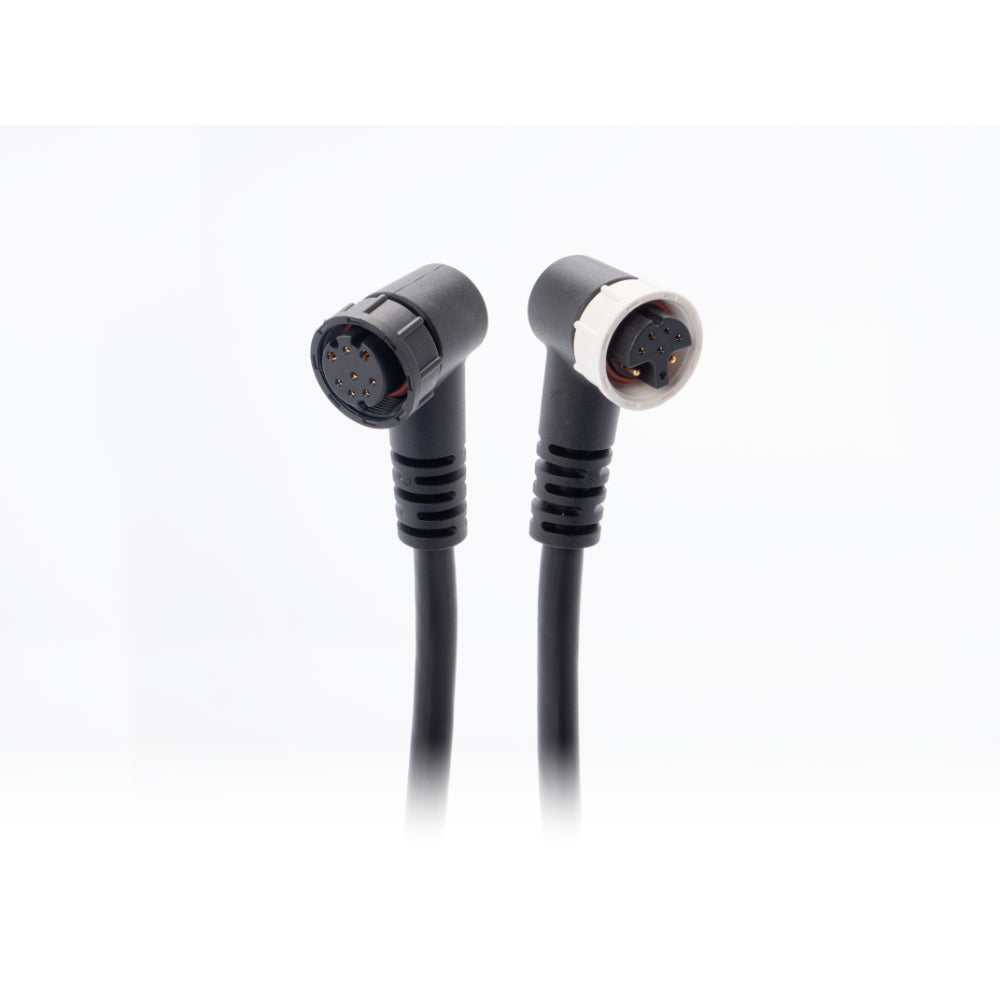

Expanded Alpha systems are built by daisy chaining displays together, and this 0.3 m daisy chain cable (A80710) connects two Alpha displays mounted side by side or stacked in a mast bracket array. It plugs into the 8 pin right angled daisy chain connector on the back of each display and carries both power and RayNet data down the line, so a chain of up to four displays runs from a single power and RayNet cable.
When daisy chaining, fit an inline fuse rated for the whole chain: 2 A per display, up to 8 A for four. Up to ten Alpha displays can live on one network in total. Compatible with both the Alpha 7 (E70649) and Alpha 9 (E70650), and with the protective cap fitted to any unused connector the chain stays waterproof.
PRODUCT DETAILS
- Passes power and RayNet data from one Alpha display to the next
- 0.3 m length with 8 pin right angled connectors
- Build chains of up to 4 displays from a single power feed
- Up to 10 Alpha displays supported per network
- Suits both Alpha 7 (E70649) and Alpha 9 (E70650)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| Cable type | 8-pin right-angled daisy chain cable |
| Function | Carries power and data from one Alpha performance display to the next in a series |
| Length | 0.3 m |
| Maximum displays in a series | 4 (up to 10 Alpha displays per network) |
Compatibility
| Suitable for | Alpha 7 (E70649) and Alpha 9 (E70650) performance displays |
