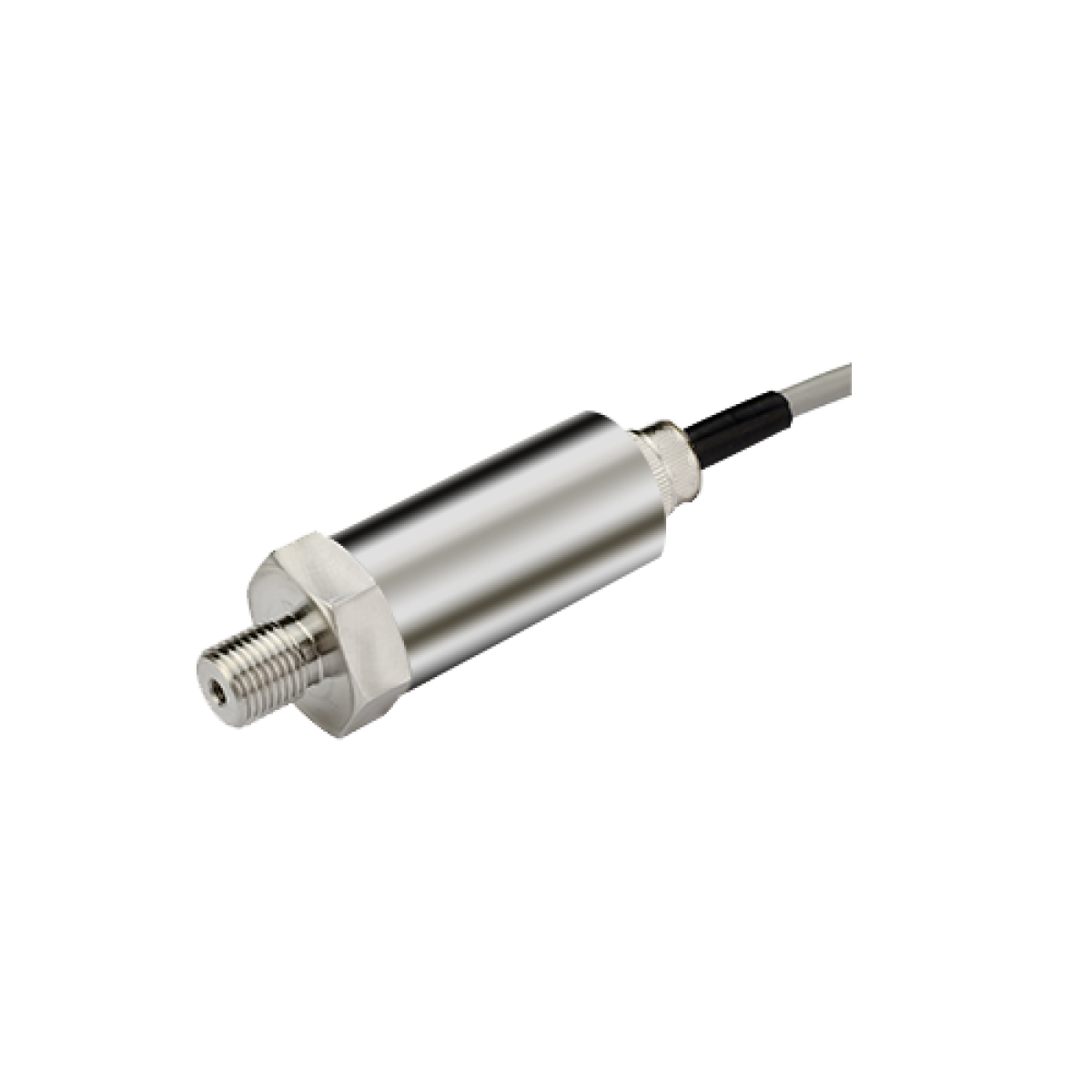

Oceanic Systems 4623 0-100 psi Compact Stainless Steel Pressure Sensor
£176.40
/
Tax included.
Shipping calculated at checkout.
OS-ACC-SENSOR-4623
A compact stainless steel 0 to 100 psi pressure sensor with 4-20mA output and G1/2 inch connection.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Oceanic Systems 4623 is a compact stainless steel pressure sensor for the 0 to 100 psi range with a standard 4-20mA output. It uses a high performance piezoresistive transducer with a silicone oil filled, O-ring sealed internal structure, giving high stability and enhanced anti-interference and surge protection across a wide range of marine liquids and gases.
The rugged stainless steel body carries a G1/2 inch BSP pressure connection and a direct cable output, and has a -10 to 70 degrees C compensated temperature range. Paired with an Oceanic Systems 4601 4-20mA Pressure Adaptor it reports pressure onto the NMEA 2000 network for display on any compatible instrument.
PRODUCT DETAILS
- Pressure range 0 to 100 psi
- 4-20mA two wire output
- Piezoresistive sensor, silicone oil filled
- Stainless steel 316L diaphragm and 304 body
- G1/2 inch BSP pressure connection
- Compensated temperature range -10 to 70 C
- Enhanced anti-interference and surge protection
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Key specifications
| Pressure range | 0 to 100 psi |
| Output signal | 4-20mA |
| Accuracy at 25 C | plus or minus 0.5 percent FS |
Electrical
| Non-linearity BFSL | less than or equal to plus or minus 0.3 percent FS |
| Long term stability | less than or equal to 0.2 percent FS per year |
Environmental
| Compensated temperature range | -10 to 70 C |
| Medium temperature range | -20 to 100 C |
Physical
| Diaphragm material | Stainless steel 316L |
| Enclosure material | Stainless steel 304 |
| O-ring | Viton |
Connection
| Pressure connection | G1/2 inch BSP |
| Electrical connection | Direct cable |
No videos available for this product.
What is the Oceanic Systems 4623 used for?
The Oceanic Systems 4623 is a compact stainless steel pressure sensor for the 0 to 100 psi range with a standard 4-20mA output.
What are its main specifications?
Key specifications: Pressure range: 0 to 100 psi; Output signal: 4-20mA; Accuracy at 25 C: plus or minus 0.5 percent FS; Non-linearity BFSL: less than or equal to plus or minus 0.3 percent FS; Long term stability: less than or equal to 0.2 percent FS per year. The full list is in the specifications tab.
What do I need to use it with?
It is designed to work with the Oceanic Systems 4601 4-20 mA Pressure Adaptor, as described in the product details.
