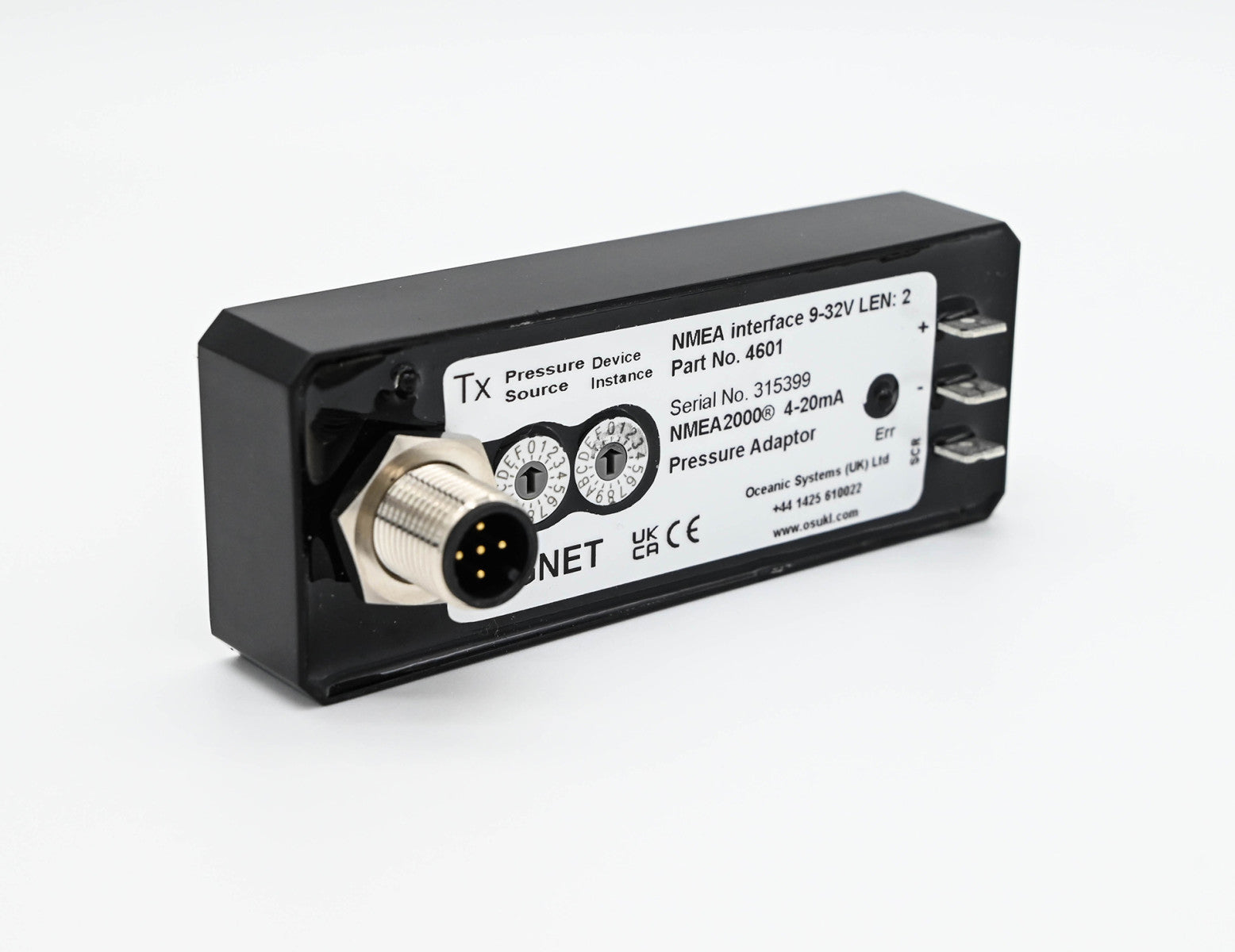

Oceanic Systems 4601 4-20 mA Pressure Adaptor
£330.00
/
Tax included.
Shipping calculated at checkout.
4601
An NMEA 2000 adaptor that reports any 4-20mA pressure sensor onto the network with selectable range and damping.
✓
Available for collection or delivery in ~2 days
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Oceanic Systems 4601 NMEA 2000 4-20mA Pressure Adaptor lets any standard 4-20mA pressure source be monitored on the NMEA 2000 network, including atmospheric, water, steam, compressed air, hydraulic, oil and fuel pressures. It converts the analogue current input to a digital value with plus or minus 2 percent full scale accuracy and provides a standard pressure PGN over the network.
The pressure range, pressure source and signal damping are all user selectable without complicated menu setups, and the adaptor detects a faulty sensor or connection through under or over current sensing. Fully waterproof to IP67 and fitted with an NMEA 2000 Micro-C interface plug, it is ruggedly built for reliable service in a protected marine environment such as an engine room.
PRODUCT DETAILS
- Converts any 4-20mA pressure source to NMEA 2000
- Accuracy plus or minus 2 percent full scale
- User selectable range, source and damping
- Faulty sensor detection by under or over current
- NMEA 2000 Micro-C interface plug
- Waterproof to IP67
- Certified to the NMEA 2000 network standard
No exploded diagram available for this product.
No compatible transducers listed for this product.
Oceanic Systems 4620 0 to -1 bar Compact Stainless Steel Vacuum Sensor
Oceanic Systems 4621 0-10 psi Compact Stainless Steel Pressure Sensor
Oceanic Systems 4622 0-50 psi Compact Stainless Steel Pressure Sensor
Oceanic Systems 4624 0-500 psi Compact Stainless Steel Pressure Sensor
Oceanic Systems 4623 0-100 psi Compact Stainless Steel Pressure Sensor
Oceanic Systems 4625 0-1000 psi Compact Stainless Steel Pressure Sensor
No compatible products found.
Key specifications
| Input | 4-20mA pressure source |
| Accuracy | plus or minus 2 percent full scale |
| Network output | NMEA 2000 pressure PGN 130314 |
| User configurable | Range, source and damping |
Connection
| Interface | NMEA 2000 Micro-C plug |
Environmental
| Ingress protection | IP67 |
No videos available for this product.
What is the Oceanic Systems 4601 used for?
The Oceanic Systems 4601 NMEA 2000 4-20mA Pressure Adaptor lets any standard 4-20mA pressure source be monitored on the NMEA 2000 network, including atmospheric, water, steam, compressed air, hydraulic, oil and fuel pressures.
What are its main specifications?
Key specifications: Input: 4-20mA pressure source; Accuracy: plus or minus 2 percent full scale; Network output: NMEA 2000 pressure PGN 130314; User configurable: Range, source and damping; Interface: NMEA 2000 Micro-C plug. The full list is in the specifications tab.
Is it waterproof?
It is rated IP67.
