Description
See fluid, high-resolution images of fish swimming around structure and responding to your lure – as it happens – with new ActiveTarget™ Live Sonar.

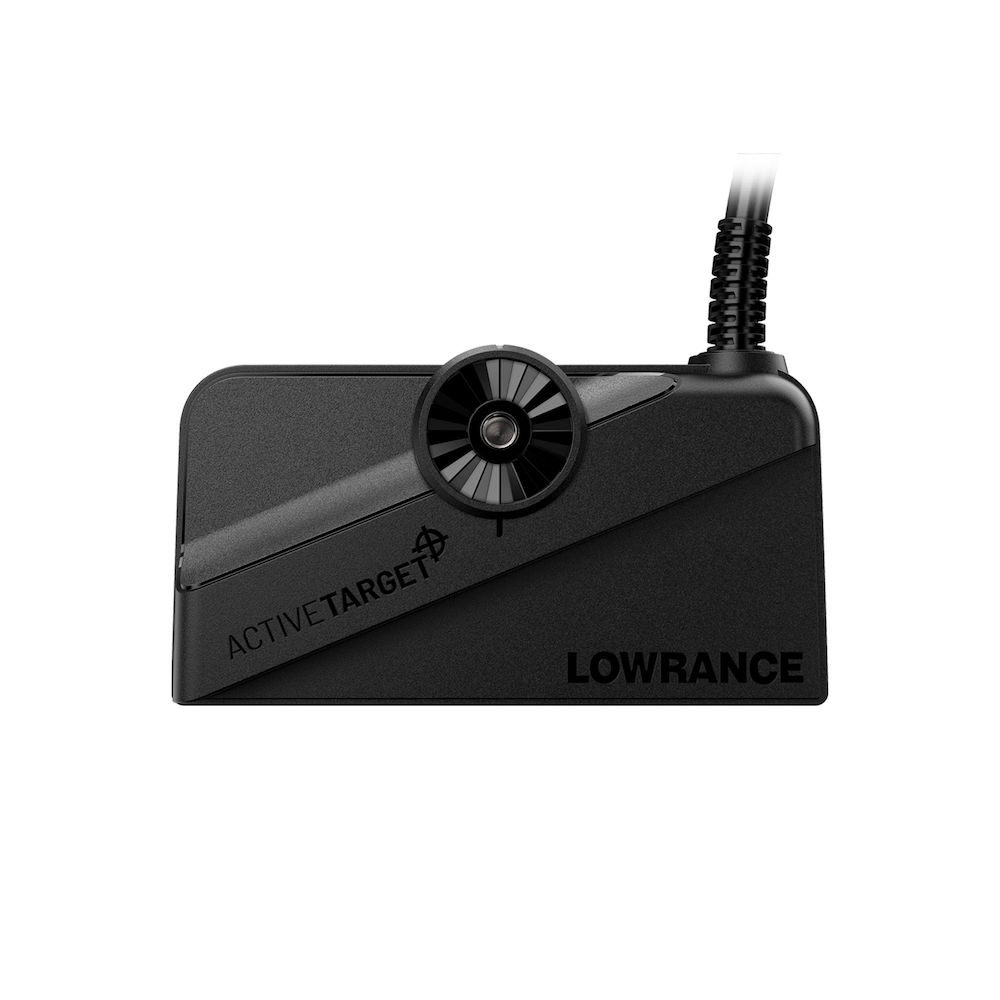

ActiveTarget™ Live Sonar – Game On!
Watch high-resolution images of fish movements – tracking them as they swim in and around cover with ActiveTarget™ Live Sonar. When you see how fish are located near structure and watch them respond to your lure, you will know if your current technique is working, or if it’s time to make an adjustment – information that is harder to get from traditional sonar or structure imaging.
Track fish and your presentation with high-resolution views in front or below your boat, or use the Scout mode to see an ultra-wide, overhead view of structure and fish activity in front of your boat, perfect for finding bait balls and big schools of fish.
ActiveTarget is compatible with Lowrance HDS LIVE, HDS Carbon and Elite FS fishfinder/chartplotters.
Key features
- Get three views from one transducer: Forward view ahead of your boat, Down view below your boat or Scout view – an ultra-wide, overhead view in front of your boat
- See how fish are positioned in and around structure and watch them respond to your lure as it happens
- High-resolution live images remove the guesswork from sonar interpretation
- Know whether fish are active
- Compatible with HDS LIVE, HDS Carbon and Elite FS
PRODUCT DETAILS
- Get three views from one transducer: Forward view ahead of your boat, Down view below your boat or Scout view – an ultra-wide, overhead view in front of your boat
- See how fish are positioned in and around structure and watch them respond to your lure as it happens
- High-resolution live images remove the guesswork from sonar interpretation
- Know whether fish are active
- Compatible with HDS LIVE, HDS Carbon and Elite FS
No exploded diagram available for this product.
No compatible transducers listed for this product.
Display
| Display Resolution | N/A |
| Screen Brightness | N/A |
| Backlight Color | N/A |
| Viewing Angles | N/A |
Connectivity
| N2K PG Ns | N/A |
| NMEA 2000 Connectivity | N/A |
| PC Connectivity | N/A |
| 0183 sentence | N/A |
| Video | N/A |
| Wifi | N/A |
| Bluetooth | N/A |
| Ethernet Ports | Yes:1 - 100 Mbit Ethernet Port |
Electrical
| Recommended Fuse Rating | 3A |
| Power Consumption Max | 1.5A @ 13.8VDC |
| Power Consumption Typical | 1.5A @ 13.8VDC |
| Supply Voltage | 10.8 VDC - 31.2 VDC |
Environment
| Waterproof Rating | IP67 |
| Shock Vibration | 100,000 cycles of 20 G |
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
| Storage Temperature Range | -22°F to 158°F (-30°C to 70°C ) |
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
Physical
| Compass Safe | N/A |
| Mounting Type | Module:Surface MountTransducer:Bracket Mount |
| Weight | Module:4.12 lbs (1.86 kg)Transducer:2.67 lbs (1.21 kg) |
| Dimensions | Module:8.63" (219.3mm) x 7.56" (192.1mm) x 2.86" (72.9mm)Transducer:5.90" (149.8mm) x 3.24" (82.4mm) x 2.28" (58.0mm) |
Other
| Languages | N/A |
| Interface | Ethernet to:HDS ProHDS LiveHDS CarbonElite FS |
| Warranty Period | 1 Year + 4 additional years ofupgrade optionsTotaling 5 years |
No videos available for this product.
No downloads available for this product.
