Garmin
ECHOMAP™ Ultra 2 12 Chartplotters, 122sv without Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

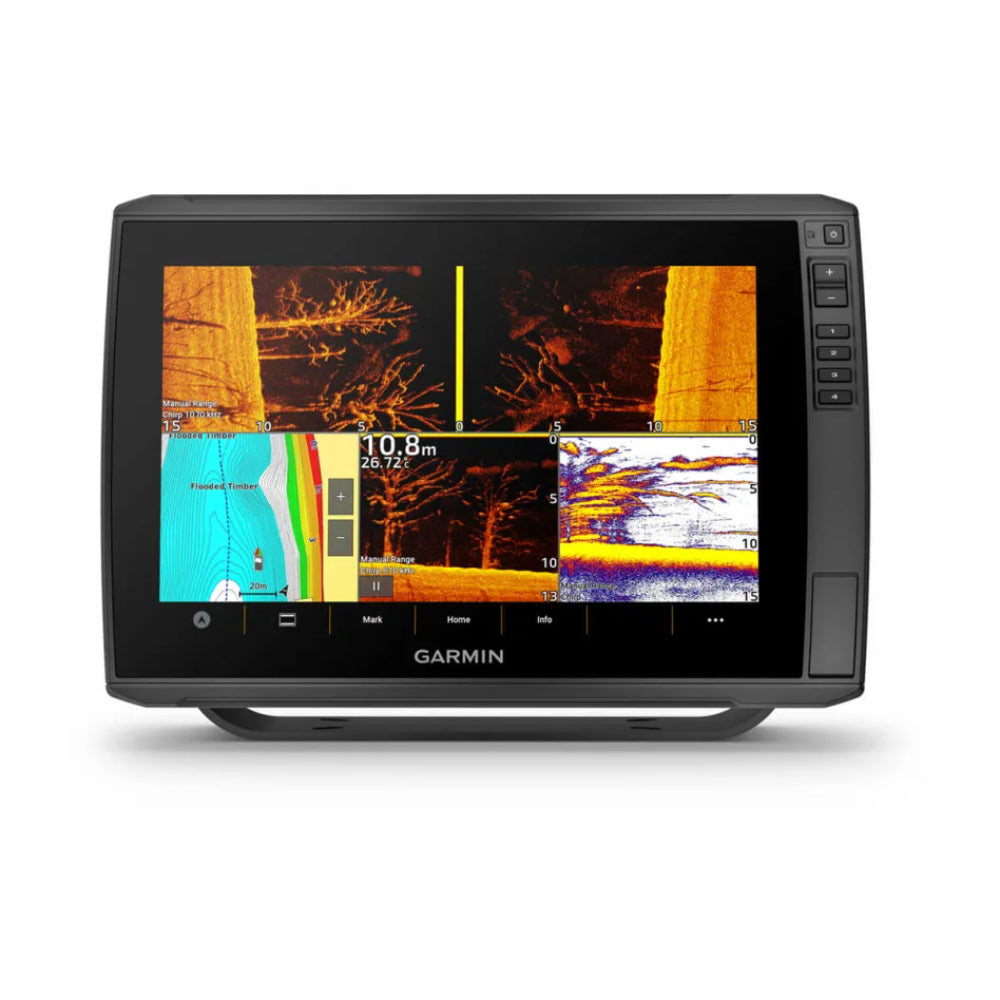

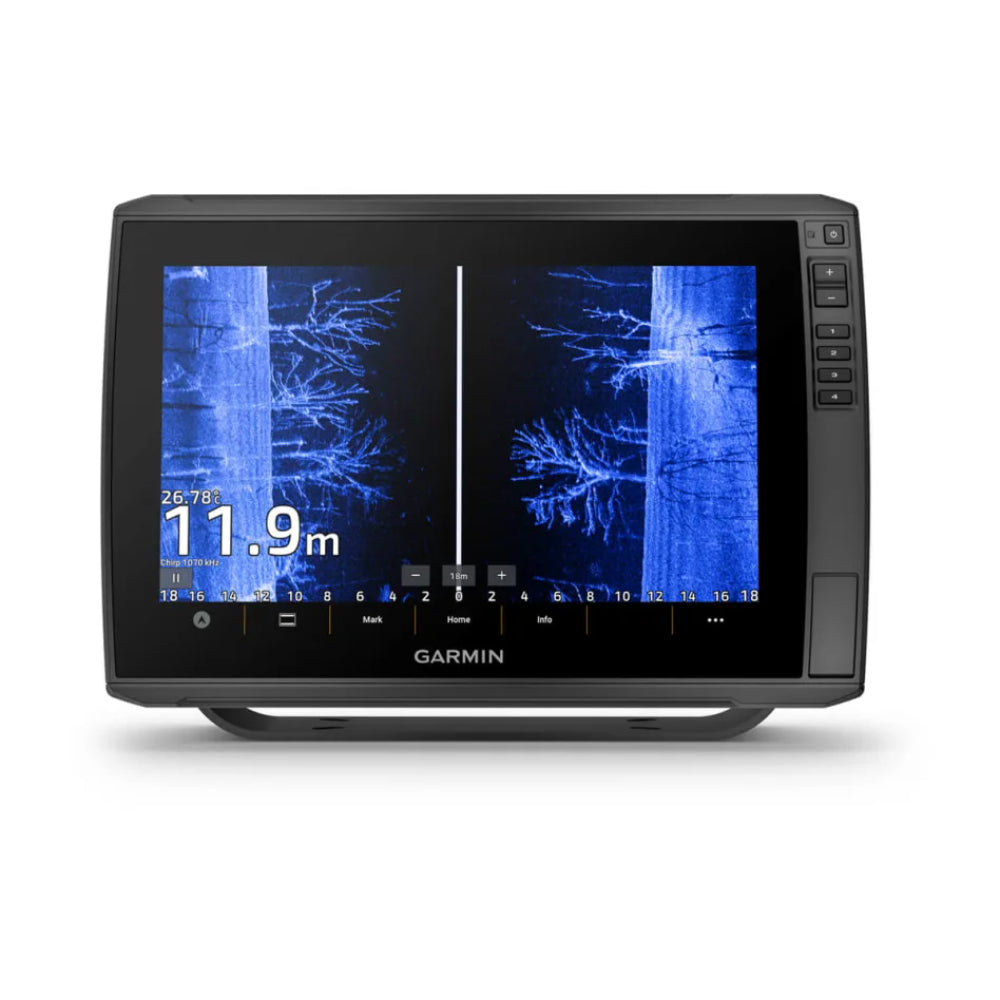

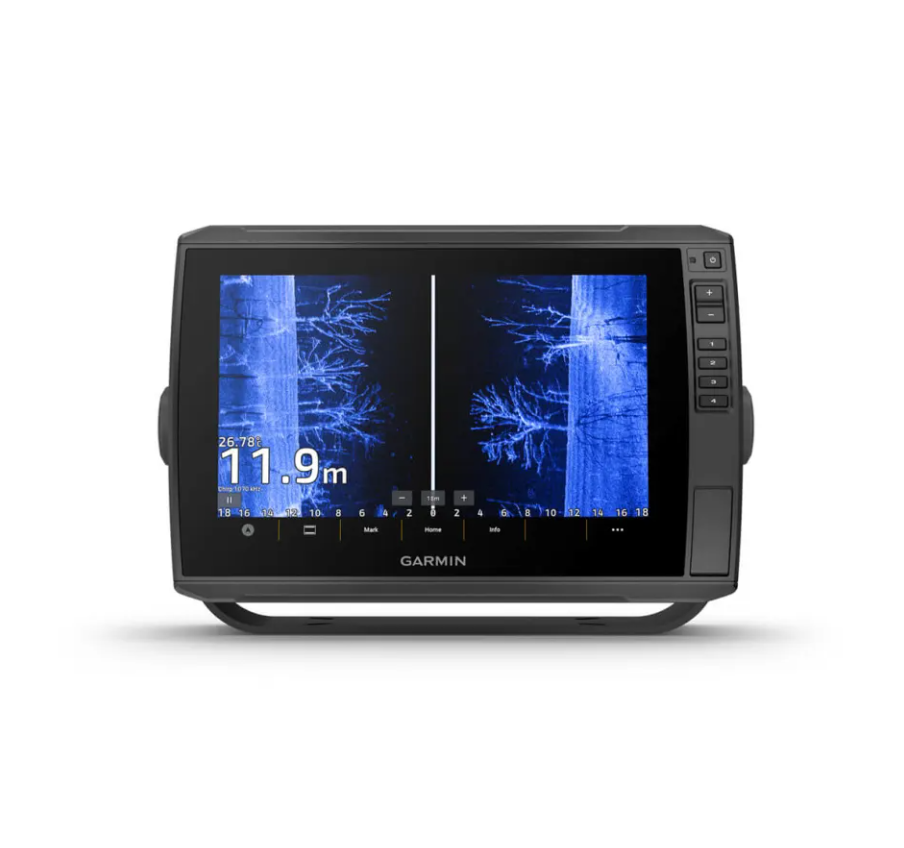

The ECHOMAP Ultra 2 122sv delivers premium big-screen performance on a large 12-inch touchscreen, with keyed assist and a crisp high-resolution WXGA display that gives serious anglers room to view detailed mapping and sonar together. It supports Garmin's best-in-class sonar, including traditional CHIRP, Ultra High-Definition ClearVu and SideVu at 600 W RMS, and is ready to add the full Garmin LiveScope live scanning sonar range through its dedicated network port. Twin microSD slots accept cards up to 1 TB for premium charts and Quickdraw Contours mapping, while built-in high-sensitivity GPS, Wi-Fi and ActiveCaptain app connectivity keep you positioned and up to date. The unit is compatible with Garmin Navionics+ and Navionics Vision+ charts, and NMEA 2000 connectivity allows integration with sensors and engine data. The IPX7-rated housing handles spray and rain. This version ships without a transducer.
PRODUCT DETAILS
- 12-inch touchscreen chartplotter with keyed assist and high-resolution WXGA (1280 x 800) display
- Best-in-class Garmin sonar: traditional CHIRP, Ultra High-Definition ClearVu and SideVu at 600 W RMS

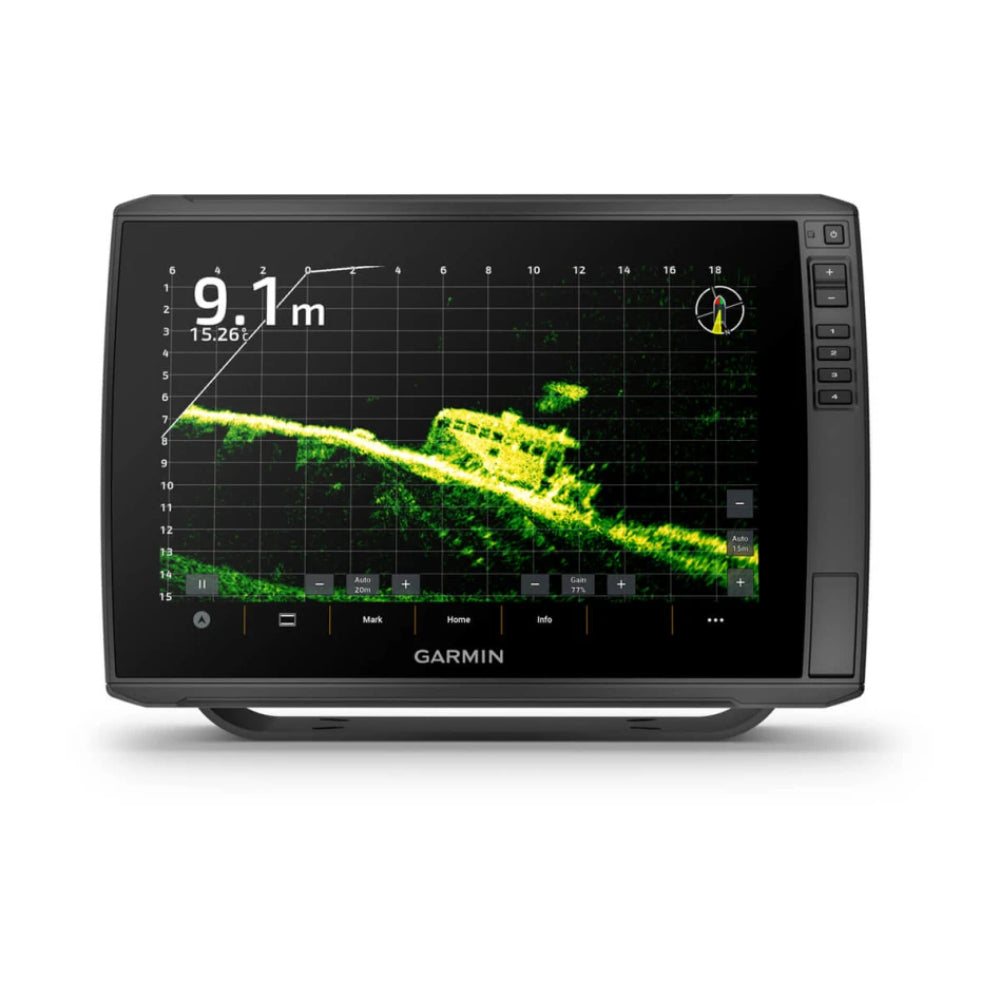

- Compatible with the full Garmin LiveScope live scanning sonar range via the Garmin network port
- Two microSD card slots supporting cards up to 1 TB for charts and Quickdraw Contours maps
- Built-in high-sensitivity GPS plus Wi-Fi and ActiveCaptain app connectivity
- Compatible with Garmin Navionics+ and Navionics Vision+ premium charts
- NMEA 2000 connectivity and IPX7 waterproof rating; supplied without a transducer
- ECHOMAP Ultra 2 122sv chartplotter

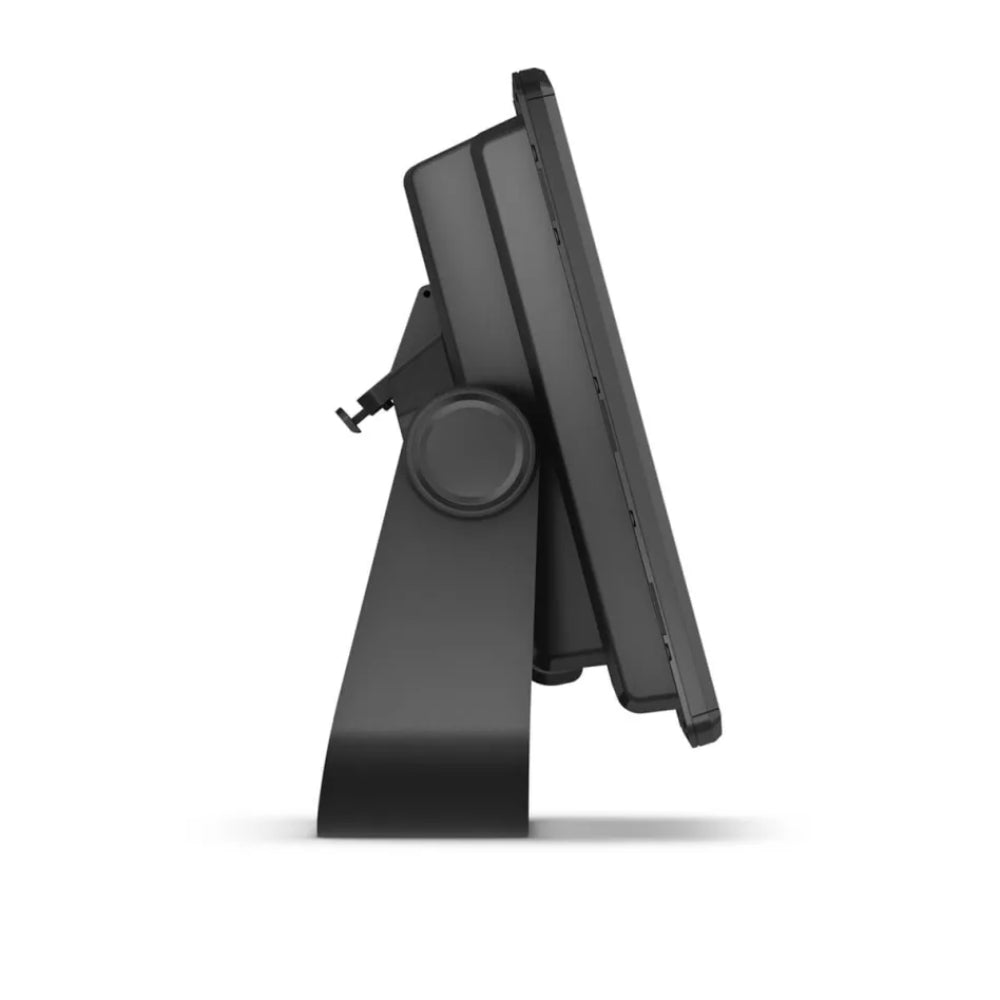

- Tilt/swivel bail mount with knobs
- Flush-mount kit and hardware
- Protective sun cover
- Power cable
- Documentation
No exploded diagram available for this product.
Garmin NMEA 2000 Multi-port T-connector
Garmin GMS 10 Ethernet Network Port Expander or Network Switch
GTEMP 10-TH Thru-hull Temp Sensor
Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID
Garmin Steady Cast Heading Sensor
Garmin Reactor Autopilot Remote Control
Garmin Weather Cap For Power Data Cable
Extension Cable for 12-pin Garmin Scanning Transducers, 1.3 m (4.3 ft)
Garmin GDT 43 Analogue Thru Hull Depth and Temperature Transducer
Garmin 12 pin Sounder to Y 8 pin and 12 pin Transducer Adapter Cable
Garmin NMEA2000 Field Installation Female Connector
Garmin Cable Grommet for Marine Network Cables
Flush Mount Kit
Garmin Suction-cup transducer mounting adapter
Bail Mount With Quick Release Cradle, ECHOMAP™ Ultra 2 12
Garmin Marine Network Cables (Large Connectors), 50 ft (15.24 m)
Garmin NMEA2000 Backbone Cable 10m
Garmin Spectra™, LC302 LED Control Module
Garmin NMEA2000 Power Isolator
Garmin GFS 10 NMEA2000 Petrol Fuel Flow Sensor
Garmin NMEA2000 Field Installation Male Connector
Garmin NMEA2000 Terminator Female
GPS 24xd HVS - 010-02316-00
Garmin 6ft Marine Network Cable Ethernet RJ45
Garmin 4-pin Transducer to 12-pin Sounder Adapter Cable
Garmin GST 10 Analogue Water Speed and Temperature Adapter
Garmin NMEA2000 Tee Connector
Garmin GPS 24XD Dual Frequency Antenna
Garmin Split collar 11mm connector
Garmin Right angle NMEA 2000 cable
Garmin Spectra™, LC102 LED Control Module
Garmin ECHOMAP Ultra 102 and 122 Threaded Power cable
Garmin NMEA2000 Power Cable
Transducer Spray Shield
Garmin NMEA2000 Inline Terminator Male
Garmin Marine Network Cable In Line Coupler or Joiner
GPS 24xd Receiver and Antenna, For the NMEA 2000® Network, Black - 010-02316-20
Garmin NMEA 2000 Weather Cap
Garmin NMEA2000 starter kit
Garmin Marine Network Cable Connector RJ45 Plug 2 Pack
Garmin 40ft Marine Network Cable Ethernet RJ45
Garmin GRA 10 Analogue Rudder Angle Sender to NMEA2000 Adapter
microSD™ Card Door
Garmin GFL 10 Analogue Fluid Level Sender to NMEA2000 Adapter
Garmin Weather Cap for RJ45 Connector
Garmin GNA 10, NMEA 2000 Multi-Function Adapter
Garmin 500ft Marine Network Cable Only, No RJ45 Plugs or Connectors
Image coming soonTransducer Right Angle Adapter Cable (12-pin)
Garmin NMEA2000 Backbone Drop or Spur Cable 30cm
Garmin NMEA2000 Terminator Male
No compatible products found.
Display
| Display size | 309 mm (12 in.) diagonal; 262 x 164 mm viewable |
| Display resolution | WXGA, 1280 x 800 pixels |
| Control type | Touchscreen with keyed assist |
Physical
| Dimensions (W x H x D), device only | 341 x 229 x 98 mm |
| Weight | 2.46 kg (5 lb. 7 oz.) |
| Material | Polycarbonate plastic |
Electrical
| Input voltage | 9 to 18 Vdc |
| Fuse | 8 A, fast-blow (included) |
| Max. power draw | 36 W |
| Typical current draw at 12 Vdc (RMS) | 2.5 A |
| Max. current draw at 12 Vdc (peak) | 5 A |
Sonar
| Sonar technology | Traditional CHIRP + Garmin ClearVu CHIRP + Garmin SideVu CHIRP (sv); compatible with Ultra High-Definition scanning and LiveScope |
| Sonar frequencies | Traditional L, M, H CHIRP: 50/77/83/200 kHz; ClearVu CHIRP: 260/455/800/1000/1200 kHz; SideVu CHIRP: 260/455/800/1000/1200 kHz |
| Sonar transmit power (RMS) | 600 W (CHIRP, ClearVu and SideVu) |
| Sonar depth | 701 m (2,300 ft.) at 77 kHz |
Connectivity
| Wi-Fi | 2.4 GHz Wi-Fi (ActiveCaptain app connectivity) |
| NMEA 2000 | Yes |

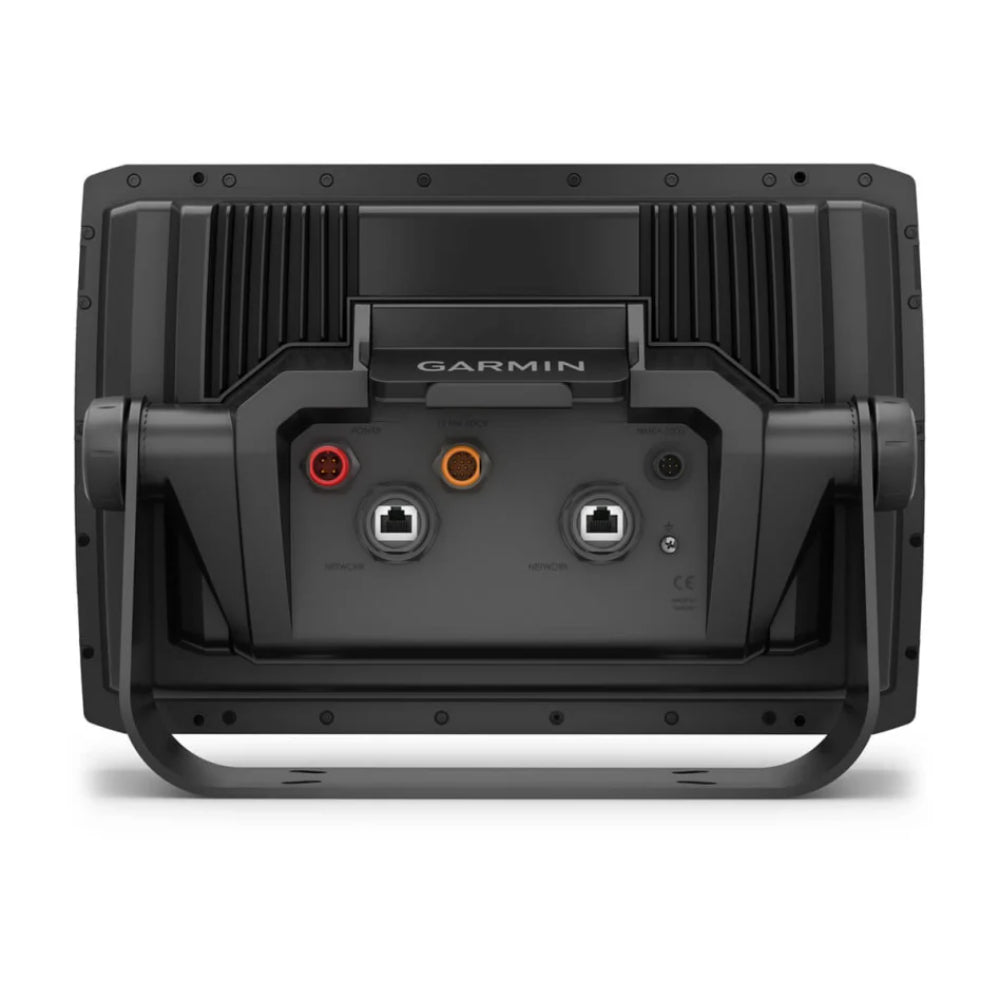

| Garmin Marine Network | Garmin network port for compatible LiveScope, GCV and ECHOMAP devices |
| Memory card | 2 microSD card slots; up to 1 TB (exFAT) |
GPS/GNSS
| GPS | Built-in high-sensitivity GPS |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C |
| Compass-safe distance | 9 cm (3.5 in.) |
General
| Mapping | Compatible with Garmin Navionics+ and Garmin Navionics Vision+; Quickdraw Contours |
