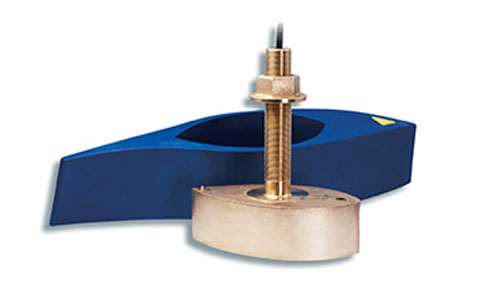

Garmin B265LH CHIRP Dual Range Depth and Temperature Transducer
Manufacturer Part No:
010-11645-20 |
£1,280.00 ex-VAT
Our best performing 1 kW thru-hull transducer, this bare wire mount performs well in deep water and has exceptional bottom and water column detail. This transducer has a depth of 3,000 ft; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees and 6 to 10 degrees; and a 0 to 20 degree deadrise. Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
Garmin TM150M CHIRP Transom Mount Depth and Temperature Transducer 8 pin
This 300 W plastic transom mount with CHIRP technology has a maximum depth of 1,500 ft; an operating frequency of 95 to 155 kHz; a beamwidth of 26/17 degrees; and mounts on a 3 to 20 degree transom. Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damag...
£258.29 ex-VAT
Garmin B150M CHIRP 0 Degree Tilt Depth and Temperature Transducer 8 pin
This entry level CHIRP solution provides good depth capability and target separation. This 8-pin 300 W bronze thru-hull mount transducer has a depth of 1,500 ft; an operating frequency of 95-155 kHz; a beamwidth of 26/17 degrees; and a 0 to 7 degree deadrise. Transducer kit comes with installation i...
£401.63 ex-VAT
Garmin B150M CHIRP 12 Degree Tilt Depth and Temperature Transducer 8 pin
This entry level CHIRP solution provides good depth capability and target separation. This 8-pin 300 W bronze thru-hull mount transducer has a depth of 1,500 ft; an operating frequency of 95-155 kHz; a beamwidth of 26/17 degrees; and a 8 to 15 degree deadrise. Transducer kit comes with installation...
£401.63 ex-VAT
Garmin B150M CHIRP 20 Degree Tilt Depth and Temperature Transducer 8 pin
This entry level CHIRP solution provides good depth capability and target separation. This 8-pin 300 W bronze thru-hull mount transducer has a depth of 1,500 ft; an operating frequency of 95-155 kHz; a beamwidth of 26/17 degrees; and a 16 to 24 degree deadrise. Transducer kit comes with installation...
£401.63 ex-VAT
Garmin B75H CHIRP 0 Degree Tilt Depth and Temperature Transducer 8 pin
This bronze thru-hull mount transducer is designed to allow both traditional and spread spectrum scanning when used with a compatible sonar. A 600 W transducer with 8 pins, it has a depth of 800 ft; an operating frequency of 130-210 kHz; a beamwidth of 15/9 degrees; and a 0 to 7 degree deadrise. Tra...
£791.99 ex-VAT
Garmin B75H CHIRP 12 Degree Tilt Depth and Temperature Transducer 8 pin
This bronze thru-hull mount transducer is designed to allow both traditional and spread spectrum scanning when used with a compatible sonar. A 600 W transducer with 8 pins, it has a depth of 800 ft; an operating frequency of 130-210 kHz; a beamwidth of 15/9 degrees; and a 8 to 16 degree deadrise. Tr...
£791.99 ex-VAT
Garmin B75H CHIRP 20 Degree Tilt Depth and Temperature Transducer 8 pin
This bronze thru-hull mount transducer is designed to allow both traditional and spread spectrum scanning when used with a compatible sonar. A 600 W transducer with 8 pins, it has a depth of 800 ft; an operating frequency of 130-210 kHz; a beamwidth of 15/9 degrees; and a 16 to 24 degree deadrise. T...
£624.13 ex-VAT
Garmin B75M CHIRP 0 Degree Tilt Depth and Temperature Transducer 8 pin
This bronze thru-hull mount transducer is designed to allow both traditional and spread spectrum scanning when used with a compatible sonar like the GSD 26. A 600 W transducer with 8 pins, it has a depth of 800 ft; an operating frequency of 80-130 kHz; a beamwidth of 24/16 degrees; and a 0 to 7 degr...
£880.00 ex-VAT
Garmin B75M CHIRP 12 Degree Tilt Depth and Temperature Transducer 8 pin
This bronze thru-hull mount transducer is designed to allow both traditional and spread spectrum scanning when used with a compatible sonar like the GSD 26. A 600 W transducer with 8 pins, it has a depth of 800 ft; an operating frequency of 80-130 kHz; a beamwidth of 24/16 degrees; and a 8 to 15 deg...
£880.00 ex-VAT
Garmin B75M CHIRP 20 Degree Tilt Depth and Temperature Transducer 8 pin
This bronze thru-hull mount transducer is designed to allow both traditional and spread spectrum scanning when used with a compatible sonar like the GSD 26. A 600 W transducer with 8 pins, it has a depth of 800 ft; an operating frequency of 80-130 kHz; a beamwidth of 24/16 degrees; and a 16 to 24 de...
£880.00 ex-VAT
Garmin B75L CHIRP 0 Degree Tilt Depth and Temperature Transducer 8 pin
This bronze thru-hull mount transducer is designed to allow both traditional and spread spectrum scanning when used with a compatible sonar. A 300 W transducer with 8 pins, it has a depth of 800 ft; an operating frequency of 40-75 kHz; a beamwidth of 32/21 degrees; and a 0 to 7 degree deadrise. Tran...
£721.60 ex-VAT
Garmin B75L CHIRP 12 Degree Tilt Depth and Temperature Transducer 8 pin
This bronze thru-hull mount transducer is designed to allow both traditional and spread spectrum scanning when used with a compatible sonar. A 300 W transducer with 8 pins, it has a depth of 800 ft; an operating frequency of 40-75 kHz; a beamwidth of 32/21 degrees; and a 8 to 15 degree deadrise. Tra...
£618.05 ex-VAT
Garmin B175H CHIRP 0 Degree Tilt Depth and Temperature Transducer 8 pin
Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage. The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. A...
£1,105.83 ex-VAT
Garmin B175H CHIRP 12 Degree Tilt Depth and Temperature Transducer 8 pin
Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage. The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. A...
£1,363.99 ex-VAT
Garmin B175H CHIRP 20 Degree Tilt Depth and Temperature Transducer 8 pin
Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage. The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. A...
£1,074.97 ex-VAT
Garmin B175M CHIRP 0 Degree Tilt Depth and Temperature Transducer 8 pin
Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage. The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. A...
£1,434.40 ex-VAT
Garmin B175M CHIRP 12 Degree Tilt Depth and Temperature Transducer 8 pin
Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage. The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. A...
£1,434.40 ex-VAT
Garmin B175M CHIRP 20 Degree Tilt Depth and Temperature Transducer 8 pin
Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage. The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. A...
£1,130.79 ex-VAT
Garmin B175L CHIRP 0 Degree Tilt Depth and Temperature Transducer 8 pin
Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage. The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. A...
£1,583.99 ex-VAT
Garmin B175L CHIRP 12 Degree Tilt Depth and Temperature Transducer 8 pin
Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage. The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. A...
£1,583.99 ex-VAT
Garmin B175L CHIRP 20 Degree Tilt Depth and Temperature Transducer 8 pin
Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage. The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. A...
£1,583.99 ex-VAT
Garmin B265LM CHIRP Dual Range Depth and Temperature Transducer
This best performing 1 kW thru-hull transducer, this bare wire mount performs well in deep water and has exceptional bottom and water column detail. This transducer has a depth of 3,000 ft; an operating frequency of 42 to 65 kHz and 85 to 135 kHz; a beamwidth of 16 to 25 degrees and 11 to 16 degrees...
£1,909.60 ex-VAT
Garmin R109LH CHIRP Dual Range Depth and Temperature Transducer
Our plastic thru-hull mount transducer uses very narrow beams at low and high frequencies for excellent deep water performance. A 2 kW in a slightly smaller package, this bare wire transducer has a depth of 8,000 ft; an operating frequency of 38 to 75 kHz and 130 to 210 kHz; a beamwidth of 10 to 19...
£2,259.17 ex-VAT
Garmin Airmar 509LH CHIRP Dual Range 2-3kW Through Hull Transducer
This all-in-one transducer for popular fishing frequencies (28, 38, 50 and 200) is our best performing, highest power, 2 to 3 kW transducer.
It has a depth of 10,000 ft; an operating frequency of 28 to 60 kHz and 130 to 210 kHz; a beamwidth of 5x9 to 11x23 degrees and 4 to 8 degrees; and a 0 to 2...
£2,895.00 ex-VAT
Garmin B265LH CHIRP Dual Range Depth and Temperature Transducer
Our best performing 1 kW thru-hull transducer, this bare wire mount performs well in deep water and has exceptional bottom and water column detail. This transducer has a depth of 3,000 ft; an operating frequency of 42 to 65 kHz and 130 to 210 kHz; a beamwidth of 16 to 25 degrees and 6 to 10 degrees;...
£1,280.00 ex-VAT
