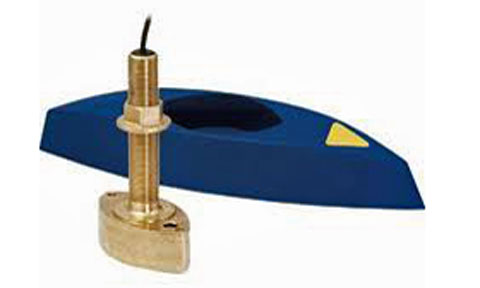

Garmin B45 Narrow Stem Through Hull with Fairing Block 8 pin
Manufacturer Part No:
010-10983-20 |
£175.00 ex-VAT
Garmin B45 Narrow Stem Through Hull with Fairing Block. Suitable for wood and fiberglass hulls. Max power 600 W.
Garmin P319 Low Profile Through Hull Depth and Temperature Transducer 8 pin
This plastic thru-hull mount transducer performs well at high speeds. An excellent choice for fiberglass and metal hulls, this 8-pin 600 W transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 7 degree deadrise. Transducer kit...
£134.97 ex-VAT
Garmin B117 Depth and Temperature Low Profile Through Hull Transducer 8 pin
This bronze thru-hull mount transducer performs well at high speeds. An excellent choice for fiberglass and wood hulls, this 8-pin 600 W narrow stem transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 7 degree deadrise. Tran...
£208.29 ex-VAT
Garmin B744V Through Hull Depth Speed and Temperature Transducer 8 pin
The only thru-hull transducer that offers depth, speed and temperature in one package, this 8-pin 600 W triducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 24 degree deadrise. Transducer kit comes with installation instruction...
£374.13 ex-VAT
Garmin B744V Long Stem Through Hull Depth Speed and Temperature 8 pin
An extension of the Airmar B744V triducer, this bronze thru-hull mount transducer is used for steep deadrise vessels or thick, cored hulls. This 8-pin 600 W long stem transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45 to 12 degrees; and a 0 to 24 de...
£475.19 ex-VAT
Garmin B45 Narrow Stem Through Hull with Fairing Block 8 pin
Garmin B45 Narrow Stem Through Hull with Fairing Block. Suitable for wood and fiberglass hulls. Max power 600 W.
£175.00 ex-VAT
Garmin B60 Through Hull Transducer with 12 Degree Tilted Element 8 pin
This entry-level tilted bronze transducer accommodates deadrise angles of 8 to 15 degrees without a fairing. An excellent choice for fiberglass and wood hulls, this 600 W 8-pin transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; and a beamwidth of 45 to 12 degrees. Tr...
£307.99 ex-VAT
Garmin B60 Depth and Temperature Through Hull with 20 deg Tilted Element Transducer 8 pin
This entry-level tilted bronze transducer accommodates deadrise angles of 16 to 24 degrees without a fairing. An excellent choice for fiberglass and wood hulls, this 600 W 8-pin transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; and a beamwidth of 45 to 12 degrees. T...
£167.50 ex-VAT
Garmin SS60 Through Hull Transducer 0 Degree Element 8 pin
This stainless steel 600 W 8-pin transducer provides a vertical beam without a fairing and is excellent for fiberglass and wood hulls. It has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45/12 degrees; and a 0 to 7 degree deadrise. Transducer kit comes with ins...
£404.80 ex-VAT
Garmin SS60 Through Hull Transducer 12 Degree Tilted Element 8 pin
This stainless steel 600 W 8-pin transducer provides a vertical beam without a fairing and is excellent for fiberglass and wood hulls. It has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45/12 degrees; and a 8 to 15 degree deadrise. Transducer kit comes with in...
£404.80 ex-VAT
Garmin SS60 Through Hull Transducer 20 Degree Tilted Element 8 pin
This stainless steel 600 W 8-pin transducer provides a vertical beam without a fairing and is excellent for fiberglass and wood hulls. It has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 45/12 degrees; and a 16 to 24 degree deadrise. Transducer kit comes with i...
£330.79 ex-VAT
Garmin B164 Through Hull 1kW Transducer 20 Degree Tilted Element 8 pin
This bronze thru-hull mount transducer performs well at high speeds and is an excellent choice for fiberglass and wood hulls. This flush-mounted housing protrudes less than a quarter of an inch outside the hull and can sit on trailer rollers/bunks without damage. An 8-pin 1 kW transducer, it has a d...
£1,038.40 ex-VAT
Garmin B164 Through Hull 1kW Transducer 12 Degree Tilted Element 8 pin
This bronze thru-hull mount transducer performs well at high speeds and is an excellent choice for fiberglass and wood hulls. This flush-mounted housing protrudes less than a quarter of an inch outside the hull and can sit on trailer rollers/bunks without damage. An 8-pin 1 kW transducer, it has a d...
£658.33 ex-VAT
Garmin B164 Through Hull 1kW Transducer 0 Degree Element 8 pin
This bronze thru-hull mount transducer performs well at high speeds and is an excellent choice for fiberglass and wood hulls. This flush-mounted housing protrudes less than a quarter of an inch outside the hull and can sit on trailer rollers/bunks without damage. An 8-pin 1 kW transducer, it has a d...
£493.33 ex-VAT
Garmin SS60 Through Hull 1kW Transducer 0 Degree Element 8 pin
This flush mounted stainless steel 1 kW 8-pin transducer protrudes less than 1/4" outside the hull and can sit on trailer rollers/bunks without damage. It has a depth of 1,200 to 1,800 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 22x20/6x6 degrees; and 0 to 7 degree deadrise....
£606.67 ex-VAT
Garmin SS60 Through Hull 1kW Transducer 12 Degree Tilted Element 8 pin
This flush mounted stainless steel 1 kW 8-pin transducer protrudes less than 1/4" outside the hull and can sit on trailer rollers/bunks without damage. It has a depth of 1,200 to 1,800 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 22x20/6x6 degrees; and an 8 to 15 degree deadrise....
£791.99 ex-VAT
Garmin SS60 Through Hull 1kW Transducer 20 Degree Tilted Element 8 pin
This flush mounted stainless steel 1 kW 8-pin transducer protrudes less than 1/4" outside the hull and can sit on trailer rollers/bunks without damage. It has a depth of 1,200 to 1,800 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 22x20/6x6 degrees; and 16 to 24 degree deadrise....
Garmin SS270 Through Hull Widebeam Depth and Temperature Transducer 8 pin
Our stainless steel thru-hull mount transducer is perfect for the fisherman who wants to spot more fish in shallow to mid-water depths.
A high performance 1 kW with four times the beamwidth at 200 kHz than the B260, this 8-pin widebeam transducer has a depth of 1,350 to 2,000 ft; an operating fre...
Garmin B258 Through Hull Depth and Temperature Transducer 8 pin
This mid-range 1 kW 8-pin transducer with a narrow beam is good for deep water and bottom definition. It has a depth of 1,500 to 2,200 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 14x23 to 3x5 degrees; and a 0 to 26 degree deadrise. Transducer kit comes with installation instructions....
£693.29 ex-VAT
Garmin B260 1kW Through Hull Depth and Temperature Transducer 8 pin
This bronze thru-hull mount transducer works well in deep water. A popular narrow beam, this 8-pin 1 kW transducer has a depth of 1,800 to 2,500 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 19 to 6 degrees; and a 0 to 20 degree deadrise. Transducer kit comes with installation instruct...
Garmin R99 2kW Through Hull Depth and Temperature Transducer 8 pin
Our plastic thru-hull mount transducer is the most powerful thru-hull transducer for the GSD™ 24.
This 8-pin 2 kW transducer has a depth of 2,500 to 4,000 ft; an operating frequency of 50 to 200 kHz; a beamwidth of 8x17 to 5 degrees; and a 0 to 25 degree deadrise.
Transducer kit comes wi...
Garmin B60 Through Hull Transducer with 20 Degree Tilted Element 8 Pin
This entry-level tilted bronze transducer accommodates deadrise angles of 16 to 24 degrees without a fairing.
An excellent choice for fiberglass and wood hulls, this 600 W 8-pin transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; and a beamwidth of 45 to 12 degrees...
£259.97 ex-VAT
