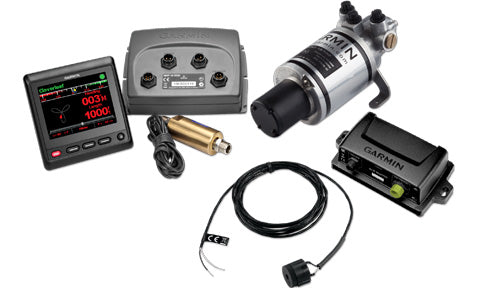

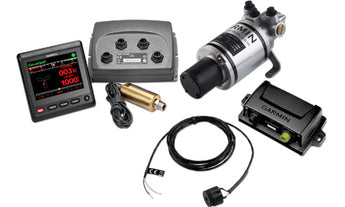

Garmin GHP Compact Reactor 40 Hydraulic Autopilot System with 1L Pump and GHC 20 Display and Shadow Drive

Garmin GHP Compact Reactor 40 Hydraulic Autopilot System with 1L Pump and GHC 20 Display and Shadow Drive

Manufacturer Part No: 010-00705-08 | £1,751.20 ex-VAT
Price Checked √ - Free UK Delivery √

Includes all components of the autopilot with the addition of the GHC 20 autopilot control unit and a Shadow Drive. The Shadow Drive allows you to simply turn the wheel to take control of the helm. Hold a constant course to re-engage the autopilot. Includes: Reactor 40 CCU, GHC 20 helm control display, Shadow Drive, 1 L pump, ECU, ECU power cable, interconnect cable, buzzer, NMEA 2000 drop cables (2 meters), NMEA 2000 power cable, NMEA 2000 T-connectors, NMEA 2000 male and female terminators, documentation

Garmin GHP Compact Reactor Hydraulic Autopilot System with 1l Pump and GHC 20 Display and Shadow Drive

Designed for boats less than 9 m long, the GHP Compact Reactor Hydraulic Autopilot will give the smoothest of rides while maintaining a precise course. Sit back at the helm, and enjoy your time on the water as the solid-state 9-axis AHRS technology delivers a comfortable ride.


Solid-state 9-axis Attitude Heading Reference System

With its advanced solid-state 9-axis AHRS, the GHP Compact Reactor provides you more flexible mounting options. In addition, this new system greatly minimises heading error, course deviation, rudder movement and power consumption, while providing a comfortable ride for all onboard.


Reacts to Conditions

This amazing autopilot actually reacts to the sea to hold your course. Even when the boat is pitching and rolling, you can remain confident that the GHP Compact Reactor autopilot will keep you on your desired course.


Minimal Commissioning and Calibration

All autopilots require commissioning and calibration to work properly. We know you just want to get on the water, so we made this process as fast and easy as possible. That’s the power of simple.


Full Integration with Garmin Electronics

Combined with compatible Garmin networked electronics, you can have full control of the GHP Compact Reactor from wherever you are on the boat. In addition to holding its course in virtually all weather and wind conditions, the system can smoothly perform a variety of pre-programmed trolling and search procedures. Plus, with BlueChart g2 Vision charts (sold separately), you gain optional features like Auto Guidance2, which automatically steers GPS paths.


Stay in Control with optional Shadow Drive Technology

The GHP Compact Reactor supports optional patented Shadow Drive technology. This gives you the security of knowing you maintain control even when the autopilot is engaged. The Shadow Drive system automatically disengages the autopilot if the helm is turned, giving you the freedom to manoeuvre the boat. The autopilot automatically re-engages when you hold a steady course.


Connect to Networked Devices

The GHP Compact Reactor Autopilot can be operated directly from your compatible Garmin chartplotter¹ screen or by using up to 3 GHC™ helm control units. The GHC communicates with the autopilot system via your NMEA 2000® network, so autopilot-heading data can be shared easily with other devices. This enables MARPA and chart overlay when connected to a Garmin radar and chartplotter. An optional handheld wireless remote control is also available.

¹Requires a Garmin echoMAP™ CHIRP 5x/7x/9x chartplotter/sonar combo or GPSMAP® 7400/8000/8400/8500 series chartplotter.
2Auto Guidance is for planning purposes only and does not replace safe navigation operations.

Garmin GHP Reactor Autopilot Course Computer CCU

Our CCU is the brain of the GHP autopilot system, containing sensory equipment used to determine heading and rate of turn. Connect the CCU to the NMEA2000 network to communicate with your GHC 20 and an optional NMEA2000-compatible device. With its advanced solid-state 9-axis AHRS, you are able to mo...

£505.00 ex-VAT

Garmin Autopilot Remote Alarm Buzzer

Wire this buzzer to your course compass unit (CCU) to receive audible alerts from your GHP 10.

£61.63 ex-VAT

Garmin Autopilot ECU Power Cable

Provide power to your electronic control unit (ECU) with our ECU power cable. Simply wire the ECU power cable to your boat battery as one of the last connections made during GHP 10 installation.

£72.47 ex-VAT

Garmin Autopilot Shadow Drive

The GHP 10's patented Shadow Drive technology gives boaters the security of knowing they maintain control even when relying upon the autopilot. Use this Shadow Drive attachment to automatically disengage the autopilot if the helm is turned, allowing the helmsman to manoeuvre the boat.

£293.29 ex-VAT

Garmin GHP Reactor 40 Autopilot Course Computer CCU

The Course Computer Unit is the brain of the Reactor 40 autopilot system, containing sensory equipment used to determine heading and rate of turn. Connect the CCU to the NMEA 2000® network to communicate with your GHC™ 20 and an optional NMEA 2000-compatible devices. Upgrade...

£642.40 ex-VAT

Garmin Belt clip & button for the GHC Handheld Remote Control

Secure your device and keep it in easy reach with this belt clip.

£9.67 ex-VAT

Garmin Carry case for the GHC Handheld Remote Control

Get durable all-around protection for your handheld device with this black nylon carrying case. Wide zippered opening and belt loop provide accessibility and portability. Size 7.4 inches x 3.0 inches x 1.4 inches (18.8 cm x 7.6 cm x 3.6 cm).

£12.96 ex-VAT

Garmin Carabiner button clip for the GHC Handheld Remote Control

Garmin Carabiner button clip for the GHC Handheld Remote Control.

£15.83 ex-VAT

Garmin Battery Door Replacement

Sorry no longer available
Protect the batteries in your GHC 10 remote control with this battery door.

£7.50 ex-VAT

Garmin Wrist lanyard for the GHC Handheld Remote Control

Garmin Wrist lanyard for the GHC Handheld Remote Control.

£8.33 ex-VAT

Garmin Protective Sun Cover for GMI GNX and GHC 4 inch Displays

Use our protective cover to protect your device from the harsh marine environment when not in use.

£7.91 ex-VAT

Garmin Flush Mount Gasket for GMI GNX and GHC 4 inch Displays

Flush or flat mount your GMI 20 digital marine instrument display or GHC 20 marine autopilot control unit with this flush-mount gasket.

£7.91 ex-VAT

Garmin Black Trim Snap Piece Cover Bezel for GMI GNX and GHC 4 inch Displays

Don’t let a lost or broken trim piece blemish the beauty of your helm. Use our replacement trim bezel and mount your GMI 20 digital marine instrument display or GHC 20 marine autopilot control unit. Or, simply use the trim piece to help match the GMI/GHC to the GPSMAP 8000 Glass Helm series or...

£14.17 ex-VAT

Garmin Silver and Black Trim Snap Piece Cover Bezel for GMI GNX and GHC 4 inch Displays

Don’t let a lost or broken trim piece blemish the beauty of your helm. Use our replacement trim bezel and mount your GMI 20 digital marine instrument display or GHC 20 marine autopilot control unit. Or, simply use the trim piece to help match the GMI/GHC to the GPSMAP 8000 Glass Helm series or...

£13.79 ex-VAT

Garmin 7-Pin Power Data Cable With 90 Degree Connector for GMI 20 and GHC 20

Connect your GMI 20 or GHC 20 to a NMEA0183 device with this 7-pin power/data cable. Features 90-degree connector for installation in tight spaces or flush mounting.

£18.79 ex-VAT
  • GHC 20 helm control display
  • Shadow Drive
  • GHP Reactor or Reactor 40 CCU (Course Computer Unit)
  • 1.0 L Pump
  • ECU (Electronic Control Unit)
  • ECU power cable
  • Interconnect cable
  • Buzzer
  • NMEA 2000 drop cable (2 m)
  • NMEA 2000 power cable
  • NMEA 2000 T-connectors
  • Male and female terminators
  • Documentation
