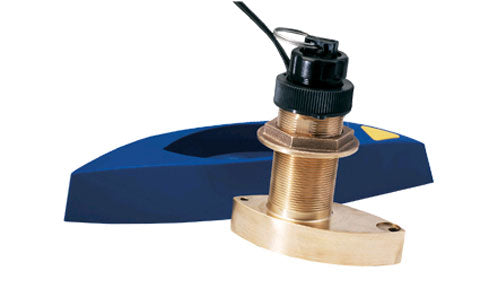

Raymarine B744V 600w 50-200 kHz Speed Temperature Bronze Through Hull Transducer

Raymarine B744V 600w 50-200 kHz Speed Temperature Bronze Through Hull Transducer

Manufacturer Part No: A66091 | £519.63 ex-VAT

B774 short stem Speed, Depth and Temperature Through Hull Bronze Transducer. Compatible hull material: fiberglass and wood. Max Power: 600 watts. Frequency: 200/50 kHz Cable: 30ft (9.1m) cable with connector for connection to CP370, CP300, DSM30, DSM300. Hole diameter for installation: 2 inch. Self-sealing removable paddle wheel insert. High speed fairing block is included.


Features

  • Depth, speed, and temperature in one housing
  • Greatly improved high-speed performance at both 50 kHz and 200 kHz when installed with a high-performance fairing
  • Patented self-closing sea valve reduces water flow into the hull when paddlewheel insert is removed
  • Speed Operating Range: 1 knot to 45 knots (1 MPH to 52 MPH)
  • Fins on sides of paddlewheel cavity provide improved accuracy in cross flow conditions
  • The extra length of the B744VL allows mounting into thicker and/or high deadrise hulls
  • Boat Size: Up to 9 m (30’)



Specifications

  • Weight: 2.5 kg (5.5 lb)
  • Hull Deadrise: Up to 24° with fairing
  • Acoustic Window: Urethane
