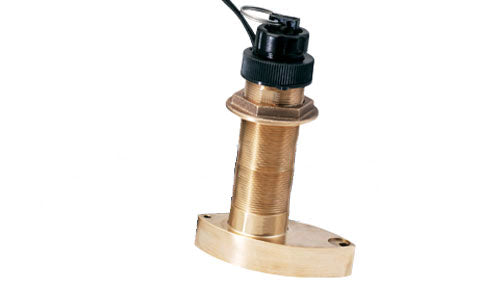

Raymarine B744VL Bronze Depth, Speed, Temperature Through Hull Transducer

Raymarine B744VL Bronze Depth, Speed, Temperature Through Hull Transducer

Manufacturer Part No: A26044 | £520.46 ex-VAT

The B744VL Long Stem Bronze Depth, Speed, Temperature Through Hull Transducer. Fairing block not included. Compatible hull material: wood and fiberglass. Hole diameter for installation: 2 inch. 14 meter cable with spade connectors. Compatible with iTC-5, i50 ST50, ST60, ST40 and i40 instruments.


Features

  • Depth, speed, and temperature in one housing
  • Greatly improved high-speed performance at both 50 kHz and 200 kHz when installed with a high-performance fairing
  • Patented self-closing sea valve reduces water flow into the hull when paddlewheel insert is removed
  • Speed Operating Range: 1 knot to 45 knots (1 MPH to 52 MPH)
  • Fins on sides of paddlewheel cavity provide improved accuracy in cross flow conditions
  • The extra length of the B744VL allows mounting into thicker and/or high deadrise hulls
  • Boat Size: Up to 9 m (30’)



Specifications

  • Weight: 2.5 kg (5.5 lb)
  • Hull Deadrise: Up to 24° with fairing
  • Acoustic Window: Urethane

Raymarine B744V Bronze Depth, Speed, Temperature Through Hull Transducer

The B744V Bronze Depth, Speed, Temperature Through Hull Transducer. Fairing block not included. Compatible hull material: wood and fiberglass. Hole diameter for installation: 2 inch. 14 meter cable with spade connectors. Compatible with iTC-5, i50 ST50, ST60, ST40 and i40 instruments.

£356.67 ex-VAT

Raymarine P66 Depth, Speed, Temperature Transom Mount Transducer

The P66 Depth, Speed, Temperatue Transom Mount Transducer. Compatible hull material: metal, wood and fiberglass. 9 meter cable with spade connectors. Compatible with iTC-5, i50 ST50, ST60, ST40 and i40 instruments.

£174.63 ex-VAT

Raymarine B744VL Bronze Depth, Speed, Temperature Through Hull Transducer

The B744VL Long Stem Bronze Depth, Speed, Temperature Through Hull Transducer. Fairing block not included. Compatible hull material: wood and fiberglass. Hole diameter for installation: 2 inch. 14 meter cable with spade connectors. Compatible with iTC-5, i50 ST50, ST60, ST40 and i40 instruments.

£520.46 ex-VAT

Raymarine DST800 Plastic Depth, Speed, Temperature Through Hull Transducer

The DST800 Speed, Depth Temperature Low Profile Plastic Through Hull Retractable Transducer. Compatible hull material: metal and fiberglass. 13.7 meter cable with spade connectors. Hole diameter for installation: 2 inch. Compatible with iTC-5, i50 ST50, ST60, ST40 and i40 instruments.

£205.46 ex-VAT

Raymarine B744V/B744VL Hi-Speed Fairing Block

B744V/B744VL Hi-Speed Fairing Block

£119.63 ex-VAT

Raymarine Repl.Active Spd/Tmp A66091

Repl.Active Spd/Tmp A66091

£194.33 ex-VAT

Raymarine Blanking Plug B744/SS544/B66Vs

Blanking Plug B744/SS544/B66Vs

£22.00 ex-VAT

Raymarine Speed Insert B744v Transducer

Speed Insert B744V Transducer

£29.63 ex-VAT

Raymarine Blanking Plug, B744VL & B66VL

Blanking Plug, B744VL & B66VL

£22.00 ex-VAT
