Raymarine B75L 300W Depth Through Hull Low CHIRP Transducer 12 Degree Tilt

Raymarine B75L 300W Depth Through Hull Low CHIRP Transducer 12 Degree Tilt

Manufacturer Part No: A80033 | £573.33 ex-VAT

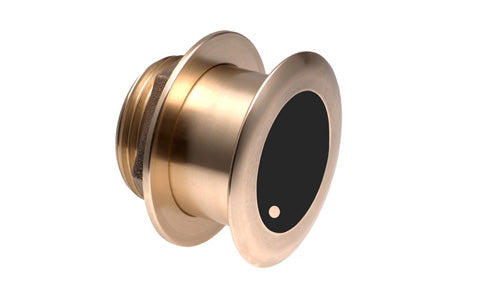

The B75L is a low profile Bronze through hull single element CHIRP transducer. It has a 12 degree tilted element suitable for hulls with 8-15 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 300 watts. Frequency: 40-60 kHz. Beamwidth: 21-32 degrees. Cable: 30ft (9.1m) cable. Require cable A80328  if its the only transducer being connected or cable A102146 if its one of two transducers being connected to a CP450C, CP470 and CP570.




Features

  • Depth & fast-response water-temperature sensor
  • Low—CHIRPS from 40 kHz to 75 kHz, 32° to 21° beamwidth
  • Available in 0° and 12° tilted versions
  • 20 kHz of total bandwidth from one transducer
  • Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth
  • Bronze transducer housing
  • Boat Size: Up to 11 m (36’)
  • Hull Type: Fiberglass or wood
  •






Specifications

  • Hull Deadrise: Up to 24°
  • Acoustic Window: Urethane
  • Weight: 1.4 kg (3 lb)
  •
