![Raymarine B75M 600W Depth Through Hull Medium CHIRP Transducer 12 Degree Tilt](https://media.hudsonmarine.co.uk/uploads/Raymarine/Fishfinder Transducers/A80034-Raymarine B75M 600W Depth Through Hull Medium CHIRP Transducer 12 Degree Tilt.jpg)

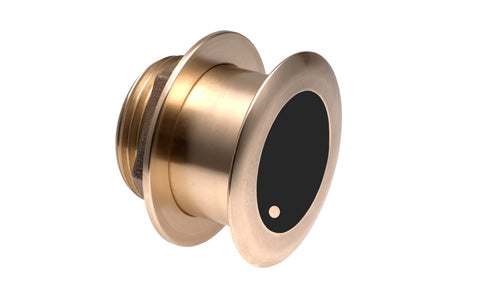

Raymarine B75M 600W Depth Through Hull Medium CHIRP Transducer 12 Degree Tilt
The B75M is a low profile Bronze through hull single element CHIRP transducer. It has a 12 degree tilted element suitable for hulls with 8-15 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 600 watts. Frequency: 95-155 kHz. Beamwidth: 17-26 degrees. Cable: 30ft (9.1m) cable. Require cable A80328 if its the only transducer being connected or cable A102146 if its one of two transducers being connected to a CP450C, CP470 and CP570.
![](https://d1ftp75gsnhq96.cloudfront.net/uploads/Airmar/b75_tilted_installation%20(2).jpg)
Paste Title
- Depth & fast-response water-temperature sensor
- Medium—CHIRPS from 80 kHz to 130 kHz, 24° to 16° beamwidth
- Available in 0°, 12°, or 20° tilted versions
- 50 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
- Bronze transducer housing
- Boat Size: Up to 8 m (25’)
- Hull Type: Fiberglass or wood
![](https://d1ftp75gsnhq96.cloudfront.net/uploads/Airmar/seavee340.jpg)
Paste Title
- Hull Deadrise: Up to 24°
- Acoustic Window: Urethane
- Weight: 1.4 kg (3 lb)
