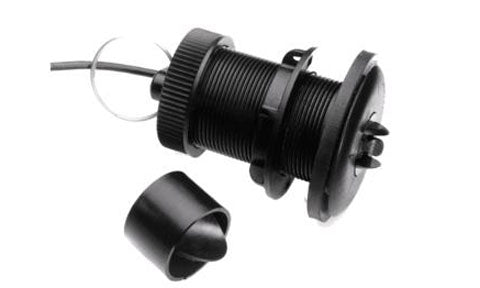

Raymarine P120  L Speed Temperature Low Profile Plastic Through Hull Retractable Trans

Raymarine P120 L Speed Temperature Low Profile Plastic Through Hull Retractable Trans

Manufacturer Part No: E25025 | £167.13 ex-VAT

The P120 Speed Temperature Low Profile Plastic Through Hull Retractable Transducer. Compatible hull material: metal and fiberglass. 20 meter cable with spade connectors. Hole diameter for installation: 2 inch. Compatible with iTC-5, i50 ST50, ST60, ST40 and i40 instruments.

Specifications

  • Weight:
    • 0.7 kg (1.4 lb)—Plastic
    • 1.3 kg (2.8 lb)—Bronze
    • 1.6 kg (3.5 lb)—Stainless Steel
  • Speed Range: 2 knots to 45 knots (2 MPH to 52 MPH)
  • Acoustic Window: Urethane
  • Hull Deadrise: Up to 22°
  • Data Update Rate: 1 per second
  • Pressure Rating: 3 m (10’)
  • Pulse Rate: 17,000 p/nm* (4.8 Hz per knot)—*p/nm = pulses per nautical mile
  • Supply Voltage: 9 VDC to 16 VDC
  • Supply Current: <200 mA
  • Standard Cable Length: 6 m (20’) NMEA 2000 cable, 9 m (30’) Analog
  • Temperature Sensor Accuracy: ±0.5°C (±1.8°F)
  • Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
  • CE Regulation: Complies to IERC60945

Raymarine Speed Transducer Service Kit

Speed Transducer Service Kit for Raymarine P120 and B120 Trandsducers

£47.96 ex-VAT

Raymarine S/Seal Speed Tx Housing

S/Seal Speed Tx Housing

£39.63 ex-VAT

Raymarine Self Seal Transducer Bung

Self Seal Transducer Bung

£33.79 ex-VAT

Raymarine Speed Transducer Paddle Wheel

Speed transducer paddle wheel (Std)

£33.79 ex-VAT

Raymarine P120 Speed Temperature Low Profile Plastic Through Hull Retractable Trans

The P120 Speed Temperature Low Profile Plastic Through Hull Retractable Transducer. Compatible hull material: metal and fiberglass. 13.7 meter cable with spade connectors. Hole diameter for installation: 2 inch. Compatible with iTC-5, i50 ST50, ST60, ST40 and i40 instruments.

Raymarine P120 L Speed Temperature Low Profile Plastic Through Hull Retractable Trans

The P120 Speed Temperature Low Profile Plastic Through Hull Retractable Transducer. Compatible hull material: metal and fiberglass. 20 meter cable with spade connectors. Hole diameter for installation: 2 inch. Compatible with iTC-5, i50 ST50, ST60, ST40 and i40 instruments.

£167.13 ex-VAT

Raymarine ST69 Speed Temperature Transom Mount Transducer

The ST69 Speed Temperature Transom Mount Transducer. Compatible hull material: metal, wood and fiberglass. 9 meter cable with spade connectors. Compatible with iTC-5, i50 ST50, ST60, ST40 and i40 instruments.

£100.79 ex-VAT

Raymarine P371 Speed Temperature Shorty Plastic Through Hull Transducer

The P371 Speed Temperature Shorty Plastic Through Hull Transducer. Compatible hull material: metal and fiberglass. 9 meter cable with spade connectors. Hole diameter for installation: 2 inch. Compatible with iTC-5, i50 ST50, ST60, ST40 and i40 instruments.

£100.79 ex-VAT

Raymarine B120 Speed Temperature Low Profile Bronze Through Hull Retractable Transducer

The B120 Speed Temperature Low Profile Bronze Through Hull Retractable Transducer. Compatible hull material: wood and fiberglass. 13.7 meter cable with spade connectors. Hole diameter for installation: 2 inch. Compatible with iTC-5, i50 ST50, ST60, ST40 and i40 instruments.

£218.29 ex-VAT
