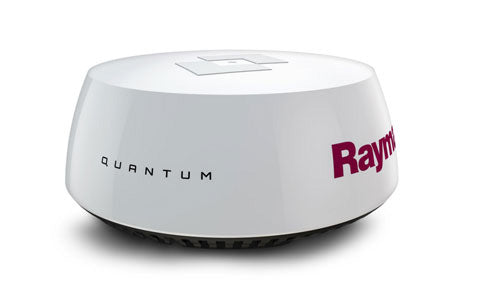

Raymarine Quantum Q24W Wireless Only CHIRP Radar with 10m Power Cable
Manufacturer Part No:
E70344 |
£1,414.63 ex-VAT
Price Checked √ - Free UK Delivery √
Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology. Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum's energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption. Boxed with 10m power cable.
Quantum Radar Launch
Scanstrut SC20 Mast Mount
Mast mount for radome - large, For radomes and small satcom/tv antenna still the first choice for boat owners the world over, scanstrut leads the way with a new generation of mast mounts. Our new, larger mounting foot is stronger, stiffer and now even easier to fit.
£275.00 ex-VAT
Scanstrut LMP-1 Self Levelling Radar Mount – Pole
Can only ship to mainland UK
Self-Levelling Pole Mount for 2kW / 4kW Raymarine, Garmin and Navico BR24 / 3G / 4G radomes, The Self-Levelling Radar Mount range ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventin...
£1,477.96 ex-VAT
Scanstrut LMB-A1 Self Levelling Radar Mount – Backstay
Self-Levelling Backstay Mount (AFT) for 2kW / 4kW radomes, Our Self-Levelling Radar Mount range ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best...
£1,182.96 ex-VAT
Scanstrut LMB-F1 Self Levelling Radar Mount – Backstay
Self-Levelling Backstay Mount (FWD) for 2kW / 4 kW radomes, Our Self-Levelling Radar Mount range ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving t...
£1,143.15 ex-VAT
Scanstrut LMM-1 Self Levelling Radar Mount – Mast
Self-Levelling Mast Mount for 2kW / 4kW radomes, Our Self-Levelling Radar Mount range ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar...
£752.96 ex-VAT
Scanstrut SC101 Pole Mount
UK Shipping only
1.9m pole mount system for 2kW / 4kW radomes - Ray/Garmin, Totally universal, the SC100 Pole Mount installs your radar or satcom antenna onto the deck or transom of your boat. Supplied as a complete kit, you will have everything you need for a quick and easy installation.
£715.46 ex-VAT
Scanstrut SC102 Pole Mount
UK Shipping only
2.5m pole mount system for 2kW / 4kW radomes - Ray/Garmin, Totally universal, the SC100 Pole Mount installs your radar or satcom antenna onto the deck or transom of your boat. Supplied as a complete kit, you will have everything you need for a quick and easy installation.
£766.29 ex-VAT
Raymarine SC20 Mast Mount Bracket for Quantum Radome Scanner
Mast mount bracket for Quantum radome scanner
£294.63 ex-VAT
Scanstrut PTM-R1-1 Tapered Radar Mast
Can only ship to mainland UK
Radar mast for lights, cameras, GPS/ VHF antenna + Raymarine / Garmin / Navico BR24 / 3G / 4G radomes
£1,499.63 ex-VAT
Scanstrut APT-150-01 Aluminium PowerTower®
Aluminium PowerTower (150mm) for radomes (Raymarine, Garmin, Navico)
£292.13 ex-VAT
Scanstrut APT-250-01 Aluminium PowerTower®
Aluminium PowerTower (250mm) for radomes (Raymarine, Garmin, Navico)
£312.96 ex-VAT
Scanstrut PT2001 Composite PowerTower®
350mm / 14" PowerTower for 2kW / 4kW radomes, Expertly designed to install your Radome, open array or small satcom/tv a on the cabin roof, flybridge or radar arch of your powerboat. Providing a clear view of the horizon for maximum antenna performance. Scanstrut’s composite po...
Scanstrut PT2004 Composite PowerTower®
150mm / 6" PowerTower for 2kW / 4kW radomes, Expertly designed to install your Radome, open array or small satcom/tv a on the cabin roof, flybridge or radar arch of your powerboat. Providing a clear view of the horizon for maximum antenna performance. Scanstrut’s composite powe...
£597.50 ex-VAT
Scanstrut SPT1001 Stainless PowerTower®
150mm (6") Stainless PowerTower® for 2kW / 4kW Raymarine; Garmin and Navico BR24 / 3G / 4G radomes, Expertly designed to install your antenna on the cabin roof, flybridge or radar arch of your powerboat, providing a clear view of the horizon for maximum antenna performance. For Radomes, ope...
£329.63 ex-VAT
Scanstrut SC2-1 Pole Mount
1.0m (3.3') deck mounted pole system complete - specify antenna when ordering, With a 100% reliability track record through the toughest sailing conditions, the sc2 pole mount is the preferred choice for offshore sailors the world over. For radomes, open array and larger Satcom/TV antenna.
| GENERAL SPECIFICATIONS | |
| Input Voltage | 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V) |
| Networking | Wi-Fi or wired Ethernet (RayNet) Q24W Wi-Fi Only |
| Antenna Type | Patch Array |
| Power Consumption | Transmit mode 17W; standby mode 7W; sleep mode 2W |
| Range | Scales From 1/16 to 24 nautical miles |
| Transmit Frequency | 9354 to 9446 MHz |
| Peak Power Output | 20W |
| Duplexer | Circulator |
| Pulse Widths (3 dB) | 40 ns to 14.7 μs |
| CHIRP Lengths | 400 ns to 20 μs |
| CHIRP Bandwidth | Up to 32 MHz |
| IF Bandwidth | 26 MHz |
| Noise | Less than 4 dB |
| Max. Range Scale | from 1/16 to 24 nautical miles |
| Beamwidth (nominal) | 4.9º horizontal and 20º vertical |
| Polarisation | Horizontal |
| Waterproofing | IPX6 |
| Weight | 5.6 kg (12.3 lb) |
