Raymarine WG-1 Wireless Gateway
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The WG-1 Wireless Gateway is the network link for the Raymarine RCU-1 handheld autopilot remote. It connects to the SeaTalkng / NMEA 2000 network through its DeviceNet connector (a SeaTalkng adaptor cable is included) and talks to the remote over Bluetooth 5.1, at up to around 30 m with a clear line of sight. Every RCU-1 installation needs one, and a single gateway can run up to three remotes at the same time.

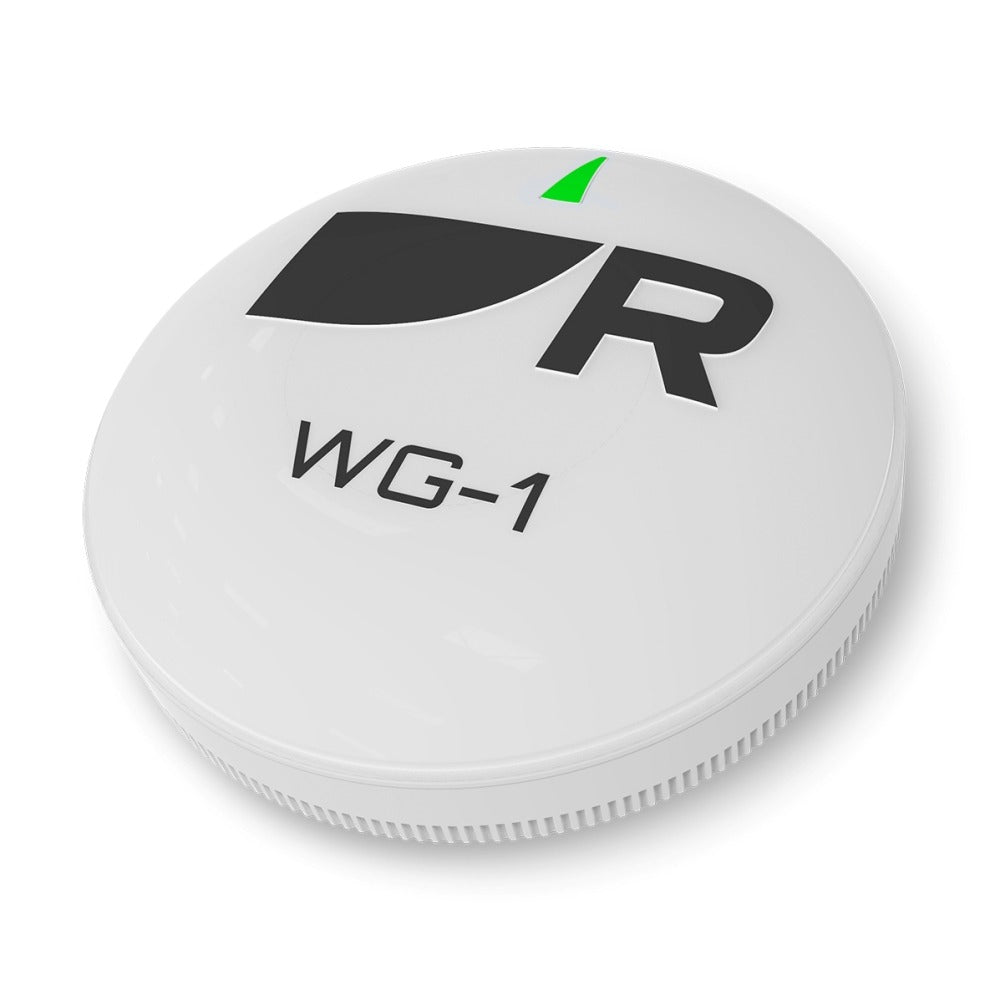

The gateway is a compact, low-profile puck about 108 mm across and 27 mm high. It draws its 12 V supply from the network (LEN 1), has a diagnostics LED and is rated IPx6 / IPx7, so it can sit above or below decks. It can be surface mounted with the supplied studs, or fitted to a bulkhead or rail using the optional A80437 deck mounting kit or the A80370 pole / rail adaptor. Connected remotes can be managed from a networked LightHouse 4 chartplotter.
This listing is the WG-1 on its own (R70947): a replacement gateway, or the gateway for an RCU-1 handset (A80835) bought separately. If you need both, the RCU-1 with WG-1 kit (E70718) comes pre-paired. The RCU-1 works with Raymarine Evolution autopilots only, and only one WG-1 is supported per network. If you would like a hand checking your system, our team is happy to advise.
PRODUCT DETAILS
- Bluetooth 5.1 gateway linking the Raymarine RCU-1 autopilot remote to SeaTalkng / NMEA 2000
- Required for every RCU-1 installation
- Connects up to three remotes at the same time
- Up to around 30 m range with a clear line of sight
- Powered from the network: 12 V dc, LEN 1 (50 mA max.)
- Waterproof to IPx6 / IPx7, for above or below decks
- DeviceNet connector with SeaTalkng adaptor cable supplied
- WG-1 Wireless Gateway
- Waterproof gasket
- 3 x M4 threaded studs and finger nuts (for mounting)
- SeaTalkng to DeviceNet adaptor cable
No exploded diagram available for this product.
No compatible transducers listed for this product.
General
| Product type | Bluetooth wireless gateway |
| Model | WG-1 |
| Raymarine part number | R70947 |
| Function | Connects compatible Raymarine Bluetooth devices to the SeaTalkng / NMEA 2000 network |
Compatibility
| Compatible devices | Raymarine RCU-1 Autopilot Remote Control (A80835); also supplied with the WG-1 as kit E70718 |
| Autopilot systems (with RCU-1) | Raymarine Evolution-series autopilots, EV-1 / EV-2 sensor on software v3.21 or later |
| Simultaneous connections | Up to 3 devices |
| Paired devices | Up to 5 Bluetooth devices paired at any one time |
| Gateways per network | One WG-1 per SeaTalkng / NMEA 2000 system |
| Connection management | From a networked LightHouse 4 chartplotter / MFD (Settings > Network > WG-1 Wireless Gateway) |
Connectivity
| Network connection | NMEA 2000 DeviceNet connector; SeaTalkng to DeviceNet adaptor cable supplied |
| Wireless | Bluetooth 5.1 |
| Range | Up to 30 m (98.43 ft) with clear line of sight |
Power
| Nominal supply voltage | 12 V dc, supplied by the SeaTalkng / NMEA 2000 network |
| Operating voltage range | 9 V dc to 16 V dc (protected up to 32 V dc) |
| Power consumption | 50 mA max. |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
Physical
| Diameter | 108.48 mm (4.27 in) |
| Height | 26.61 mm (1.05 in) |
| Weight (gateway only) | 129 g (4.55 oz) |
| Status indicator | Diagnostics LED |
Environmental
| Waterproof rating | IPx6, IPx7 |
| Operating temperature | -25 °C to +55 °C (-13 °F to 131 °F) |
| Storage temperature | -25 °C to +70 °C (-13 °F to 158 °F) |
| Relative humidity | 93% |
| Location | Above or below decks |
Mounting
| Supplied fixings | Surface mounting with the supplied M4 threaded studs and finger nuts |
| Optional mounting kits | Deck mounting (clamshell / riser) kit A80437 for surface or bulkhead mounting; pole / rail mounting adaptor kit A80370 |
| Location guidance | Not on top of a mast; at least 1 m (3.28 ft) from compasses, cables, motors, VHF radios and other transmitters; out of radar beams |
Conformance
| Product markings | UKCA, CE, WEEE, FCC, ISED, RCM (Australia / New Zealand) |
