Simrad AP44 VRF High Capacity Pack, Precision-9, RPU-160 Pump, NAC-3

Simrad AP44 VRF High Capacity Pack, Precision-9, RPU-160 Pump, NAC-3

Manufacturer Part No: 000-13562-001 | £2,430.00 ex-VAT

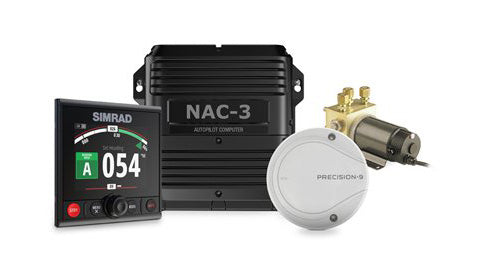

AP44 VRF high capacity pack. Comprising of AP44 controller, Precision-9 compass, RPU-160 pump and NAC-3 autopilot computer

Key Features

  • Reliable autopilot performance based on Simrad Continuum steering technology
  • Recommended for boats above 10 metres (35 feet) in length
  • High-current output of 30 amps continuous, 50 amps peak
  • Clutch output (3 amps maximum)
  • Compatible with high-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
  • Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats
  • Supports Simrad RF25 and RF300 rudder feedback units
  • NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays
  • NMEA 0183® input



Features

Simrad Continuum steering technology

Every Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues today at Simrad Yachting’s autopilot research hub in Norway. This legacy is exemplified by the Continuum algorithm: the software that drives Simrad steering technology. Continuum brings all those years of research and on-water experience to your helm, for a smart pilot you can trust to take the wheel.

High-Current Output

The NAC-3 Autopilot Computer is recommended for boats above 10 metres (35 feet) in length. It is rated for high-current output of up to 30 amps continuous and 50 amps peak, plus a clutch output; this is suitable to operate high-current drive pumps including the Simrad RPU160 and RPU300, mechanical drives such as the Simrad DD15, hydraulic linear drives such as the HLD2000 series, and solenoid valves.

Virtual Rudder Feedback

Simrad Virtual Rudder Feedback (VRF) technology eliminates the need to install a separate rudder feedback unit aboard outboard and sterndrive (inboard/outboard) boats. This reduces overall autopilot system cost and complexity, and is ideal where a feedback unit is impractical due to mechanical constraints.

Rudder Feedback Units

Rudder feedback units are sensors that connect to your rudder via a mechanical linkage and continuously report actual rudder position to your autopilot computer – allowing the Simrad Continuum steering algorithm to make the best-informed steering decisions possible. These sensors are typically used on boats with inboard engines, on larger vessels, and in special applications where Virtual Rudder Feedback may not be suitable. The NAC-3 supports SimNet or NMEA 2000® connected Simrad RF25 feedback units, and rudder feedback sensors with variable frequency output including the Simrad RF300.

Easy Installation

Industry-standard NMEA 2000® networking and NMEA 0183® input allow simple connectivity to heading sensors, rudder feedback units, autopilot controllers, and multifunction displays located anywhere on board.

Parts included

1. 1 x NAC-3 Autopilot Computer - IPX5

2. 4 x Fixing screws

3. 1 x Micro-C Drop cable (male) - 0.6 m

4. 1 x Micro-C T-Joiner

5. 7 x Connectors

6. 1 x 30 Amp fuse

7. Warranty card & literature pack

Key Features

  • Heading, Rate Of Turn (ROT), pitch and roll output over NMEA 2000®
  • Accurate and reliable solid-state sensor technology
  • Heading accuracy of ±2° after calibration
  • Easily adjustable mounting bracket allows bulkhead or up-mast installation
  • IPX7 waterproof for external up-mast mounting on steel hulled vessels
  • Simple installation with a single NMEA 2000® connection



Features

NMEA 2000® Heading & ROT Output

With NMEA 2000® output, the Simrad Precision-9 Compass provides heading, Rate Of Turn (ROT), pitch and roll information to connected equipment including autopilots, radar, multifunction displays, and other navigational systems.

Solid-State Sensor Technology

The Precision-9 Compass incorporates a sophisticated solid-state sensor array based on MEMS technology. This high-precision array measures motion on nine separate axes in order to calculate the most accurate heading and rate-of-turn information possible, avoiding many common limitations of conventional fluxgate electronic compasses and delivering heading accuracy of ±2 degrees after calibration.

Mount Almost Anywhere

An easily adjustable mounting bracket allows the Precision-9 Compass to be installed on any vessel, in almost any location. The compass may also be mounted directly to any flat surface and, with an IPX7 waterproof rating, external up-mast installation is possible on steel hulled vessels to avoid magnetic interference. Installation is further simplified by NMEA 2000® connectivity, with a single cable carrying both power and data.
