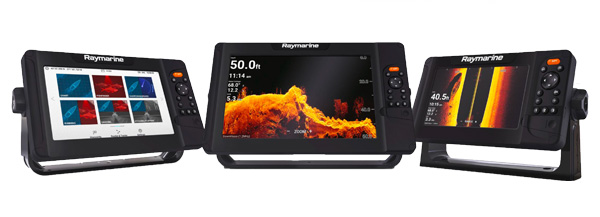

Raymarine Element Explore

Speed and Simplicity

Element HV - GPS - Chartplotter - CHIRP -DownVision, SideVision, and RealVision 3D Sonar

Element S - GPS - Chartplotter - Radar - High CHIRP Sonar



NEW Element S

Element HV Intro Video

Element HV Video

NEW Raymarine Element S

The Element S series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor off ers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful color. Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confi dence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays.


Key Features

  • High contrast, super bright display for all weather conditions
  • Category-leading quad-core processor delivers fast chart redraw and responsive performance
  • Support for Raymarine LightHouse™, LightHouse NC2, Navionics, and C-MAP chart formats
  • Simple and straightforward LightHouse Sport OS, upgraded with sailing and cruising profiles and new sailing and cruising data displays
  • Built-in single channel High CHIRP sonar for fish finding and dependable bottom tracking.  Compatible with CPT-S transom and thru-hull transducers
  • Radar ready- connect Element to Quantum radar over Wi-Fi
  • Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF

And More Features

  • From sailing to power cruising to fi shing, the LightHouse Sport OS is easy to customize to your type of boating
  • An oversized waypoint key for quick and easy marking of your favorite locations
  • Three user-programmable quick keys to access your favorite pages with one button push
  • Live menus let you customize charts while seeing the navigation display change in real time

Element S for Cruisers and Sailors


Connections

  • Power
  • NMEA2000 integration.
    • AIS,
    • Autopilot,
    • Sailing instruments,
    • Engines, tanks sensors,
    • VHF
  • Wi-Fi connection to Quantum radar

High CHIRP Sonar

  • Outstanding ability to track bottom to depths of up to 800ft

  • Basic fish finder for bottom material recognition during anchoring

  • 8-pin transducer connector for direction connection of Raymarine CPT-S transom or thru-hull transducers


LightHouse 3 Sport OS

  •  Dedicated keys for the most common acttions
    • Dropping waypoints
    • Zoom / Range Changes
    • User-programmable app key to enable quick page changes
  • New "most recent" waypoint menu
    • Allows quick access to most commonly used waypoint symbols
  • Plentiful Storage
    • 10,000 Waypoints (Up to 200 groups)
    • 250 Routes (Up to 5000 waypoints each)
    • 15 Tracks (Up to 10,000 points each)
  • Running Mode emphasizes all of your critical infomation when at speed
  • User-enabled or automatically activated when boat speed exceeds 10 MPH

Sailing and Cruising Features

  • New sailing profile w/ boat icon and updated dashboard pages
  • Supports for Expanded NME2000 Sentences
  • Airmar SmartSenson Support
  • Analog Transducer Support


Raymarine Element HV

Knowledge is power—and the Element™ CHIRP sonar/GPS series from Raymarine gives you the power to make smarter decisions on the water. Built for anglers that want to be one step ahead of the game, Element delivers the sharpest view of the underwater world with HyperVision™ 1.2 megahertz super high-resolution sonar technology. HyperVision technology takes DownVision, SideVision, and Raymarine RealVison 3D sonar to the next level of precision imaging and fish identification, letting you see structures, vegetation, and fish with photo-like clarity. And the power of Element doesn’t stop there—an onboard quad-core processor delivers instantaneous chart redraw, fast response, and smooth RealVision 3D imaging. To keep you on target, Element features simple keypad controls and an angler-centric user interface so you can focus on the fish—not the helm. An oversized waypoint key puts you on your favorite spots, and Element’s RealBathy™ personal depth map generator lets you make your own high definition bathymetric maps on the fly.


Key Features

• High-visibility sunlight viewable 7”, 9”, and 12” displays
• HyperVision CHIRP technology delivers super-high resolution sonar imagery
• Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
• Compact HV-100 all-in-one transducer combines Hyper, Down, Side, RealVision and conventional CHIRP sonar channels into one simple installation
• Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
• 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100’ while 350kHz Down and SideVision delivers photo-like imaging up to 600’



And More Features

• Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness
• Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots
• Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live support
• User-programmable keys allow quick access to most-used configurations
• Support for Raymarine LightHouse NC2 with Fishing Hot Spots, Navionics, C-MAP and other regional charting options
• NMEA2000 networking for VHF, engine, tanks, and heading sensor integration


Turn Up the Resolution with HyperVision


Element Sonar Technology

  • Outstanding resolution paired with spot-on positional information provides a level of sonar functionality that has never before been seen
  • 1.2MHz HyperVisionTM provides super high-resolution imaging - Range: Up to 125ft in DownVision and SideVision modes
  • 350kHz Standard imaging for great resolution and exceptional range - Range: Up to 600ft down and 300ft side
  • 200kHz Traditional sonar to mark fish and track bottom at speed - Range: Up to 900ft down
  • HyperVisionTM overlay on RealVision 3D providing an unprecedented level of resolution and positional awareness
  • Unlike Axiom, Element is not equipped with an AHRS stabilized transducer so RealVision 3D only operates in scrolling mode

HyperVision Down

High Resolution HyperVision Down


HyperVision Side

High Resolution HyperVision Side


HyperVision Down, Side and 3D

High Resolution HyperVision 3D


HyperVision CHIRP Transducers

  • HV-100 Transom (200kHz/350kHz/1.2MHz)
  • HV-300TH Plastic Thru-Hull Single (200kHz/350kHz/1.2MHz)
  • HV-300THP Plastic Thru-Hull Pair (200kHz/350kHz/1.2MHz)



Alterative Transducers Supported

  • Dragonfly transducer support (via adapter cable)
  • CPT-S/CPT-DVS transducer support (via adapter cable)
  • MinnKota transducer support (via adapter cable)
  • MotorGuide transducer support (via adapter cable)

All New OS LightHouse Sport


LightHouse Sport OS Features

  • Activity-centric operating system
  • Optimized for keypad controls
  • Intuitive and quick-to-learn
  • Preconfigured application pages for common fishing and cruising activities - Casting, Jigging, Trolling, Pitching, Flipping, etc
  • Dedicated keys for the most common actions - Dropping waypoints - Zoom / Range Changes - User-programmable app keys to enable quick page changes
  • New “most recent” waypoint menu - Allows quick access to the most commonly used waypoint symbols
  • Internal Storage - 10,000 Waypoints (Up to 200 groups) - 150 Routes (Up to 250 waypoints each) - 15 Tracks (Up to 10,000 points each)
  • Light and Dark colour palette
  • Support for Raymarine LightHouse NC2 Charts with Fishing Hot Spots, Navionics, C-MAP and other regional charting options

Dedicated Keys For Common Actions

  • Dropping waypoints
  • Zoom / Range Changes
  • User-programmable app keys to enable quick page changes




Changeable Colour Pelette

Light and Dark colour palette

RealBathy ™ Personal Sonar Map Generator

  • Real-time 1 foot contours
  • Variable overlay transparency
  • Safe depth colourization

RealBathy is available on all Element products and does not require LNC2 cartography, but it does require a microSD card with available space inserted into the card reader.


Raymarine Element Range

7, 9 and 12 inch displays - Click on Find out More on models below to find out pricing and model variance.

Raymarine Element 7 HV

Price Checked √ - Free UK Delivery √ On Offer

Knowledge is power, and the Element 7 HV CHIRP Sonar -GPS  from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision 1.2 megahertz sonar technology, turns up the resolution of DownVi...


ID: 160041 | £454.13 ex-VAT

Raymarine Element 9 HV

Price Checked √ - Free UK Delivery √ On Offer

Knowledge is power, and the Element 9 HV CHIRP Sonar -GPS  from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision 1.2 megahertz sonar technology, turns up the resolution of DownVi...


ID: 160045 | £704.13 ex-VAT

Raymarine Element 12 HV

Price Checked √ - Free UK Delivery √ On Offer

Knowledge is power, and the Element 12 HV CHIRP Sonar -GPS  from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision 1.2 megahertz sonar technology, turns up the resolution of DownVision...


ID: 160049 | £1,370.79 ex-VAT
