Lowrance

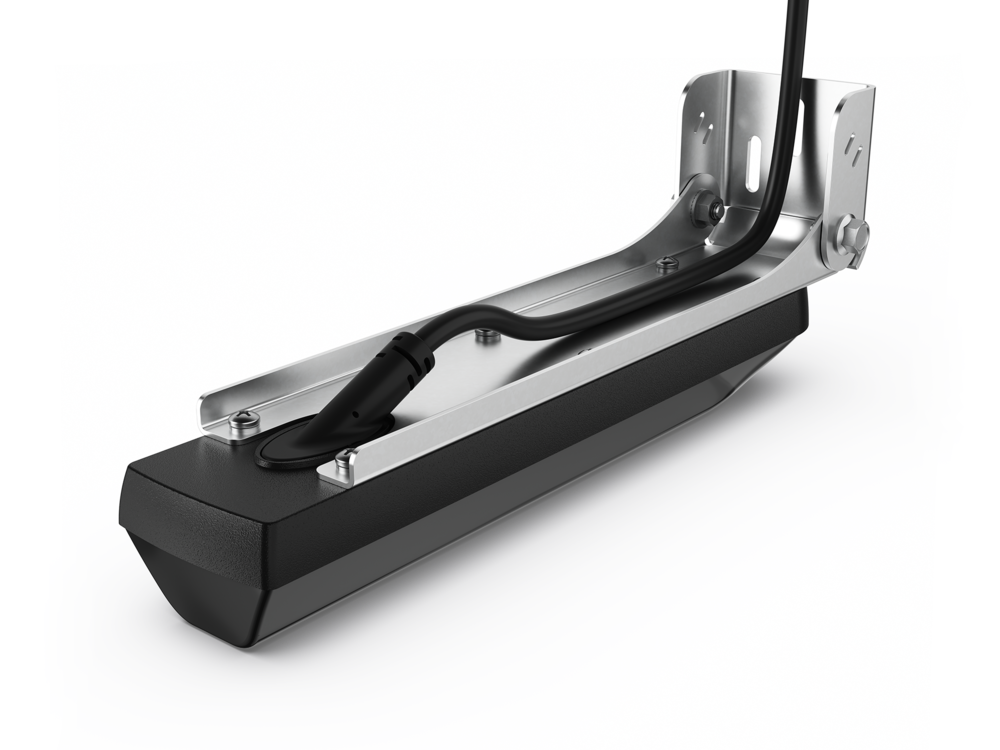

ActiveImaging HD 3-in-1 FishReveal Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
Step up to the ultimate fishfinding clarity with new, high-definition (up to 1.2MHz) Active Imaging™ HD sonar.
See the Difference
Our clearest sonar ever, Active Imaging™ HD delivers the highest-definition views of Lowrance® CHIRP, SideScan and DownScan Imaging™. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs and more.
Complete FishReveal Views
Get the best of CHIRP sonar and Imaging sonar on one display with FishReveal™. First introduced with DownScan Imaging™, FishReveal is now available on SideScan*, making it quicker and easier to recognise fish targets – along with picture-like images of structure on both sides of your boat.
*The FishReveal SideScan view requires an optional S3100 sonar module.
Designed for Clarity
The Active Imaging™ HD transducer not only delivers three key sonar technologies – Lowrance® CHIRP, SideScan and DownScan Imaging™ – in one convenient package, but also features a new transducer design that boosts signal clarity.
*requires S3100 sonar module and relevant transducer for Fish Reveal SideScan.
Key features
- High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure
- CHIRP with superb clarity and target separation
- FishReveal™ with new SideScan* view as well DownScan
- Supports Medium and High CHIRP (83/200kHz) + 700/1200kHz and 455/1075kHz frequencies
- Smart transducer design boosts signal clarity
- Compatible with Lowrance HDS PRO and Simrad NSS 4 or with a S3100 module with HDS LIVE, HDS Carbon, Elite FS and Simrad NSSevo3S, NSS evo3 and NSX series displays
- *Requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS PRO and NSS 4
PRODUCT DETAILS
- High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure
- CHIRP with superb clarity and target separation
- FishReveal™ with new SideScan* view as well DownScan
- Supports Medium and High CHIRP (83/200kHz) + 700/1200kHz and 455/1075kHz frequencies
- Smart transducer design boosts signal clarity
- Compatible with Lowrance HDS PRO and Simrad NSS 4 or with a S3100 module with HDS LIVE, HDS Carbon, Elite FS and Simrad NSSevo3S, NSS evo3 and NSX series displays
- *Requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS PRO and NSS 4
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Environment
| Waterproof Rating | IP67 |
| Shock Vibration | 100,000 cycles of 20 G |
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
| Storage Temperature Range | -22°F to 158°F (-30°C to 70°C ) |
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
Physical
| Mounting Type | Transom, Flush, Jackplate |
| Weight | Transducer: 2.67 lbs (1.21 kg) |
Other
| Warranty Period | 1 Year + 4 additional years of upgrade options; Totaling 5 years |
| Interface | Direct Connect to: HDS Pro S3100; Ehternet to: HDS Live, Elite FS; Requires S3100 Module |
