This product has been discontinued by Lowrance and is no longer available to buy.
Lowrance

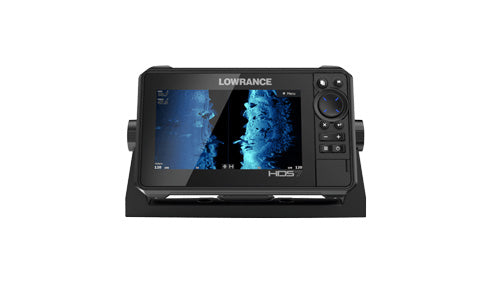

Lowrance HDS-7 Live No Transducer
Description
Fishfinder/chartplotter featuring IPS touchscreen and support for ActiveTarget™ Live Sonar, Active Imaging™ 3-in-1 (CHIRP/SideScan/DownScan Imaging™) and FishReveal™.
Year after year, more fishing tour pros use HDS than all other fishfinder brands combined. HDS LIVE 7 is will undoubtedly carry on that tradition behind premium performance and support for the best collection of innovative sonar features available – from new Active Imaging™ and StructureScan® 3D with Active Imaging to FishReveal™ and LiveSight™ real-time sonar – you will experience a new level of fishfinding performance with HDS LIVE 7.
Navigating to your favourite fishing spot or finding a new one has never been easier, behind the best suite of navigation features ever built into an HDS display – including preloaded high-detail US, Australia, New Zealand or worldwide basemap, C-MAP® Easy Routing, Navionics® Autorouting* capability and C-MAP Genesis Live mapping.
HDS LIVE 7 simplifies your time on the water with onscreen text messages and call notifications, and an intuitive user interface that makes HDS LIVE even easier to use.
Featuring a high-resolution 7-inch SolarMAX™ HD screen, HDS LIVE 7 provides industry-leading images that are always easy to see – from any angle, in direct sunlight or even through polarised sunglasses.
HDS LIVE delivers powerful fishfinding sonar with a high-performance, dual-core processor that produces smooth, lag-free operation, responsive touchscreen performance, and faster chart redraws and sonar updates.
*Navionics subscription required. See Navionics.com for more details
Key features
- Features 7-, 9-, 12- and 16-inch models
- Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready*
- Active Imaging™ 2-in-1 (Side/Down) sonar ready*
- StructureScan® 3D with Active Imaging enhancements
- High-resolution ActiveTarget™ Live Sonar ready*
- Smartphone notifications
- Powerful quad-core processor**
- High-performance dual-core processor
- Programmable keys**
- C-MAP Genesis Live onscreen mapping
- FishReveal™ Smart Target View
- Six-panel, splitscreen capability**
- Full high-definition SolarMAX HD screen (HDS LIVE 16 only)
- High-resolution SolarMAX™ HD multi-touch screen
- Preloaded worldwide basemap
- C-MAP Easy Routing, Navionics Autorouting capability
- Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
- Live Network Sonar
- SiriusXM® Marine Weather and Audio compatible
- Wireless and Bluetooth® connectivity
- Heat Map Chart Overlay
- Enhanced Surface Clarity
- Quick Access Control Bar
- Touchscreen control of MotorGuide® Xi5 Trolling Motor , Outboard Pilot and Power Pole® anchors
- Radar and SonicHub®2 audio server connectivity
- NMEA 2000® engine support
- Optional mapping upgrades include C-MAP, Navionics® and more
- *Transducer sold separately **HDS LIVE 16/12 only
In the box
- 1 x HDS-7 LIVE / Elite F 7 Bracket
- 1 x HDS-7 LIVE Suncover
- 1 x HDS-7 LIVE Bezel and SD-Card Door
PRODUCT DETAILS
- Features 7-, 9-, 12- and 16-inch models
- Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready*
- Active Imaging™ 2-in-1 (Side/Down) sonar ready*
- StructureScan® 3D with Active Imaging enhancements
- High-resolution ActiveTarget™ Live Sonar ready*
- Smartphone notifications
- Powerful quad-core processor**
- High-performance dual-core processor
- Programmable keys**
- C-MAP Genesis Live onscreen mapping
- FishReveal™ Smart Target View
- Six-panel, splitscreen capability**
- Full high-definition SolarMAX HD screen (HDS LIVE 16 only)
- High-resolution SolarMAX™ HD multi-touch screen
- Preloaded worldwide basemap
- C-MAP Easy Routing, Navionics Autorouting capability
- Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
- Live Network Sonar
- SiriusXM® Marine Weather and Audio compatible
- Wireless and Bluetooth® connectivity
- Heat Map Chart Overlay
- Enhanced Surface Clarity
- Quick Access Control Bar
- Touchscreen control of MotorGuide® Xi5 Trolling Motor , Outboard Pilot and Power Pole® anchors
- Radar and SonicHub®2 audio server connectivity
- NMEA 2000® engine support
- Optional mapping upgrades include C-MAP, Navionics® and more
- *Transducer sold separately **HDS LIVE 16/12 only
- 1 x HDS-7 LIVE / Elite F 7 Bracket
- 1 x HDS-7 LIVE Suncover
- 1 x HDS-7 LIVE Bezel and SD-Card Door
No exploded diagram available for this product.
9PIN HIGH SPEED SKIMMER L/H PK ASY
9PIN HIGH SPEED SKIMMER M/H PK ASY
B&G, Lowrance, Simrad TotalScan Skimmer Transducer
B&G, Lowrance, Simrad TotalScan Thru Hull Transducer Medium High CHIRP
B&G, Lowrance, Simrad TotalScan Thru Hull Transducer with Low and High CHIRP
B&G, Lowrance, Simrad XSonic Airmar B258 Bronze 50-200 khz Through Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar B45 Bronze 50-200 khz Through Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar M260 50-200 kHz In Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar P319 600W 50-200 kHz Plastic Through Hull
B&G, Lowrance, Simrad XSonic Airmar P66 Plastic 50-200 khz Transom mount transducer
B&G, Lowrance, Simrad XSonic Airmar P79 Plastic 50-200 kHz In Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 kHz Through Hull 0 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 12 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 20 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS260 1 kW 50-200 khz Through Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 0 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 12 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 20 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar TM260 Plastic 50-200 khz Transom mount transducer
B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 0 degree tilt
B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 12 degree tilt
Lowrance ActiveTarget 2 (Module + Transducer + Mounts)
B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 20 degree tilt
B&G, Lowrance, Simrad XSonic Skimmer HDI 50-200, 455-800 kHz Transom Mount
B&G, Lowrance, Simrad XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount
Lowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance Active Imaging 3 in 1 Transducer 1.8m cable
Lowrance Active Target Live Sonar, Transducer Module and Cables
Lowrance B&G Simrad Active Imaging 3-IN-1 Transducer
Lowrance, Simrad LSS-2 - StructureScan HD Skimmer transducer
Lowrance, Simrad Plastic StructureScan HD thru-hull transducer
Lowrance, Simrad Stainless Steel StructureScan HD Pair off thru-hull transducers
Lowrance, Simrad Stainless Steel StructureScan HD Sonar thru-hull transducer.
Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 20 Degree Tilt
Lowrance Halo20 Pulse Compression Radar
Lowrance Halo20+ Pulse Compression Radar
Lowrance Halo 24 Radar
Lowrance NAC-1 Outboard Hydraulic Pilot Pack
Lowrance Point-1 GPS Glonass With Electronic Compass
Lowrance Active Imaging 3 in 1 Transducer 1.8m cable
Lowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance Active Target Live Sonar, Transducer Module and Cables
Lowrance ActiveTarget 2 (Module + Transducer + Mounts)
Lowrance HDI Skimmer Transom Mount transducer
Lowrance HDI Skimmer Transom Mount transducer with Temperature
Lowrance Bullet Skimmer Transducer
Lowrance SplitShot Skimmer Transducer
Lowrance TripleShot Skimmer Transducer
Lowrance, Branded XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer
Lowrance, Simrad NAC-1 Autopilot Computer
B&G, Simrad NAC-2 Autopilot Computer
B&G, Simrad NAC-3 Autopilot Computer
Image coming soonB&G Halo20+ Pulse Compression Radar
B&G Halo20 Pulse Compression Radar
Image coming soonGhost lift assist kit 47"
Recon Saltwater 54" Trolling Motor
Display
| Display Resolution | 1024 x 600 |
| Screen Brightness | >1200 Nits |
| Backlight Color | Pure White LED |
| Viewing Angles | 80° top/bottom, 80° left/right |
Connectivity
| NMEA 2000 Connectivity | 1x Micro-C |
| SD Card Storage | 2 micro SD cards up to 32GB |
| Ethernet Ports | 1x 100 Mbit, 6 max MFD's on a network |
| Wifi | Internal 802.11b/g/n and Compatible with WiFi-1 Module |
| Bluetooth | Integrated Bluetooth 4.0 with support for Bluetooth Classic |
| Video | Output: NoInput: Composite video RCA - singlechannel via optional adaptor |
| 0183 sentence | TX / RX - GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX - NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX - SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX - CompassReceive HDG HDT HDMTransmit HDGTX / RX - WindReceive MWV MWDTransmit MWV MWDTX / RX - AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000. |
| N2K PG Ns | Receive only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration |
Cartography
| Charts Supported | C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners |
Autopilot
| Steering Modes | CourseHeadingWaypointPower Steer |
| Manoeuvres / Turn Patterns | CourseHeadingWaypointPower SteerU-TurnC-TurnSpiralZigzagSquareLazy-S |
Electrical
| Recommended Fuse Rating | 5A |
| Supply Voltage | 12 v DC (10.8-17VDC) |
| Power Consumption Max | 2.4A @ 13VDC with Full Backlight, Sonar on |
| Power Consumption Min | 1.7A @ 13VDC with Full Backlight, Sonar on |
| Power Consumption Typical | 1.7A @ 13VDC withwith Full Backlight, Sonar on |
Environment
| Shock Vibration | 100,000 cycles of 20 G |
| Waterproof Rating | IPX7 with card door closed |
| Storage Temperature Range | 4°F to 140°F (-20°C to 60°C ) |
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
GPS
| GPS Receiver Channels | 16 |
| Time to First Fix | 30s |
| Update Rate | 10 Hz |
| Position Accuracy | 20m RMS |
| Correction | DGPS, WAAS |
MFD
| Digital Switching | CzoneNaviop |
| Internal Storage | 8.0 GB Internal |
| Weather | SiriusXM via WM-3 (USA only) |
| GPS | 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS |
| AIS | AIS Chart and Radar overlay. Target vessel details. |
| Waypoints, Routes, Tracks | 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail |
| Cartography Included | C-MAP World Background (ROW models)Navionics basemap (AMER and ROW models) |
| Multimedia | SonicHubSonicHub2FusionLink productsany NMEA 2000 compliant Marine Aduio products |
| Autopilot | Outboard PilotMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway |
| Sonar Compatibility | Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with: SonarHubStructureScanStructureScan3D |
Physical
| Compass Safe | 12" (300mm) |
| Weight | 3.04lb (1.38kg) |
| Dimensions | 9.21in (234.01mm) x 5.73in (145.6mm) x 3.06in (77.7mm) |
| Mounting Type | Gimbal BracketFront Dash Flush MountRear Dash Flush Mount |
Other
| Warranty Period | 2 Year + 3 additional years ofupgrade optionsTotaling 5 years |
| Interface | Touchscreen:Full Multi-touch touchscreenKeypad:8-way directional keypadZoom +/-ExitEnterMenuWaypointPower/Light |
| Languages | Language on products will vary depending on where you purchase the unit. However, all units since 2017 come with basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska. Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文 . Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe. Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ Українська. Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano |
