Lowrance

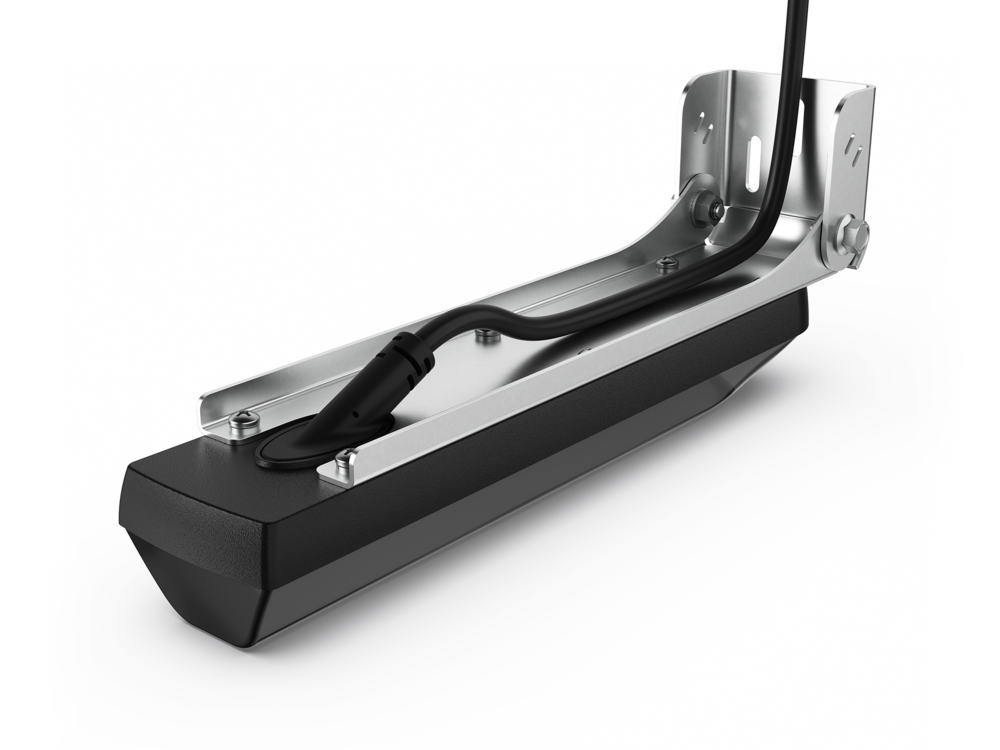

ActiveImaging HD 3-in-1 Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
Step up to the ultimate fishfinding clarity with new, high-definition (up to 1.2MHz) Active Imaging™ HD sonar.
See the Difference
Our clearest sonar ever, Active Imaging™ HD delivers the highest-definition views of Lowrance® CHIRP, SideScan and DownScan Imaging™. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs and more.
FishReveal™
Get the best of Lowrance® CHIRP sonar and DownScan Imaging™ on one screen with the FishReveal DownScan view, a Lowrance exclusive that helps you easily recognise fish from structure and cover on high-detailed DownScan images.
Designed for Clarity
The Active Imaging™ HD transducer not only delivers three key sonar technologies – Lowrance® CHIRP, SideScan and DownScan Imaging™ – in one convenient package, but also features a new transducer design that boosts signal clarity.
Key features
- High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure
- CHIRP with superb clarity and target separation
- FishReveal™ DownScan view makes fish identification easy
- Supports Medium and High CHIRP (83/200kHz) + 700/1200kHz and 455/1075kHz frequencies
- Smart transducer design boosts signal clarity
- Compatible with Lowrance HDS PRO and Simrad NSS 4 or with a S3100 module with HDS LIVE, HDS Carbon, Elite FS and Simrad NSSevo3S, NSS evo3 and NSX series displays
PRODUCT DETAILS
- High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure
- CHIRP with superb clarity and target separation
- FishReveal™ DownScan view makes fish identification easy
- Supports Medium and High CHIRP (83/200kHz) + 700/1200kHz and 455/1075kHz frequencies
- Smart transducer design boosts signal clarity
- Compatible with Lowrance HDS PRO and Simrad NSS 4 or with a S3100 module with HDS LIVE, HDS Carbon, Elite FS and Simrad NSSevo3S, NSS evo3 and NSX series displays
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Environment
| Waterproof Rating | IP67 |
| Shock Vibration | 100,000 cycles of 20 G |
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
| Storage Temperature Range | -22°F to 158°F (-30°C to 70°C ) |
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
Physical
| Mounting Type | Transom, Flush, Jackplate |
| Weight | Transducer:2.67 lbs (1.21 kg) |
Other
| Warranty Period | 1 Year + 4 additional years of upgrade options; Totaling 5 years |
| Interface | Direct Connect to: HDS Pro, S3100; Ethernet to: HDS Live, Elite FS; Requires S3100 Module |
