ARCO Zeus Omega Alternator Drive Module with 5m NMEA Cable
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

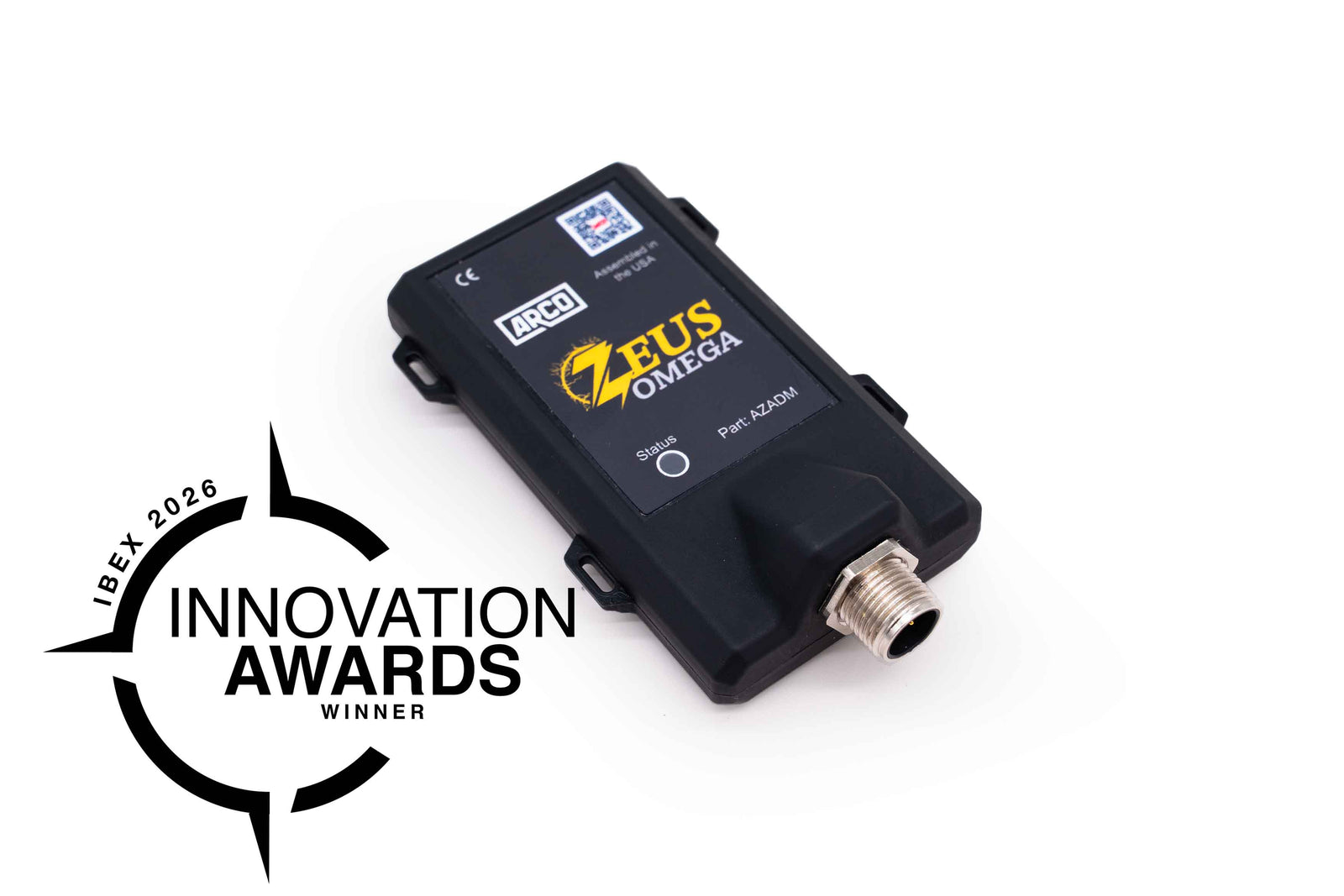

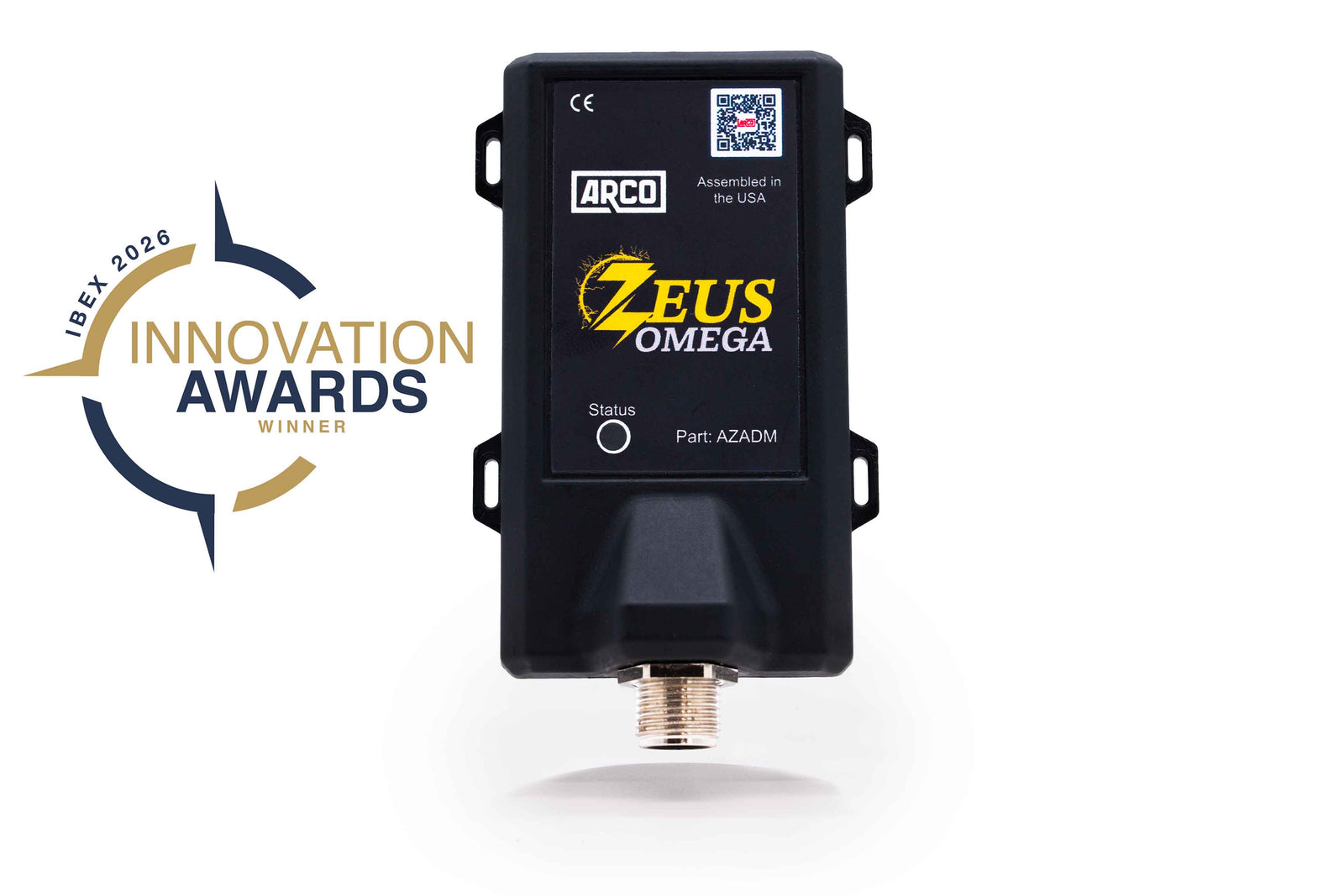

The Alternator Drive Module (ADM) is the part of the ARCO Zeus Omega system that lives at the alternator. It mounts directly at the alternator and connects back to the Zeus Omega Control Module over a single AZ CAN cable, replacing the long multi-wire harness used by traditional external regulators.
The module is epoxy potted to IP68 for the engine bay environment and is compact at 50 x 100 x 25 mm and 142 g. One Control Module can run up to six Drive Modules, so this is the unit to add when you bring another alternator into a Zeus Omega system. It is supplied with a 5 m cable, as listed by our supplier.
For direct alternator current sensing at the Drive Module, pair it with the Zeus Omega Hall Effect Sensor for the Alternator Drive Module (AZHSADM), which feeds accurate, real-time current data into Zeus Omega's regulation and diagnostics.
PRODUCT DETAILS
- Mounts directly at the alternator
- Single AZ CAN cable back to the Zeus Omega Control Module
- IP68 rated, epoxy potted for the engine bay
- Compact 50 x 100 x 25 mm, 142 g
- Add one Drive Module per alternator, up to 6 per Control Module
- Supplied with 5 m cable
- Accepts the AZHSADM Hall effect sensor for direct alternator current sensing
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Manufacturer | ARCO Marine |
| Part Number | AZADM |
| Barcode | 683125235504 |
| System | ARCO Zeus Omega |
| Warranty | 2 years |
Physical
| Mounting Location | At the alternator |
| Waterproof Rating | IP68, epoxy potted |
| Heat Tolerance | 105°C (221°F) per ARCO; TMS lists 100°C (212°F) |
| Dimensions | 50 x 100 x 25 mm (2 x 4 x 1 in) |
| Weight | 142 g (5 oz) |
In the Box
| Cable | 5 m cable (per supplier listing title) |
Compatibility
| Alternator Type | P-type or N-type, externally regulated |
| Requires | Zeus Omega Control Module (AZCM) |
