ARCO Zeus Omega Control Module
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

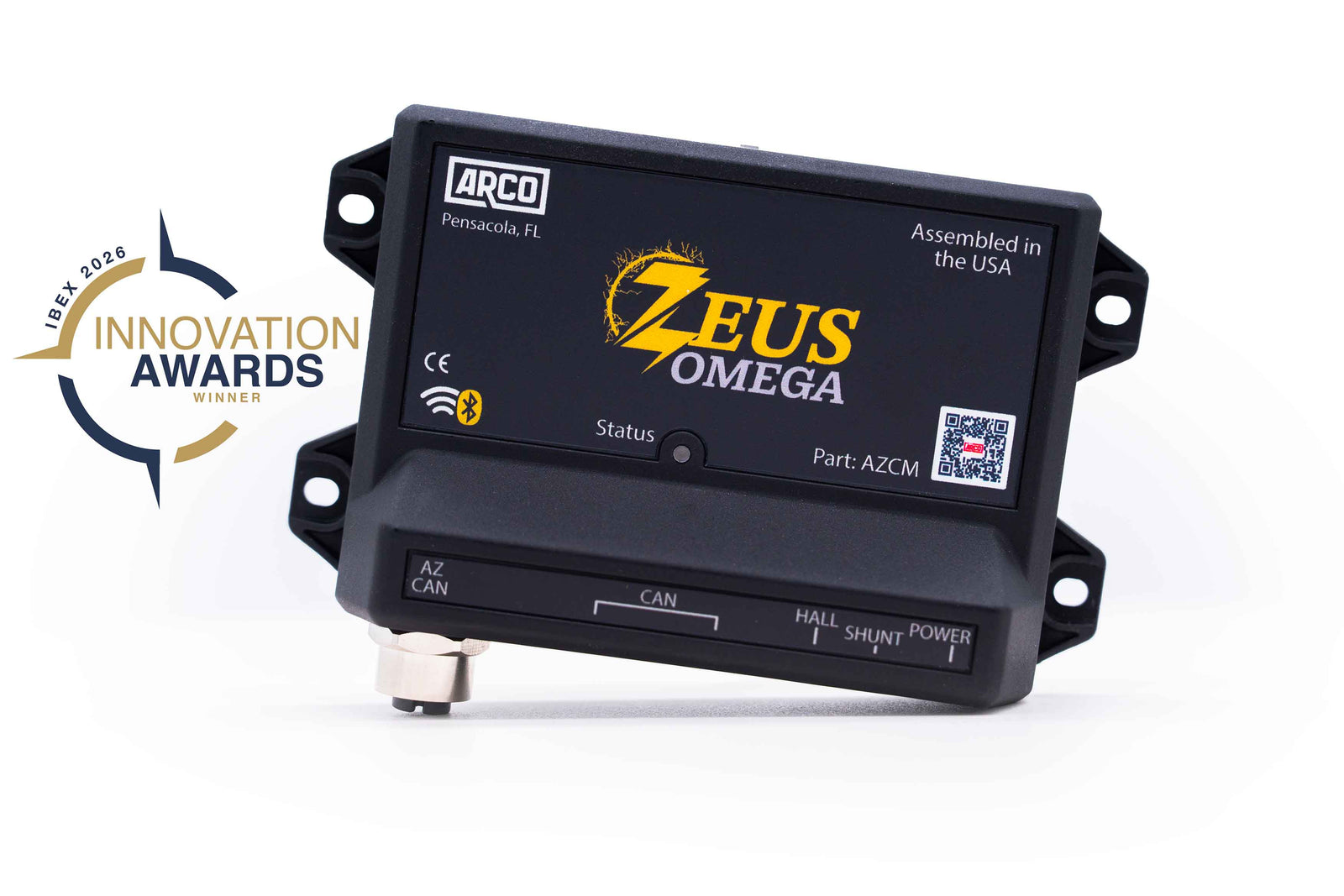

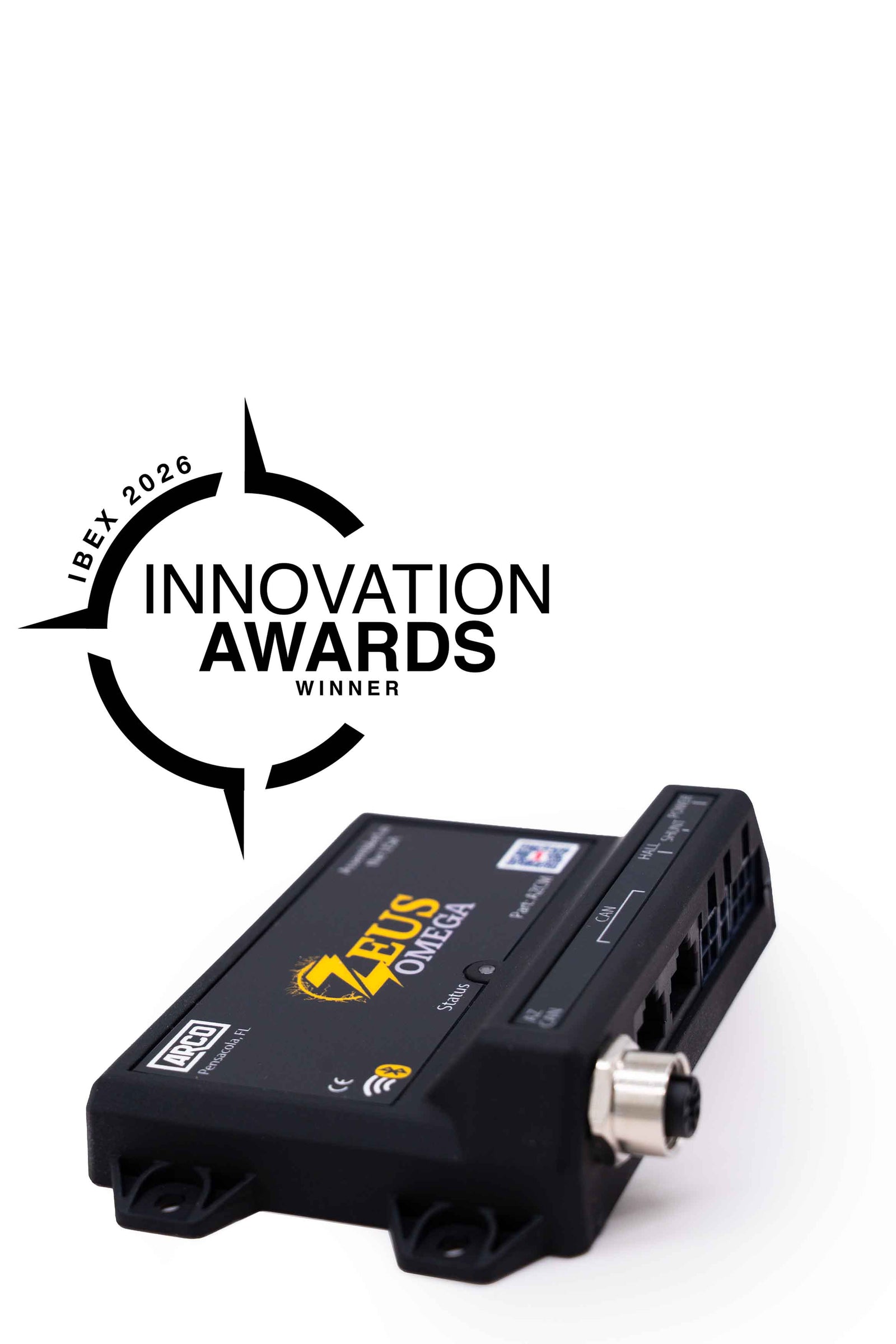

The Zeus Omega Control Module is the brain of ARCO's Zeus Omega alternator control system. It mounts near the battery, connects to the system and handles WiFi, Bluetooth, app control and system intelligence, linking to each Alternator Drive Module over a single AZ CAN cable.
A single Control Module can manage up to six alternators, each with its own Drive Module, on 12, 24, 36 or 48 volt systems. With native WiFi and Bluetooth, set-up and monitoring are handled from the iOS or Android app, and the system integrates with Victron DVCC, NMEA 2000, RV-C, CZone and Smart BMS battery systems.
The module measures 100 x 75 x 25 mm, weighs 85 g and is rated IP20 with a heat tolerance of 80°C, so it should be mounted in a dry location away from the engine. Battery or alternator current sensing at the Control Module uses the Zeus Omega Hall Effect Sensor for the Control Module (AZHSCM).
PRODUCT DETAILS
- Brain of the Zeus Omega system: WiFi, Bluetooth, app control and system intelligence
- Mounts near the battery
- Manages up to 6 Alternator Drive Modules
- 12V, 24V, 36V and 48V systems
- iOS / Android app, CarPlay and Android Auto
- Integrates with Victron DVCC, NMEA 2000, RV-C, CZone and Smart BMS
- Compact 100 x 75 x 25 mm, 85 g
- Accepts the AZHSCM Hall effect sensor for battery or alternator current sensing
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
General
| Manufacturer | ARCO Marine |
| Part Number | AZCM |
| Barcode | 683125235528 |
| Warranty | 2 years |
Physical
| Mounting Location | Near the battery |
| Waterproof Rating | IP20 |
| Heat Tolerance | 80°C (176°F) |
| Dimensions | 100 x 75 x 25 mm (4 x 3 x 1 in) |
| Weight | 85 g (3 oz) |
System
| Voltage Support | 12V / 24V / 36V / 48V |
| Alternator Type | P-type or N-type, externally regulated (selected in the app) |
| Max Alternators | Up to 6 per Control Module (one Alternator Drive Module per alternator) |
| Connectivity | WiFi + Bluetooth |
| App Control | iOS / Android, CarPlay + Android Auto |
| Integrations | Victron DVCC, NMEA 2000, RV-C, CZone and Smart BMS battery integrations |
