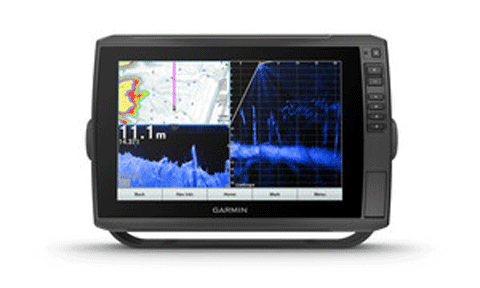

Garmin ECHOMAP Ultra 102sv no Transducer
Description
The ECHOMAP Ultra 102sv is a premium 10 inch chartplotter and fishfinder combo with a bright, sunlight-readable WXGA touchscreen and keyed assist. It offers built-in support for Garmin CHIRP traditional sonar plus CHIRP ClearVu, CHIRP SideVu and Ultra High-Definition scanning sonars, and also supports Panoptix and Panoptix LiveScope as well as GCV black box sonar, so it scales from a standalone combo to a fully networked helm.
A preloaded worldwide basemap works with Garmin Quickdraw Contours mapping and accepts BlueChart g3, BlueChart g3 Vision and Garmin Navionics+ charts. Twin microSD slots, two Garmin Marine Network ports, NMEA 2000 and NMEA 0183 connectivity and built-in Wi-Fi with the ActiveCaptain app let you share sonar, charts and data across compatible displays. This part number is supplied without a transducer.
PRODUCT DETAILS
- Bright 10 inch WXGA sunlight-readable touchscreen with keyed assist
- CHIRP traditional plus ClearVu, SideVu and Ultra High-Definition sonar support
- Preloaded worldwide basemap; BlueChart g3, g3 Vision and Navionics+ compatible
- 600 W RMS sonar; Panoptix, LiveScope and GCV black box support
- Garmin Marine Network, NMEA 2000, NMEA 0183 and built-in Wi-Fi
- Supplied without a transducer
No exploded diagram available for this product.
No compatible transducers listed for this product.
Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID
Garmin 12 pin Sounder to Y 8 pin and 12 pin Transducer Adapter Cable
Garmin Suction-cup transducer mounting adapter
Transducer Adapter 12-Pin Right Angle
Garmin 4-pin Transducer to 12-pin Sounder Adapter Cable
Image coming soonTransducer Right Angle Adapter Cable (12-pin)
Garmin GHP Reactor 40 Autopilot Corepack with GHC 20 Display for Mechanical Retrofit and Solenoid Drives
Garmin Panoptix PS31 Forward Sonar Transducer Transom or Trolling Motor Mounting Ethernet
Force® Kraken Trolling motor, Black 63 Trolling Motor with GT56UHD-TR Transducer
Garmin Panoptix PS30 Down Sonar Transducer Transom or Trolling Motor Mounting Ethernet
Garmin Force Trolling Motor 50 Inch
Garmin GHP Compact Reactor 40 Hydraulic Autopilot System with 1L Pump and GHC 20 Display
Reactor™ 40 Hydraulic Corepack with SmartPump v2 With GHC™ 50 Autopilot Instrument
General
| GPS | Internal 10 Hz GPS (or external over NMEA 2000) |
| Preloaded cartography | Worldwide basemap; compatible with BlueChart g3 and BlueChart g3 Vision and Garmin Navionics+ charts |
| Mapping software | Garmin Quickdraw Contours (1 ft / 30 cm contours) |
| Memory card slots | 2 microSD card slots (32 GB max each) |
Display
| Display size | 10 in diagonal (25.4 cm); 21.7 x 13.6 cm |
| Display resolution | WXGA, 1280 x 800 pixels |
| Display type | Sunlight-readable colour touchscreen with keyed assist |
Sonar
| Built-in sonar | Garmin CHIRP traditional plus CHIRP ClearVu, CHIRP SideVu and Ultra High-Definition scanning sonars (transducer sold separately) |
| CHIRP traditional frequencies | High-Wide 150 to 240 kHz; dual-frequency 50/200 kHz and dual-beam 77/200 kHz capable |
| ClearVu / SideVu frequencies | UHD ClearVu 800 kHz; CHIRP ClearVu 455 kHz; UHD SideVu 1,200 kHz; CHIRP SideVu 455 kHz |
| Transmit power | 600 W (RMS) / 4,000 W (peak-to-peak) |
| Maximum depth | 701 m (2,300 ft) freshwater / 335 m (1,100 ft) saltwater at 77 kHz (transducer dependent) |
| Sonar support | Panoptix and Panoptix LiveScope, plus GCV black box sonar (transducer sold separately) |
Compatibility
| NMEA 2000 | Yes |
| NMEA 0183 | Yes (1 input, 1 output) |
| Wi-Fi | Yes, ActiveCaptain app connectivity |
| Garmin Marine Network | 2 ports (large connector) |
Physical
| Dimensions (W x H x D) | 29.5 x 19.5 x 9.8 cm (11.6 x 7.7 x 3.9 in) |
| Weight | 1.8 kg (4.1 lb) |
| Waterproof rating | IPX7 |
| Power input | 9 to 18 Vdc |
| Mount | Bail or flush mount |
