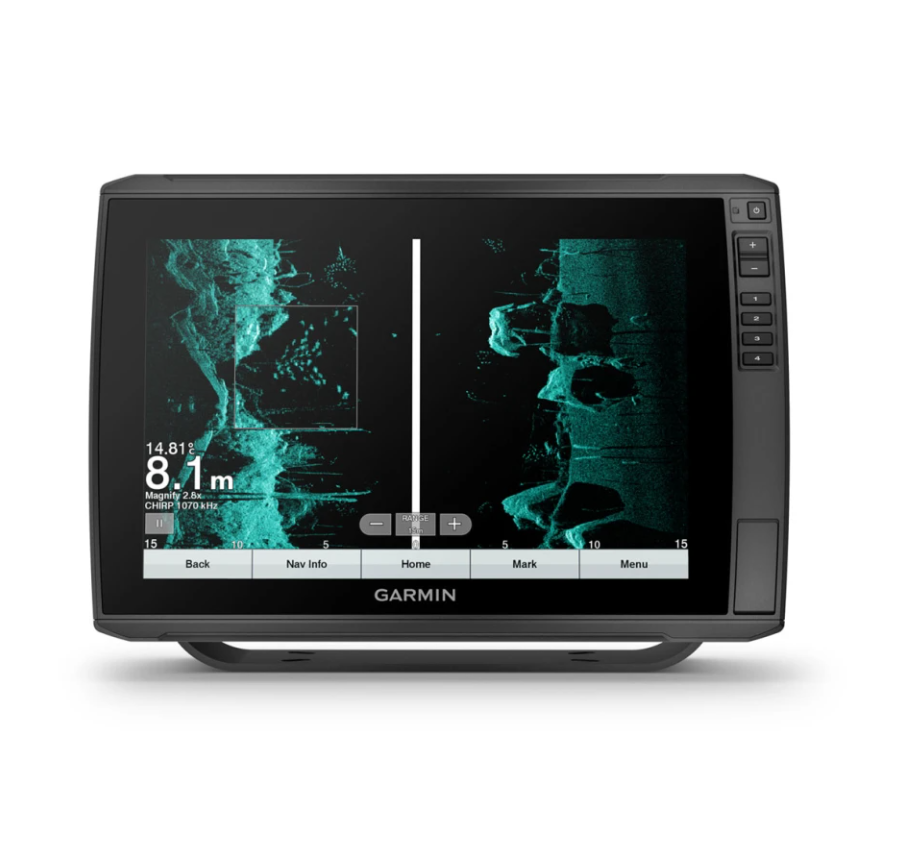

Garmin ECHOMAP Ultra 122sv with GT54UHD-TM Transducer
Description
The ECHOMAP Ultra 122sv is a premium 12 inch chartplotter and fishfinder combo with a bright, sunlight-readable WXGA touchscreen and keyed assist. This bundle includes the GT54UHD-TM transom transducer, delivering Garmin CHIRP traditional sonar plus the highest-resolution Ultra High-Definition ClearVu and SideVu scanning sonars for exceptional detail of structure and fish.
A preloaded worldwide basemap works with Garmin Quickdraw Contours mapping and accepts BlueChart g3, BlueChart g3 Vision and Garmin Navionics+ charts. Twin microSD slots, two Garmin Marine Network ports, NMEA 2000 and NMEA 0183 connectivity and built-in Wi-Fi with the ActiveCaptain app let you share sonar, charts and data across compatible displays, and the unit also supports Panoptix, Panoptix LiveScope and GCV black box sonar.
PRODUCT DETAILS
- Bright 12 inch WXGA sunlight-readable touchscreen with keyed assist
- Includes GT54UHD-TM transom transducer
- CHIRP traditional plus high-resolution UHD ClearVu and SideVu sonars
- Preloaded worldwide basemap; BlueChart g3, g3 Vision and Navionics+ compatible
- 600 W RMS sonar; Panoptix, LiveScope and GCV black box support
- Garmin Marine Network, NMEA 2000 and built-in Wi-Fi
No exploded diagram available for this product.
Garmin NMEA 2000 Multi-port T-connector
Garmin GMS 10 Ethernet Network Port Expander or Network Switch
GTEMP 10-TH Thru-hull Temp Sensor
Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID
Garmin Steady Cast Heading Sensor
Garmin Weather Cap For Power Data Cable
Garmin GDT 43 Analogue Thru Hull Depth and Temperature Transducer
Garmin 12 pin Sounder to Y 8 pin and 12 pin Transducer Adapter Cable
Garmin NMEA2000 Field Installation Female Connector
Garmin Cable Grommet for Marine Network Cables
Flush Mount Kit
Garmin Suction-cup transducer mounting adapter
Garmin Marine Network Cables (Large Connectors), 50 ft (15.24 m)
Garmin NMEA2000 Backbone Cable 10m
microSD™ Card Door
Garmin NMEA2000 Power Isolator
Garmin GFS 10 NMEA2000 Petrol Fuel Flow Sensor
Trim Piece Snap Cover
Garmin NMEA2000 Field Installation Male Connector
Garmin NMEA2000 Terminator Female
GPS 24xd HVS - 010-02316-00
Garmin 6ft Marine Network Cable Ethernet RJ45
Garmin 4-pin Transducer to 12-pin Sounder Adapter Cable
Garmin GST 10 Analogue Water Speed and Temperature Adapter
Garmin NMEA2000 Tee Connector
Garmin GPS 24XD Dual Frequency Antenna
Garmin Split collar 11mm connector
Garmin Right angle NMEA 2000 cable
Garmin ECHOMAP Ultra 102 and 122 Threaded Power cable
Garmin NMEA2000 Power Cable
Transducer Spray Shield
Garmin NMEA2000 Inline Terminator Male
Garmin Marine Network Cable In Line Coupler or Joiner
GPS 24xd Receiver and Antenna, For the NMEA 2000® Network, Black - 010-02316-20
Garmin NMEA 2000 Weather Cap
Garmin NMEA2000 starter kit
Garmin Marine Network Cable Connector RJ45 Plug 2 Pack
Garmin 40ft Marine Network Cable Ethernet RJ45
Garmin GRA 10 Analogue Rudder Angle Sender to NMEA2000 Adapter
microSD™ Card Door
Garmin GFL 10 Analogue Fluid Level Sender to NMEA2000 Adapter
Garmin Weather Cap for RJ45 Connector
Garmin GNA 10, NMEA 2000 Multi-Function Adapter
Garmin 500ft Marine Network Cable Only, No RJ45 Plugs or Connectors
Image coming soonTransducer Right Angle Adapter Cable (12-pin)
Garmin NMEA2000 Backbone Drop or Spur Cable 30cm
Garmin NMEA2000 Terminator Male
Bail Mount with Quick Release Cradle - 010-12842-00
Garmin Marine Network Cables (Large Connectors), 6 ft (1.83 m)
Garmin NMEA2000 Backbone, Drop or Spur Cable 2m
No compatible products found.
General
| GPS | Internal 10 Hz GPS (or external over NMEA 2000) |
| Preloaded cartography | Worldwide basemap; compatible with BlueChart g3 and BlueChart g3 Vision and Garmin Navionics+ charts |
| Mapping software | Garmin Quickdraw Contours (1 ft / 30 cm contours) |
| Memory card slots | 2 microSD card slots (32 GB max each) |
Display
| Display size | 12.1 in diagonal (30.7 cm); 26.1 x 16.3 cm |
| Display resolution | WXGA, 1280 x 800 pixels |
| Display type | Sunlight-readable colour touchscreen with keyed assist |
Sonar
| Included transducer | GT54UHD-TM transom mount |
| Built-in sonar | Garmin CHIRP traditional plus Ultra High-Definition ClearVu and SideVu scanning sonars |
| CHIRP traditional frequencies | High-Wide 150 to 240 kHz; dual-frequency 50/200 kHz and dual-beam 77/200 kHz capable |
| UHD ClearVu / SideVu frequencies | UHD ClearVu 800 kHz; CHIRP ClearVu 455 kHz; UHD SideVu 1,200 kHz; CHIRP SideVu 455 kHz |
| Transmit power | 600 W (RMS) / 4,000 W (peak-to-peak) |
| Maximum depth | 701 m (2,300 ft) freshwater / 335 m (1,100 ft) saltwater at 77 kHz (transducer dependent) |
| Sonar support | Panoptix and Panoptix LiveScope, plus GCV black box sonar (transducer sold separately) |
Compatibility
| NMEA 2000 | Yes |
| NMEA 0183 | Yes (1 input, 1 output) |
| Wi-Fi | Yes, ActiveCaptain app connectivity |
| Garmin Marine Network | 2 ports (large connector) |
Physical
| Dimensions (W x H x D) | 34.1 x 22.9 x 9.8 cm (13.4 x 9.0 x 3.9 in) |
| Weight | 2.5 kg (5.5 lb) unit only |
| Waterproof rating | IPX7 |
| Power input | 9 to 18 Vdc |
| Mount | Bail or flush mount |
