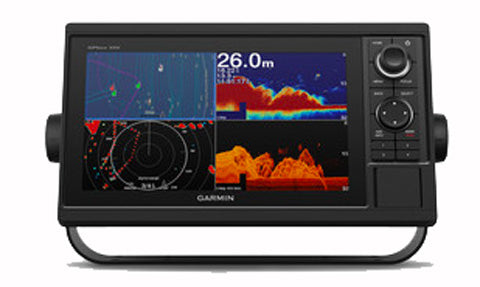

Garmin GPSMAP 1022xsv Chartplotter Sonar Combo with 10 inch Screen and Keypad
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GPSMAP 1022xsv is the full sonar version of the 1022, pairing a 10 inch keyed WSVGA display with built in 1 kW CHIRP traditional sonar, Garmin ClearVu and SideVu scanning sonar. The keypad and rotary dial give precise control in rough conditions, while the internal 10 Hz GPS/GLONASS receiver keeps your position and heading accurate.
Preloaded with a worldwide basemap and ready for BlueChart g3 and LakeVu charts, it networks through the Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi, ANT and Bluetooth so you can add radar, autopilot, Panoptix sonar and the ActiveCaptain app. This unit is supplied without a transducer, letting you choose the right one for your boat.
PRODUCT DETAILS
- 10 inch sunlight readable WSVGA display, 1024 x 600 resolution
- Built in 1 kW CHIRP traditional sonar plus Garmin ClearVu and SideVu
- Keypad and rotary dial control for reliable use in any conditions
- Internal 10 Hz GPS/GLONASS receiver for precise position and heading
- Connects via Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi
- Also supports Panoptix sonar, radar, autopilot and ActiveCaptain
- Supplied without transducer; IPX7 housing, SD cards up to 1 TB
No exploded diagram available for this product.
No compatible transducers listed for this product.
Garmin GMR Fantom 54
Garmin GMR Fantom 56
Garmin GMR Fantom 124
Garmin GMR Fantom 126
GMR Fantom™ 254, Open Array and Pedestal, White
GMR Fantom™ 256, Open Array and Pedestal, White
GMR Fantom™ 54, Open Array and Pedestal, Black
GMR Fantom™ 56, Open Array and Pedestal, Black
GMR Fantom™ 124, Open Array and Pedestal, Black
GMR Fantom™ 126, Open Array and Pedestal, Black
GMR Fantom™ 254, Open Array and Pedestal, Black
GMR Fantom™ 256, Open Array and Pedestal, Black
GMR Fantom™ 18x Dome Radar Radome, White
GMR Fantom 18x Radome, Black
GMR Fantom™ 18x/24x Dome Radar 24x Radome, White
GMR Fantom™ 18x/24x Dome Radar 24x Radome, Black
Display
| Display size | 22.3 x 12.5 cm (8.8 x 4.9 in.), 10.1 in. diagonal |
| Display resolution | WSVGA, 1024 x 600 pixels |
| Display type | Colour, keypad controlled |
GPS/GNSS
| GPS receiver | Internal 10 Hz GPS/GLONASS |
| Preloaded charts | Worldwide basemap |
| Waypoints / routes / tracks | 5,000 waypoints; 100 routes; 50,000 track points, 50 saved tracks |
Sonar
| Built-in sonar | 1 kW CHIRP traditional, Garmin ClearVu and SideVu scanning sonar; also supports Panoptix |
| Sonar frequencies | Traditional 50/200, 77/200, 83/200 kHz; CHIRP 40-250 kHz; ClearVu CHIRP 260/455/800 kHz |
| Sonar transmit power (RMS) | CHIRP 1000 W; ClearVu and SideVu CHIRP 500 W |
| Sonar depth | 5,000 ft. at 1 kW (transducer dependent) |
Connectivity
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi, ANT, Bluetooth |
| Wireless frequency | 2.4 GHz @ 15.26 dBm nominal |
| NMEA 2000 LEN | 2 @ 9 Vdc (75 mA max.) |
| Memory card | 2 SD card slots; 1 TB max. card size |
Physical
| Dimensions (W x H x D) | 316.8 x 185.2 x 82.7 mm (12.5 x 7.3 x 3.3 in.) |
| Weight | 1.85 kg (4.1 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 65 cm (25.5 in.) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 32.4 W |
| Fuse | 6 A, 125 V fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 50 C (5 to 122 F) |
