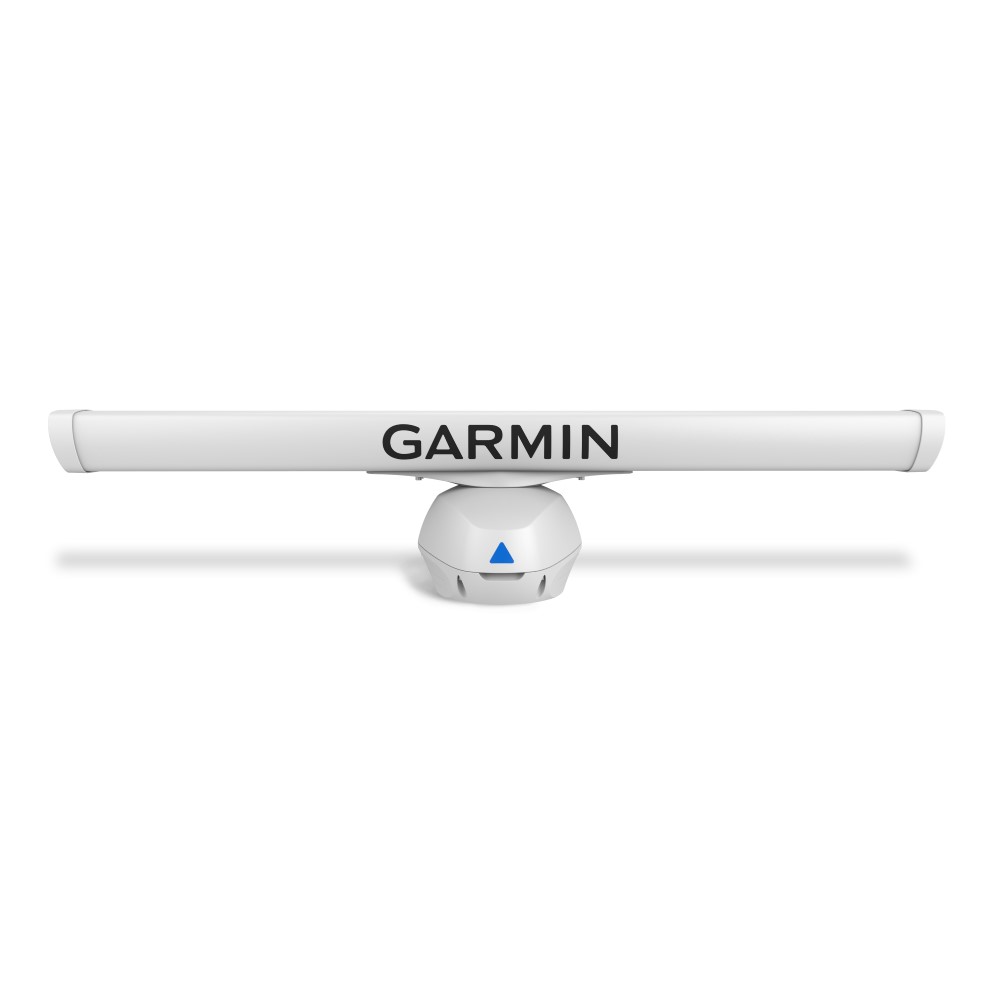

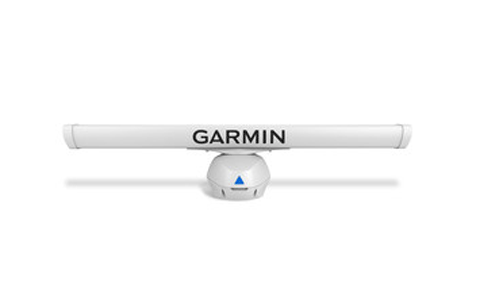

Garmin GMR Fantom 126
Our GMR Fantom 126 solid-state radar with 120 W of power uses MotionScope technology to detect and highlight moving targets in different colours to show if they are moving away or approaching, which helps you avoid potential collisions, find flocks of birds and track weather. It includes Pulse Compression technology that provides high-resolution imaging and maximises energy to help you detect and identify targets. It has a detection range of 20' to 96 nautical miles.
High-power 120 W radar with narrow beam
You get excellent close and long-range target detection from as close as 20' to 96 nautical miles, even in fog or rain. The narrow horizontal beamwidth provides a high-resolution image, and the high antenna gain picks out weak targets at a distance. This radar paints a clear, concise image of the shoreline, other vessels and impending weather — right on your Garmin chartplotter. Get consistent target positions, excellent target separation that helps you distinguish large targets from small ones and adjustable rotation speed for fast screen updates.
MotionScope Doppler technology
GMR Fantom uses the Doppler effect to detect and highlight moving targets, then paints them with different colours to clearly display if they are moving away or approaching to help you avoid potential collisions, find flocks of birds and track weather formations. The Doppler effect is the frequency shift in the radar echo due to the relative motion of the target. This allows for instant detection of any targets moving toward or away from the radar. MotionScope highlights the moving targets on the radar display so you can navigate around other boats or severe weather — or toward fishing spots where birds are feeding at the surface.
OPEN-ARRAY RADAR WITH INCREDIBLE POWER
This open-array radar highlights moving targets in colour and gives you excellent close- and long-range target detection — even in fog or rain.
Know what’s coming. MotionScope™ technology shows targets in colour as they move towards you or away.
GMR Fantom brings the power. 120 watts of it, actually.
Get high resolution without wasting energy, thanks to pulse compression.
Add even more detail to your maps with radar overlay — even in a split-screen view.
See what’s coming.
HIGH-POWERED RADAR
This 120-watt solid-state radar has a range from 6 metres to 96 nautical miles (177 km), even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.
HIGH-RESOLUTION RADAR
The 1.25-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out even weak targets at a distance.
MOTIONSCOPE TECHNOLOGY
MotionScope uses the Doppler effect to detect moving targets and highlight them in different colours so you can navigate around other boats or severe weather — or towards fishing spots where birds feed at the surface.
INTUITIVE OPERATION
This radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.
See incredible detail on the water.
TARGET SIZE
Adjust the size of objects on the radar image.
AUTO BIRD GAIN
Locate flocks of birds at the water’s surface where baitfish are also likely to be found.
ECHO TRAILS
A historical “trail” is left on the screen to help you quickly and easily identify moving targets and potential collision threats.
DUAL RANGE
Single radar antenna is capable of providing split-screen images on your chartplotter for both close and long range.
DUAL-RADAR SUPPORT
Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.
DYNAMIC AUTO GAIN
Gain automatically adjusts levels to optimum settings for harbours, nearshore and offshore in open waters.
DYNAMIC SEA FILTER
Gain automatically adjusts sea clutter for calm, medium and rough sea conditions.
RADAR OVERLAY
Overlay radar images onto your chartplotter’s map page. You can add an optional autopilot or heading sensor (sold separately) for best results.
MARPA TARGET TRACKING
Mini-automatic radar plotting aid (MARPA) tracks up to 30 selected targets, helping you keep track of other vessels and avoid collisions.
GUARD ZONE
Set the safety zone, and receive an alarm when an object enters the zone.
VRM AND EBL
Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.
| General | |
|---|---|
| DIMENSION |
Pedestal: 42.1 x 36.4 x 27.1 cm Full assembly: 40.3 cm height x 190.9 cm diameter |
| WEIGHT |
Array: 7.3 kg Pedestal: 15.7 kg |
| WATER RATING | IPX6 |
| MAX WIND LOAD | 80kt |
| ANTENNA LENGTH | 182.9 cm |
| ROTATION SPEED (RPM) | 24 and 48 rpm (High Speed only available in Single Range mode, with MotionScope disabled, and on range settings of 12 NM or lower) |
| BEAM WIDTH | 1.25° horizontal, 23° vertical |
| MAXIMUM RANGE | 96 nm |
| MINIMUM RANGE | 6 metres |
| RADAR TYPE | Open-Array |
| Electrical Features | |
|---|---|
| POWER INPUT | 10-32 V |
| TRANSMIT POWER | 120 W |
| Radar Features | |
|---|---|
| DUAL RANGE | Yes |
| OVERLAY | Yes |
| DUAL RADAR SUPPORT | Yes |
| AUTO BIRD GAIN | Yes |
| AUTO GAIN | Dynamic |
| MARPA TARGET TRACKING | Yes (requires heading sensor, sold separately) |
| ECHO TRAILS | Yes |
| MOTIONSCOPE | Yes |
| PROGRAMMABLE ANTENNA PARKING | Yes |
| TARGET SIZE | Yes |
| SCAN AVERAGING | Yes |
| Additional | |
|---|---|
| ADDITIONAL |
|
