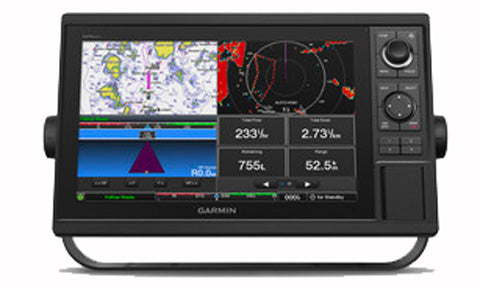

Garmin GPSMAP 1222 Chartplotter with 12 inch Screen and Keypad
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GPSMAP 1222 puts a large 12 inch high resolution WXGA display at the helm, controlled by a tactile keypad and rotary dial for confident operation in any sea state. The internal 10 Hz GPS/GLONASS receiver updates position and heading ten times per second, giving you smooth, precise navigation on a screen big enough for split chart, radar and instrument views.
Preloaded with a worldwide basemap and ready for BlueChart g3 and LakeVu cartography, the 1222 networks through the Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi, ANT and Bluetooth, so you can add radar, autopilot, sensors and the ActiveCaptain app. This is the chart only model with no built in sonar.
PRODUCT DETAILS
- 12 inch sunlight readable WXGA display, 1280 x 800 resolution
- Keypad and rotary dial control for reliable use in any conditions
- Internal 10 Hz GPS/GLONASS receiver for precise position and heading
- Preloaded worldwide basemap, ready for BlueChart g3 and LakeVu charts
- Connects via Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi
- Chart only model, no built in sonar (networked sonar supported)
- IPX7 housing with two SD card slots supporting up to 1 TB cards
No exploded diagram available for this product.
No compatible transducers listed for this product.
Garmin GMR Fantom 54
Garmin GMR Fantom 56
Garmin GMR Fantom 124
Garmin GMR Fantom 126
GMR Fantom™ 254, Open Array and Pedestal, White
GMR Fantom™ 256, Open Array and Pedestal, White
GMR Fantom™ 54, Open Array and Pedestal, Black
GMR Fantom™ 56, Open Array and Pedestal, Black
GMR Fantom™ 124, Open Array and Pedestal, Black
GMR Fantom™ 126, Open Array and Pedestal, Black
GMR Fantom™ 254, Open Array and Pedestal, Black
GMR Fantom™ 256, Open Array and Pedestal, Black
GMR Fantom™ 18x Dome Radar Radome, White
GMR Fantom 18x Radome, Black
GMR Fantom™ 18x/24x Dome Radar 24x Radome, White
GMR Fantom™ 18x/24x Dome Radar 24x Radome, Black
Display
| Display size | 26.2 x 16.4 cm (10.3 x 6.4 in.), 12.1 in. diagonal |
| Display resolution | WXGA, 1280 x 800 pixels |
| Display type | Colour, keypad controlled |
GPS/GNSS
| GPS receiver | Internal 10 Hz GPS/GLONASS |
| Preloaded charts | Worldwide basemap |
| Waypoints / routes / tracks | 5,000 waypoints; 100 routes; 50,000 track points, 50 saved tracks |
General
| Built-in sonar | None; networked sonar supported via compatible Garmin module or transducer |
Connectivity
| Networking | Garmin Marine Network, NMEA 2000, NMEA 0183, Wi-Fi, ANT, Bluetooth |
| Wireless frequency | 2.4 GHz @ 15.26 dBm nominal |
| NMEA 2000 LEN | 2 @ 9 Vdc (75 mA max.) |
| Memory card | 2 SD card slots; 1 TB max. card size |
Physical
| Dimensions (W x H x D) | 358.8 x 226.8 x 82.7 mm (14.1 x 8.9 x 3.3 in.) |
| Dimensions on bail mount (W x H x D) | 390.7 x 242.3 x 97.5 mm (15.4 x 9.5 x 3.8 in.) |
| Weight | 2.34 kg (5.2 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 65 cm (25.5 in.) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 34.8 W |
| Typical current draw at 12 Vdc | 2.2 A |
| Max. current draw at 12 Vdc | 2.9 A |
| Fuse | 6 A, 125 V fast-acting |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 50 C (5 to 122 F) |
