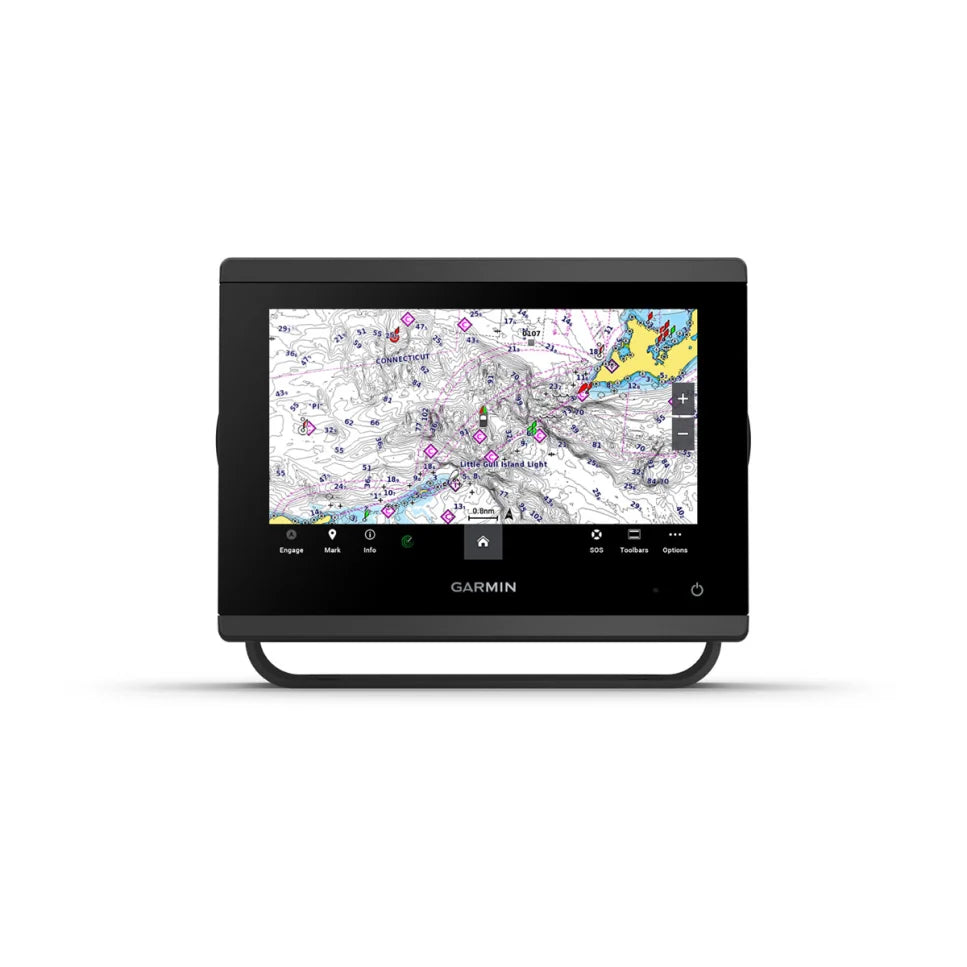

Garmin GPSMAP 723xsv 010-02365-02 chartplotter, front view of a chart screen with a detailed coastline

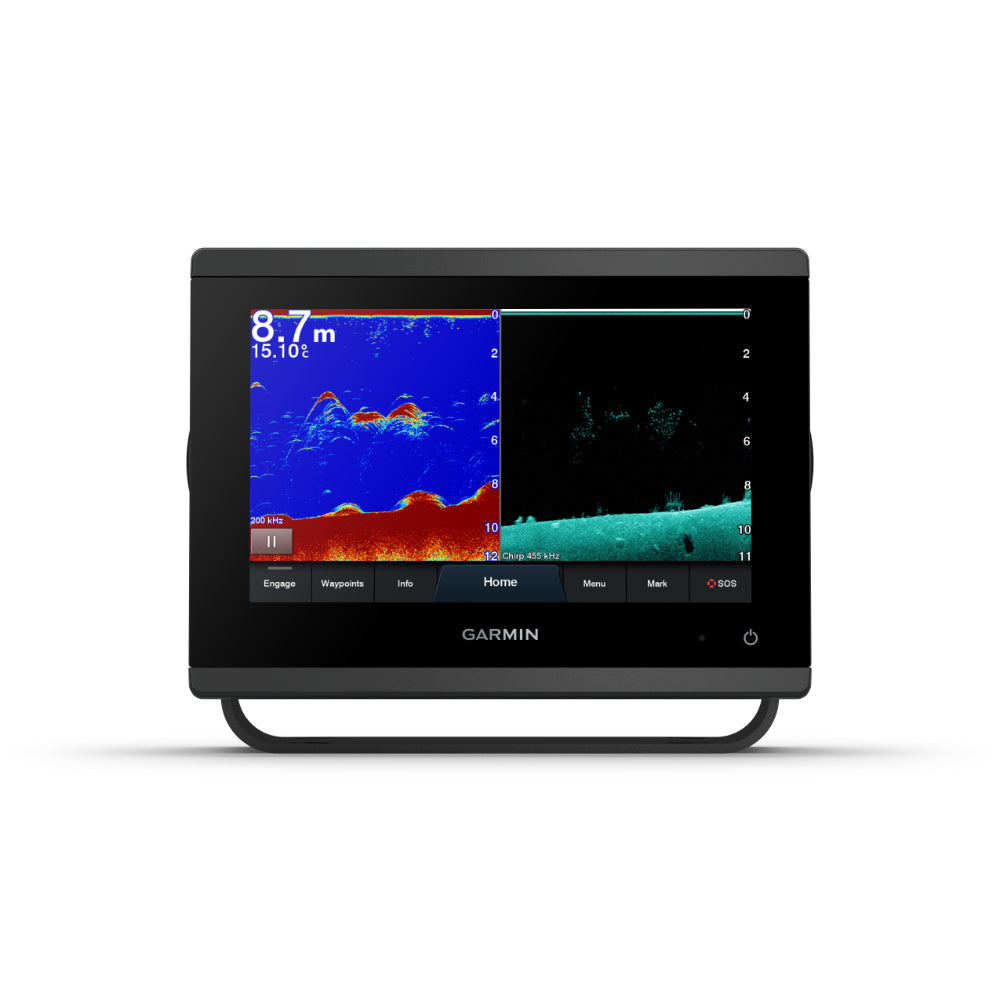

Garmin GPSMAP 723xsv 010-02365-02 chartplotter, front view of sonar and CHIRP panes, depth 8.7 m

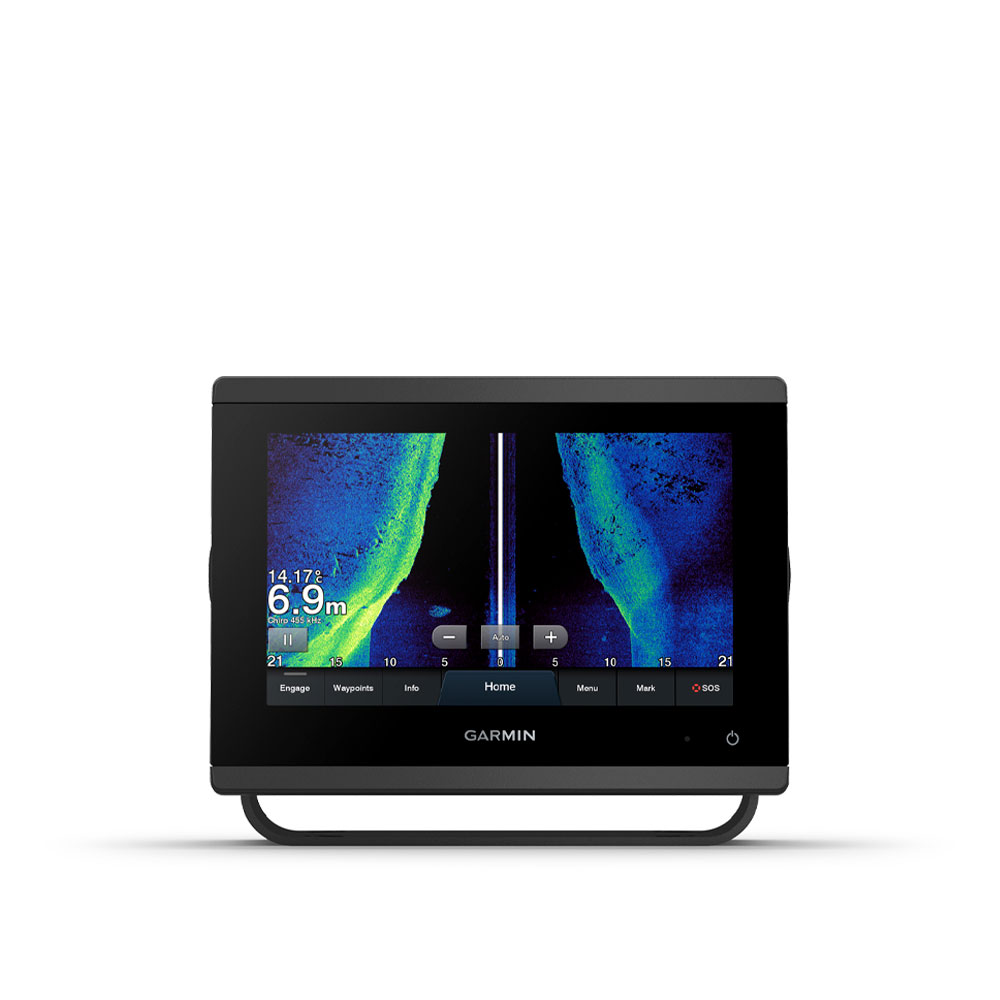

Garmin GPSMAP 723xsv 010-02365-02 chartplotter, front view of SideVu sonar panes, depth 6.9 m

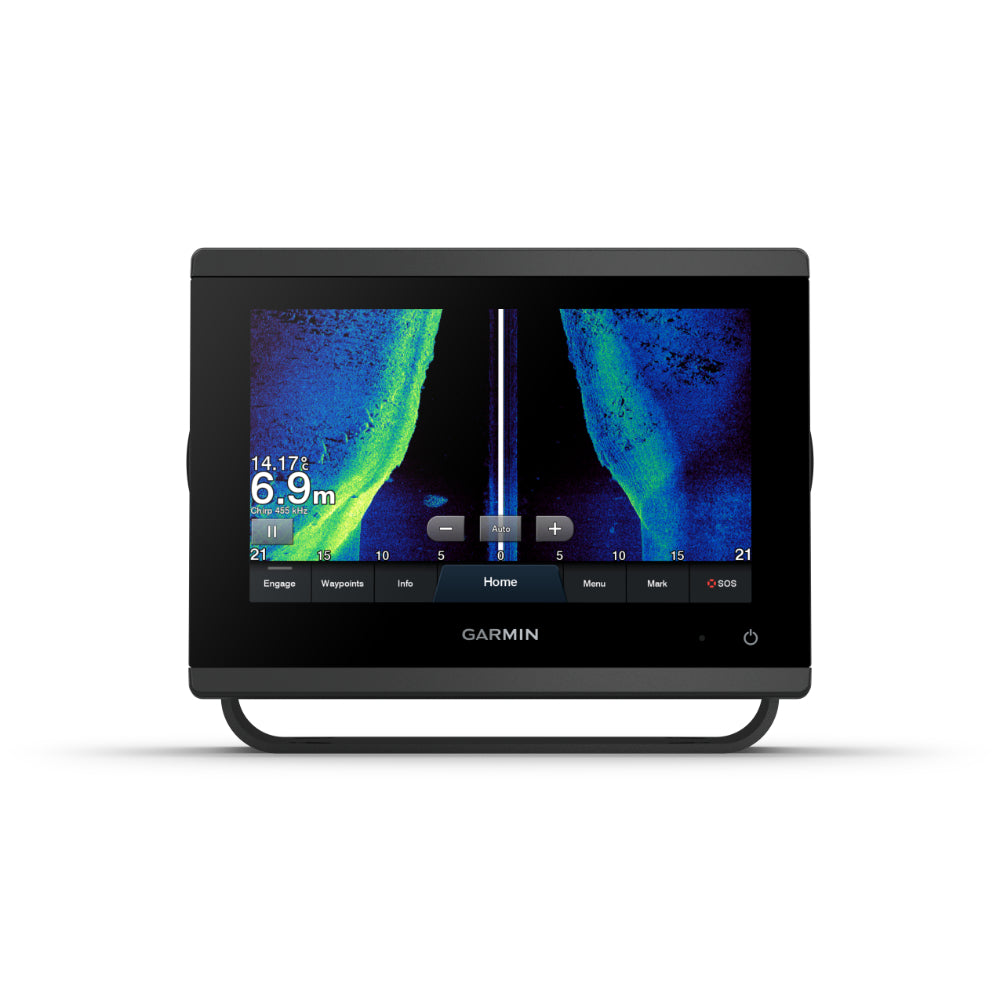

Garmin GPSMAP 723xsv 010-02365-02 chartplotter, larger front view of SideVu sonar panes

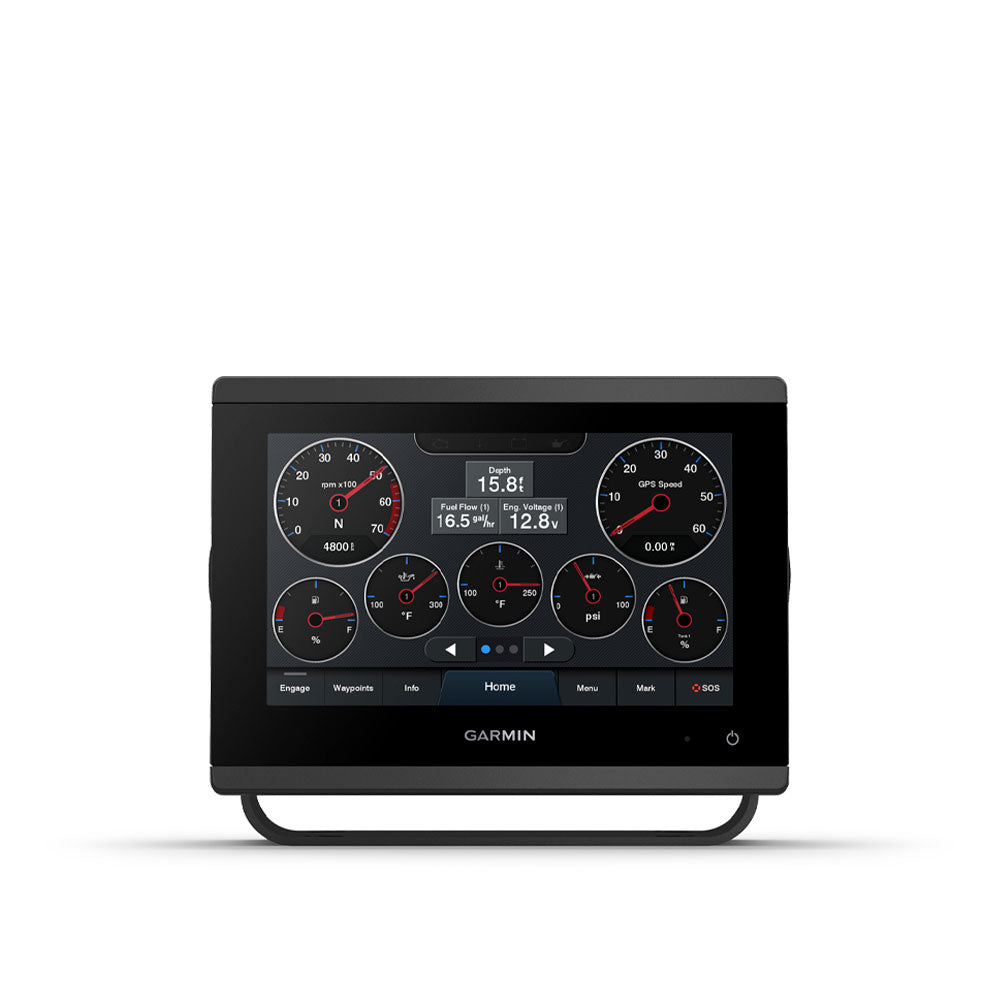

Garmin GPSMAP 723xsv 010-02365-02 chartplotter, front view of engine gauge dials page

Garmin GPSMAP 723xsv 010-02365-02 chartplotter, second front view of SideVu sonar panes

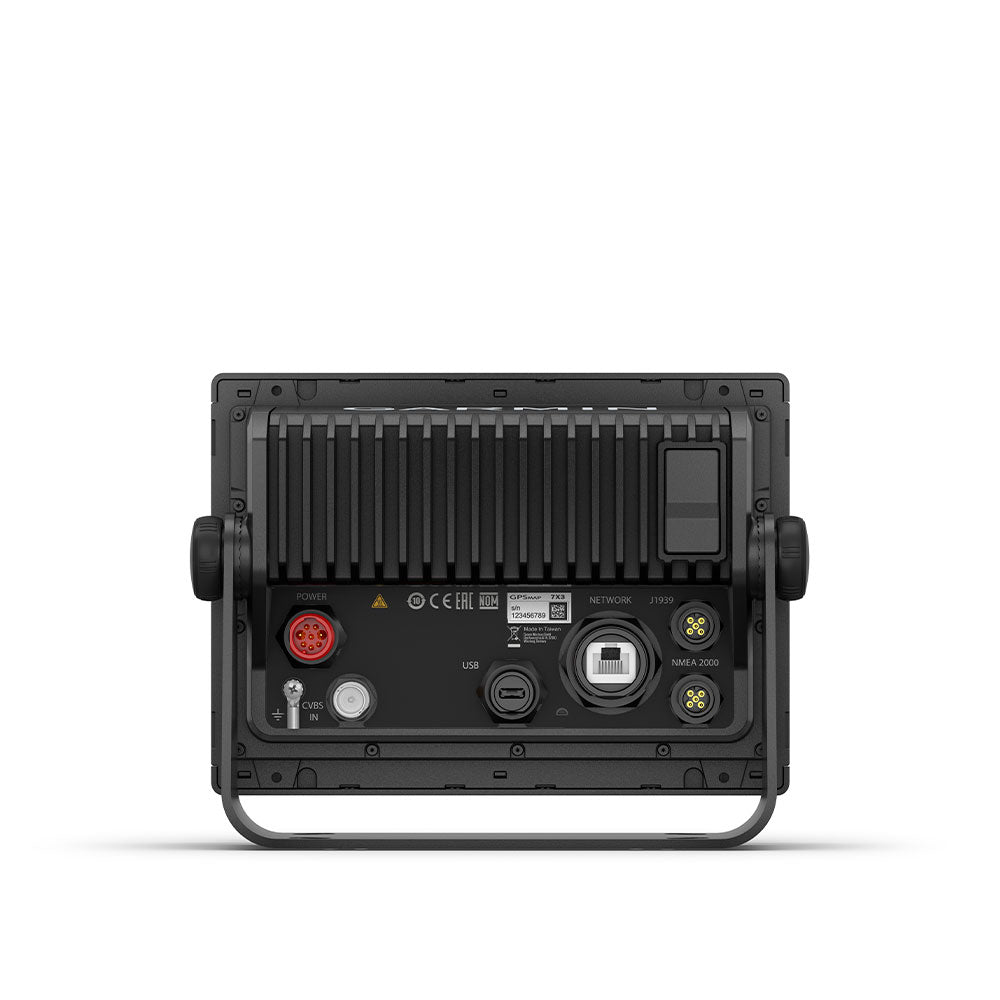

Garmin GPSMAP 723xsv 010-02365-02 rear view with cooling fins, power, sonar and network sockets

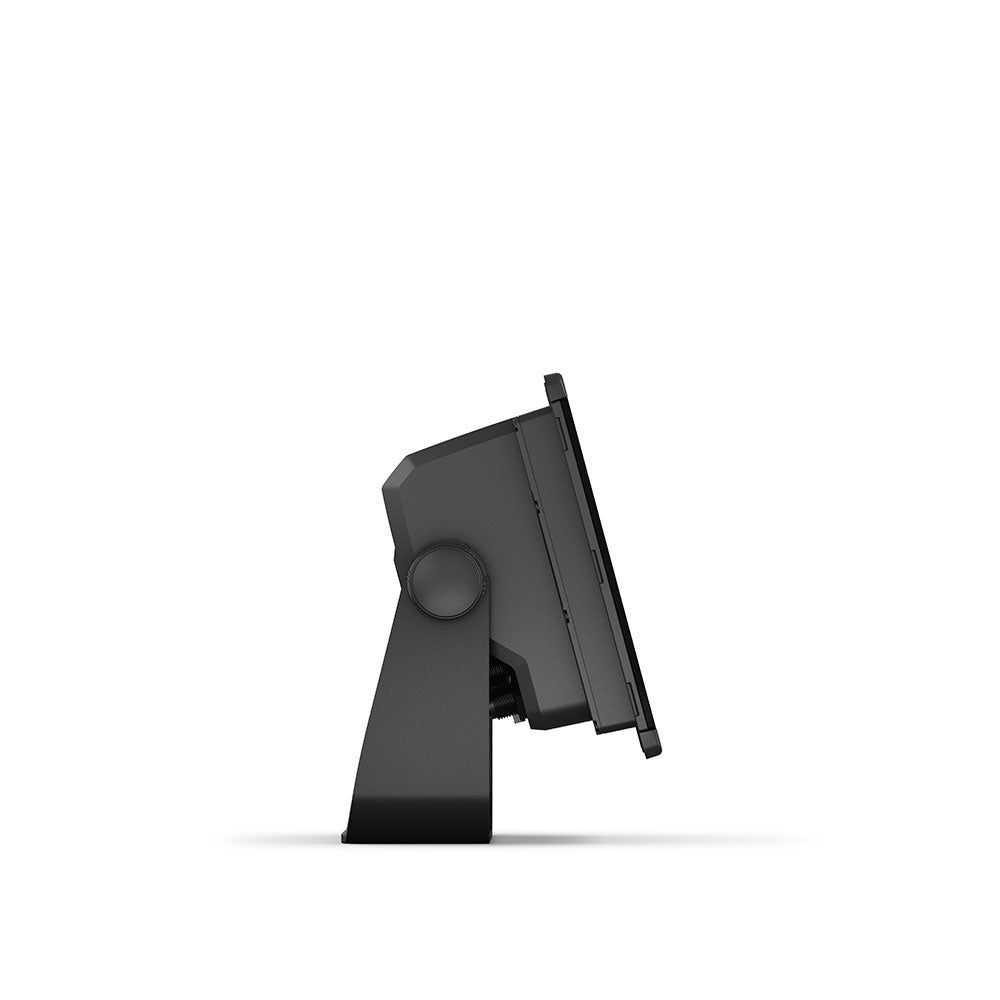

Garmin GPSMAP 723xsv 010-02365-02 side profile of the thin display on its bracket

Garmin

Garmin GPSMAP 723xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap

Name: Garmin GPSMAP 723xsv, SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap
Brand: Garmin
SKU: 010-02365-02
Price: 952.93 GBP
Availability: InStock

£952.93

Tax included. Shipping calculated at checkout.

010-02365-02

The Garmin GPSMAP 723xsv is a 7-inch touchscreen chartplotter with built-in SideVu, ClearVu and traditional CHIRP sonar. A high-resolution IPS display, preloaded worldwide basemap and full Garmin Marine Network, NMEA 2000 and Wi-Fi connectivity make it a complete navigation and fishfinding hub.

Quantity

✓ In stock — ready for immediate collection or dispatch

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Description

The Garmin GPSMAP 723xsv combines a 7-inch WSVGA IPS touchscreen with built-in sonar, making it a complete navigation and fishfinding display for smaller boats. The bright, high-contrast screen stays clear in direct sunlight and across wide viewing angles.

Its 12-pin sonar port drives Garmin SideVu and ClearVu scanning sonar plus traditional CHIRP, giving photo-like views of structure beneath and to the sides of the boat. For live imaging, it connects to Garmin Panoptix and LiveScope modules across the Garmin Marine Network.

A preloaded worldwide basemap supports premium Garmin Navionics+ and Garmin Navionics Vision+ charts with Auto Guidance and detailed coastal data. Built-in Wi-Fi pairs with the ActiveCaptain app for updates and notifications, while NMEA 2000, NMEA 0183 and Garmin Marine Network connectivity link radar, autopilot, engine data and instruments. The housing is rated to IPX7.

Compatibility guides

Compatible transducers and adaptor cables for the Garmin GPSMAP 723xsv (010-02365-02)

PRODUCT DETAILS

Built-in Ultra High-Definition Garmin SideVu, ClearVu and traditional CHIRP sonar via the 12-pin transducer port
7-inch WSVGA IPS touchscreen (1024 x 600) with bright, high-contrast display for clear viewing in direct sunlight
Preloaded worldwide basemap with support for premium Garmin Navionics+ and Garmin Navionics Vision+ cartography
Built-in Wi-Fi and ActiveCaptain app connectivity for chart updates, smart notifications and Garmin Helm remote control
Expandable to Garmin Panoptix and LiveScope live-imaging sonar across the Garmin Marine Network
Full networking via Garmin Marine Network, NMEA 2000 and NMEA 0183 for radar, autopilot, engine and instrument data
Rugged IPX7 waterproof housing with two microSD card slots (32 GB max) for charts and Quickdraw Contours

GPSMAP 723xsv chartplotter
Bail mount with knobs
Flush-mount kit and template
Power/data cable
NMEA 2000 drop cable and T-connector
Protective sun cover
Ferrite beads
Mounting hardware
Documentation

No exploded diagram available for this product.

Garmin GT51M-TH Thru-Hull Transducer 12 pin

Garmin GT30-TH Through Hull 12 pin

Garmin GT51M-THP Thru-Hull Transducers 12 pin

Garmin GT34UHD-TH Thru-hull Transducer

Garmin GT56UHD-THP

Garmin GT56UHD-TH

Garmin GT34UHD-THP Transducers Thru-Hull Pair

Garmin GT30-THP Through Hull Pair 12 pin

Garmin GT23M-TH Thru-Hull Transducer 8 pin

Garmin GT52HW-TM Transom Mount 12-pin

Garmin GT56UHD-TM

Garmin GT20-TM Transom Mount 8 pin

Garmin GT15M-IH In Hull Transducer 8 pin

Garmin GT24UHD-TM Transducer

Garmin GT21-TH Thru-Hull Transducer 8 pin

Garmin GT22HW-TM Transom Mount Transducer 8 pin

Garmin GT51M-TH Thru Hull Mount 12 pin

Garmin GT51M-TM Transom Mount Transducer 12 pin

Adapter Plate (GPSMAP® 7x2 to 7x3 Series)

Garmin GMR Fantom 54

Garmin GMR Fantom 56

Garmin GMR Fantom 124

Garmin GMR Fantom 126

GMR Fantom™ 254, Open Array and Pedestal, White

GMR Fantom™ 256, Open Array and Pedestal, White

GMR Fantom™ 54, Open Array and Pedestal, Black

GMR Fantom™ 56, Open Array and Pedestal, Black

GMR Fantom™ 124, Open Array and Pedestal, Black

GMR Fantom™ 126, Open Array and Pedestal, Black

GMR Fantom™ 254, Open Array and Pedestal, Black

GMR Fantom™ 256, Open Array and Pedestal, Black

GMR Fantom™ 18x Dome Radar Radome, White

GMR Fantom 18x Radome, Black

GMR Fantom™ 18x/24x Dome Radar 24x Radome, White

GMR Fantom™ 18x/24x Dome Radar 24x Radome, Black

Display

Display size	17.8 cm (7.0 in) diagonal; 154.6 x 91.0 mm viewable
Display resolution	WSVGA, 1024 x 600 pixels
Display type	IPS touchscreen

Physical

Dimensions (W x H x D)	192.3 x 140.3 x 74.1 mm (7 9/16 x 5 1/2 x 2 15/16 in)
Weight	1.3 kg (2.8 lb)
Material	Polycarbonate plastic and die-cast aluminium
Compass-safe distance	35 cm (13.78 in)

Electrical

Input voltage	10 to 32 Vdc
Maximum power usage at 10 Vdc	35.9 W (sonar model)
Typical current draw at 12 Vdc	1.18 A (sonar model)
Maximum current draw at 12 Vdc	2.96 A (sonar model)
Fuse	6 A, 125 V fast-acting

Sonar

Sonar technologies	Built-in Garmin SideVu, Garmin ClearVu and traditional CHIRP sonar
Transducer connector	12-pin sonar port
Panoptix and LiveScope support	Compatible with Garmin Panoptix and LiveScope sonar via the Garmin Marine Network

Connectivity

Wireless	Wi-Fi, 2.4 GHz @ 18.3 dBm maximum
NMEA 2000 LEN	2 @ 9 Vdc (75 mA max draw)
Data interfaces	NMEA 2000, NMEA 0183, Garmin Marine Network (Ethernet), J1939 engine network
Video input	Composite video in (CVBS)
Memory card	2 microSD card slots, 32 GB max card size

GPS/GNSS

GPS

Internal GPS antenna; supports external GPS source over NMEA 2000

Environmental

Water rating	IEC 60529 IPX7
Operating temperature range	-15 to 55°C (5 to 131°F)

What sonar does the GPSMAP 723xsv include?

The xsv model has built-in Garmin SideVu and ClearVu scanning sonar plus traditional CHIRP sonar, connected through a 12-pin transducer port. It also supports Garmin Panoptix and LiveScope live-imaging sonar over the Garmin Marine Network.

Is a transducer included?

No. The chartplotter is supplied without a transducer, so you can select a compatible Garmin transducer to suit your boat and the sonar features you want. The unit uses a 12-pin sonar connector.

How is the 723xsv different from the standard GPSMAP 723?

The 723xsv (010-02365-02) adds built-in SideVu, ClearVu and traditional CHIRP sonar via a 12-pin transducer port. The standard GPSMAP 723 (010-02365-00) is a chart-only model with no built-in sonar.

What charts does it support?

It includes a preloaded worldwide basemap and supports premium Garmin Navionics+ and Garmin Navionics Vision+ cartography, along with Garmin Quickdraw Contours mapping stored on microSD.

What is the power draw and waterproof rating?

As a sonar model it draws 1.18 A typical and up to 2.96 A at 12 Vdc, accepts 10 to 32 Vdc and uses a 6 A fast-acting fuse. The housing is rated to IEC 60529 IPX7 for temporary immersion.
