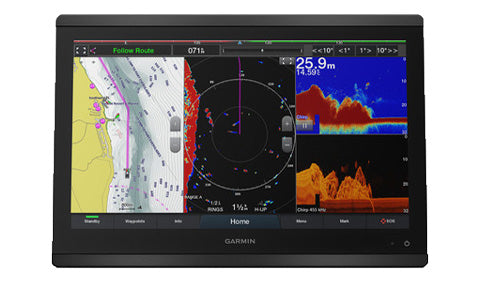

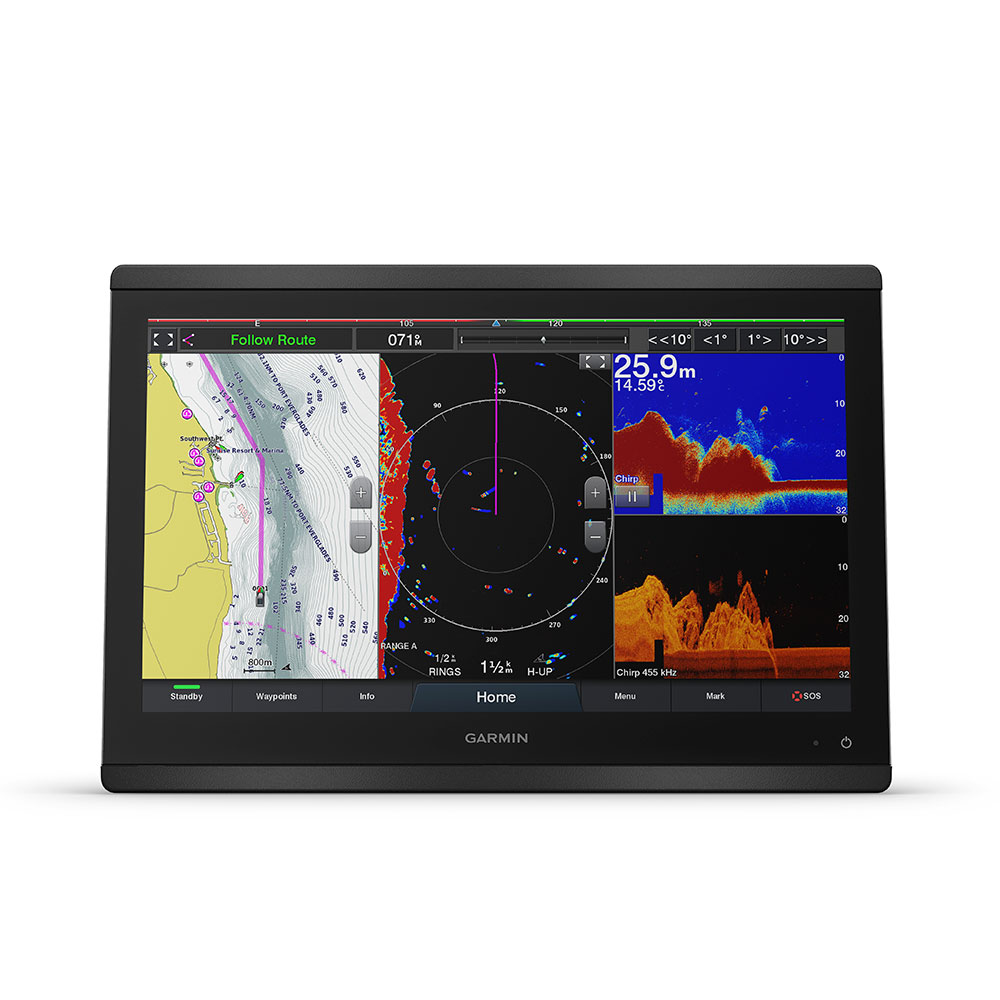

Garmin GPSMAP 8416xsv 16 Inch Chartplotter Fishfinder
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The GPSMAP 8416xsv pairs premium glass-helm performance with built-in sonar on a large 15.6-inch screen, ideal for serious sport fishermen, cruisers and sailors. The full HD IPS touchscreen offers wide viewing angles, superior clarity and sunlight readability, even through polarised sunglasses, while the maximum-glass design flat mounts edge-to-edge or flush with a low profile.
Built-in sonar covers dual-channel 1 kW traditional CHIRP, CHIRP ClearVu and CHIRP SideVu scanning, plus Ultra High-Definition scanning sonar, with no black box required, and the unit supports the full Panoptix all-seeing sonar line (transducers sold separately). Wi-Fi, ANT and NMEA 2000 connect the 8416xsv to the Garmin Marine Network for sharing radar, sonar, cameras and instruments across helms, and OneHelm compatibility brings supported third-party systems to the touchscreen. The rugged housing carries an IPX7 water rating.
PRODUCT DETAILS
- 15.6-inch full HD IPS touchscreen (1920 x 1080) with wide viewing angles and sunlight readability
- Built-in dual-channel 1 kW traditional CHIRP, CHIRP ClearVu and CHIRP SideVu sonar (no black box required)
- Built-in Ultra High-Definition scanning sonar support and full Panoptix transducer compatibility
- Maximum-glass design for edge-to-edge flat mounting or low-profile flush mounting
- Large-format networked glass-helm MFD with Wi-Fi, ANT, NMEA 2000 and the Garmin Marine Network
- OneHelm compatible for integrated control of supported third-party onboard systems
- IPX7 waterproof rating with dual microSD card slots (32 GB max)
- GPSMAP 8416xsv multifunction display
- Flush mount kit and gasket
- Bail mount and knobs
- Power cable
- Mounting hardware
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
Garmin USB Card Reader
GPSMAP Series Update on SD™ Card
Garmin NMEA 2000 Multi-port T-connector
Garmin GMS 10 Ethernet Network Port Expander or Network Switch
GTEMP 10-TH Thru-hull Temp Sensor
Garmin 8-pin Transducer to 12-pin Sounder Adapter Cable with XID
Garmin Reactor Autopilot Remote Control
Garmin Weather Cap For Power Data Cable
Extension Cable for 12-pin Garmin Scanning Transducers, 1.3 m (4.3 ft)
Garmin GDT 43 Analogue Thru Hull Depth and Temperature Transducer
Garmin NMEA2000 Field Installation Female Connector
Garmin Cable Grommet for Marine Network Cables
Garmin Surface Mount Adapter for GPS Antenna
Garmin GPSMAP USB Cable
Garmin GST 43 and GST 10 Bundle Analogue Thru Hull Speed Transducer and NMEA2000 Converter Bundle
Garmin Marine Network Cables (Large Connectors), 50 ft (15.24 m)
Garmin NMEA2000 Backbone Cable 10m
Garmin Under Deck Mount Adapter for GPS Antenna
Garmin GPSMAP 8416 or 8616 Trim Piece Snap Covers
Garmin Bare Wire Transducer to 12-pin Sounder Wire Block Adapter
Garmin GPSMAP USB OTG Adaper Cable
Garmin GET 10 Analogue Engine Tilt Sender to NMEA2000 Adapter
Heavy Duty Transom Mount with Spray Shield (4/8/12-pin Transducers)
Garmin NMEA2000 Power Isolator
Garmin 9-axis Heading Sensor
Garmin NMEA2000 Field Installation Male Connector
Garmin SD Card Reader Chart Slot for 8000 series
Garmin Replacement RJ45 Split Threaded collar Connector 2 Pack 18mm
Garmin GPSMAP 8416 Bail Mount with Knobs
Garmin NMEA2000 Terminator Female
Garmin GST 43 Analogue Thru Hull Speed Transducer
GPS 24xd HVS - 010-02316-00
Garmin GPSMAP 8416 Flush Mount Kit
Garmin 6ft Marine Network Cable Ethernet RJ45
Garmin GRID 20 Remote Input device Horizontal orientation
Garmin GPSMAP 8416 Protective Cover
Garmin GST 10 Analogue Water Speed and Temperature Adapter
Garmin BlueNet™ 30 Gateway
Garmin NMEA2000 Tee Connector
Garmin Audio NMEA 0183 cable for networking GPSMAP 8400 and 8600
Garmin GPSMAP 8x16 Magnetic protective cover
Garmin GPS 24XD Dual Frequency Antenna
Garmin Split collar 11mm connector
Garmin Right angle NMEA 2000 cable
Transducer Extension Cable 8-pin 10ft
Garmin NMEA2000 Power Cable
Yamaha® Engine Bus to J1939 Adapter Cable
Garmin HDMI Cable For GPSMAP
Garmin Pole mount Adapter for GPS Antenna
Garmin GDT 43 Analogue Thru Hull Depth and Temperature Transducer and NMEA2000 Converter Bundle
No compatible products found.
Display
| Display size | 345.2 x 194.6 mm (15.6 in. diagonal) |
| Display resolution | FHD, 1920 x 1080 pixels |
| Display type | IPS touchscreen |
Physical
| Dimensions (W x H x D) | 384.7 x 262.6 x 76 mm |
| Dimensions on bail mount (W x H x D) | 405.6 x 279.1 x 103 mm |
| Weight | 4.4 kg (9.6 lb.) |
| Material | Polycarbonate plastic and die-cast aluminium |
| Compass-safe distance | 105 cm (41.3 in.) |
| Clearance behind flush-mounted device | 11.1 cm (4 3/8 in.) |
Electrical
| Input voltage | 10 to 32 Vdc |
| Max. power usage at 10 Vdc | 52.1 W |
| Typical current draw at 12 Vdc | 1.3 A |
| Max. current draw at 12 Vdc | 6.0 A |
| Fuse | 10 A, 125 V fast-acting |
Connectivity
| NMEA 2000 LEN @ 9 Vdc | 2 |
| NMEA 2000 draw | 75 mA max. |
| Wireless frequency and protocols | Wi-Fi and ANT technologies; 2.4 GHz @ 12.3 dBm nominal |
| Memory card | 2 microSD card slots, 32 GB max. card size |
| HTML integration | Compatible with OneHelm integration |
GPS/GNSS
| Max. waypoints | 5,000 |
| Max. routes | 100 (250 waypoints each) |
| Max. active track points | 50,000 points, 50 saved tracks |
Environmental
| Temperature range | -15 to 55°C (5 to 131°F) |
| Water rating | IEC 60529 IPX7 |
Sonar
| Sonar frequencies | Traditional: 50/200, 77/200, 83/200 kHz; Single Channel CHIRP: 40 to 250 kHz; Garmin ClearVu CHIRP: 260/455/800 kHz; Ultra High-Definition ClearVu: 800 kHz (CHIRP 760-880 kHz); Ultra High-Definition SideVu: 1,200 kHz (CHIRP 1,060-1,170 kHz) |
| Sonar transmit power (RMS) | CHIRP: 1000 W; Garmin ClearVu and SideVu CHIRP: 500 W |
| Sonar depth | 5,000 ft. at 1 kW (dependent on transducer and water conditions) |
