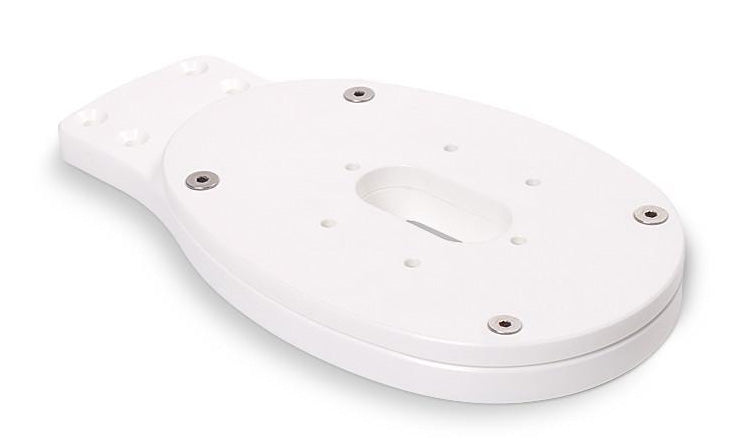

Modular Top Plate for Mounts ending in M1. M2 to fit FLIR M or Raymarine T series thermal cameras
Manufacturer Part No:
ADA-F1 |
£198.33 ex-VAT
Seaview Modular Top Plates are designed to be mounted onto Seaview Modular Mounts. These Top Plates eliminate the "swiss cheese" look of most other radar and satdome mounts. With Seaview Top Plates the result is only four visible mounting screws to secure electronics.
Modular Top Plate for Mounts ending in M1 or M2 to fit KVH M1. M2 .M3. TV1. TV3. Intellian i1. i2. i3 and Raymarine 33.37STV 37STV
Seaview Modular Top Plates are designed to be mounted onto Seaview Modular Mounts. These Top Plates eliminate the "swiss cheese" look of most other radar and satdome mounts. With Seaview Top Plates the result is only four visible mounting screws to secure electronics.
£133.33 ex-VAT
Modular Top Plate for Mounts ending in M1 or M2 to fit KVH M5. M7. TV5.TV6. Intellian i4. i6. d6 and Raymarine 45. 60STV.
Seaview Modular Top Plates are designed to be mounted onto Seaview Modular Mounts. These Top Plates eliminate the "swiss cheese" look of most other radar and satdome mounts. With Seaview Top Plates the result is only four visible mounting screws to secure electronics.
£225.83 ex-VAT
Modular Top Plate for Mounts ending in M2 to fit KVH M1. TV1. Intellian i1. i2. Raymarine 33STV. Seaking 1500. 1800-HD
Seaview Modular Top Plates are designed to be mounted onto Seaview Modular Mounts. These Top Plates eliminate the "swiss cheese" look of most other radar and satdome mounts. With Seaview Top Plates the result is only four visible mounting screws to secure electronics.
£253.33 ex-VAT
Modular Top Plate for all FB150 & FB250 Domes
Seaview Modular Top Plates are designed to be mounted onto Seaview Modular Mounts. These Top Plates eliminate the "swiss cheese" look of most other radar and satdome mounts. With Seaview Top Plates the result is only four visible mounting screws to secure electronics.
£255.00 ex-VAT
Modular Top Plate for Mounts ending in M1. M2 to fit FLIR M or Raymarine T series thermal cameras
Seaview Modular Top Plates are designed to be mounted onto Seaview Modular Mounts. These Top Plates eliminate the "swiss cheese" look of most other radar and satdome mounts. With Seaview Top Plates the result is only four visible mounting screws to secure electronics.
£198.33 ex-VAT
Modular Top Plate for FLIR thermal cameras M100 and M200
Seaview Modular Top Plates are designed to be mounted onto Seaview Modular Mounts. These Top Plates eliminate the "swiss cheese" look of most other radar and satdome mounts. With Seaview Top Plates the result is only four visible mounting screws to secure electronics.
£201.67 ex-VAT
If you have selected a modular mount ending in "M1" (ex: PMA-57-M1)use the "For M1 Mounts" column below for the correct Top Plate. Mounts ending in "M2" (ex: PMA-DM2-M2) use "For M2 Mounts" column.
| Make & Model | Part # | Part # | LIGHT BAR |
| For M1 Mounts | For M2 Mounts | Optional | |
| ACR | |||
| RCL50B, RCL75, RCL100, RCL1000 | ADABLANK | ADABLANK | LTB13 or LTBS |
| RCL300 | CALL | CALL | CALL |
| COMNAV | |||
| Explorer V2/V3 | ADAF1 | ADAF1 | LTBS |
| FLIR | |||
| MD324, MD625, M324XP, M324L, M324S, M324CS, M625XP, M625L, M625S, M625CS, M612L, M617CS, M618CS, T200, T300, T400 | ADAF1 | ADAF1 | LTB13 or LTBS |
| M132, M232 Series (Hiko) | ADAF2 | ADAF2 | LTB13 or LTBS |
| FURUNO | |||
|
SC30, SC703, SC1303, DRS4DL, DRS4D, DRS4W, DRS4DNXT |
ADAR1 | ADAR1DMLTB | LTBR |
| DRS6A-NXT | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| Open Array Radar 1942 | ADAR2 | ADAR1DMLTB | LTBOA |
| GARMIN | |||
| FANTOM18, GMR18(HD), GMR18x(HD) | ADAR1 | ADAR1DMLTB | LTBR |
| GMR24(HD), GMR24x(HD) | ADAR1 | ADAR1DMLTB | LTBR |
| Fantom, 4'-6' Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| GLOMEX | |||
| 20"-27" Satdome | ADAS1 | ADAS3 | LTBS24 |
| HUMMINBIRD | |||
| HB2124 Chirp Radar | ADAR1 | ADAR1DMLTB | LTBR |
| RH44, RH45 4' - 6' Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| INTELLIAN | |||
| i2 (FB150 in i2 Matching Dome) | ADAS1 | ADAS3 | LTBS |
| i3 (FB150 in i3 Matching Dome) | ADAS1 | ADAS1 | LTBS |
| i4, i4P (FB150 in i4 Matching Dome) | ADAS2 | ADAS2 | LTBS |
| i5 | ADAS2 | ADAS2 | LTBS24 |
| i6, i6P, S6HD, FB500 | ADAS2 | ADAS2 | LTBS24 |
| FB150, FB250 | ADAS4 | ADAS4 | LTBS |
| JRC | |||
| 15" Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| 24" Radar Dome | ADAR2 | ADAR1DMLTB | LTBR |
| KODEN | |||
| 18" - 25" Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| 4' - 6' Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| KVH | |||
| M1DX, M1, TV1, LTE-1 | ADAS1 | ADAS3 | LTBS |
| M2, M3, M3DX, M3ST, V3, V3-IP, TV3 | ADAS1 | ADAS1 | LTBS |
| M5, TV5, FB250 (18”) | ADAS2 | ADAS2 | LTBS |
| M7, M7SK, HD7, V7, TV6, FB500(26”), F55, V3- IP(24”) | ADAS2 | ADAS2 | LTBS24 |
| V7-IP | CALL | CALL | CALL |
| FB150(10.8”), FB250(14”), Fleet One, Fleet33 | ADAS4 | ADAS4 | LTBS |
| LOWRANCE | |||
| 3G, 4G Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| LORENZ | |||
| 12"-24" Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| 4'-6' Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| RAYMARINE | |||
| RD418D, RD418HD, RD424D, RD424HD, Quantum, Quantum 2 | ADAR1 | ADAR1DMLTB | LTBR |
| RA1048(S)HD, RA3048(S)HD, Magnum 4’ | ADAR1 | ADAR1DMLTB | LTBOA |
| RA1072(S)HD, RA3072(S)HD, Magnum 6’ | ADAR1 | ADAR1DMLTB | LTBOA6 |
| 33STV | ADAS1 | ADAS3 | LTBS |
| 37STV | ADAS1 | ADAS1 | LTBS |
| 45STV | ADAS2 | ADAS2 | LTBS |
| 60STV | ADAS2 | ADAS2 | LTBS24 |
| T200, T300, T400 | ADAF1 | ADAF1 | LTB13 or LTBS |
| SEA-TEL (COBHAM) | |||
| ST14, FX150 (16.5") | ADAS2 | ADAS2 | LTBS24 |
| C18, FX250 (24") | ADAS2 | ADAS2 | LTBS24 |
| SIMRAD | |||
| 3G, 4G Radar Dome, HALO24 | ADAR1 | ADAR1DMLTB | LTBR |
| DX64S | ADAR2 | N/A | LTBR |
| TX06S | ADAR1 | ADAR1DMLTB | LTBOA |
| TX10S | ADAR1 | ADAR1DMLTB | LTBOA6 |
| 4'-6' Halo Open Array Radar | ADAR1 + ADAHALO3 | N/A | LTBOA or LTBOA6 |
| 4' - 6' RB Series Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| SITEX | |||
| 18" (T760/T921) Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| 24" (T761) Radar Dome | ADAR1 | N/A | LTBR |
| 25" Radar Dome | ADAR1 | ADAR1DMLTB | LTBR |
| 4'-6' Open Array Radar | ADAR1 | ADAR1DMLTB | LTBOA or LTBOA6 |
| SIEWA / TECH MARINE | |||
| 12"-24" Radar Dome | ADAR1 | N/A | LTBR |
| 4'-6' Open Array Radar | ADAR1 | N/A | LTBOA or LTBOA6 |
| THRANE & THRANE | |||
| FB150, FB250, Fleet 33, 33+ | ADAS4 | ADAS4 | LTBS |
| Sailor FB500, Fleet 55+ | ADAS1 | ADAS3 | LTBS24 |
