Lowrance HDS Live Explore

Lowrance HDS Live Explore

Multi-touch Fishfinder Chartplotter Displays

HDS LIVE will undoubtedly carry on that tradition behind premium performance and support for the best collection of innovative sonar features available – from new Active Imaging™ and StructureScan® 3D with Active Imaging to FishReveal™ and LiveSight™ real-time sonar – you will experience a new level of fishfinding performance with HDS LIVE

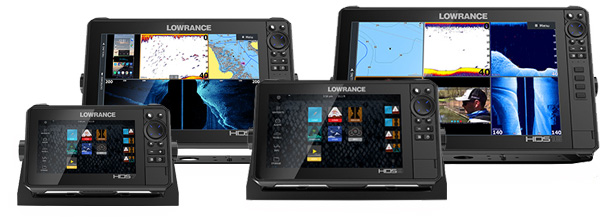

Lowrance HDS Live

Lowrance LiveSight™

Lowrance Active Imaging™

Lowrance HDS Live

With HDS LIVE, we took the most popular fishfinder series on the professional fishing circuit and made it even better for all anglers with a sleek, new design, faster processor, best-ever built-in suite of HDS navigation tools and support for a wide array of new fishfinding technology, unmatched by any other fishfinder. Prepare yourself for a new level of fishfinding performance with HDS LIVE, which includes built-in Lowrance® CHIRP sonar, support for Active Imaging™, StructureScan® 3D with Active Imaging and revolutionary LiveSight™ Real-Time Sonar.

Key Features

Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready
Active Imaging™ 2-in-1 (Side/Down) sonar ready
StructureScan® 3D with Active Imaging enhancements – Coming Fall 2018
LiveSight real-time sonar compatible – Coming Spring 2019
Smartphone notifications
FishReveal™ Smart Target View
High-resolution SolarMAX™ HD multi-touch screen
Wireless and Bluetooth® connectivity

Active Imaging

Perfect for pinpointing fish-holding areas like rockpiles, standing timber, weedbeds, ditches and drop-offs, Active Imaging™ sonar delivers superior clarity and the highest resolution images of fish and structure at a longer range than any other structure-imaging technology.

Fish in Real-Time with LiveSight Sonar (Coming Early 2019)

Sonar interpretation made simple, LiveSight™ sonar turns all fishing into sight fishing, delivering the most detailed views of fish, down to every turn and flip of the tail, as they swim in and around cover. You’ll be fishing in real-time as you watch fish react to your lure, see how they are relating to structure and gain insight on what will work, what won’t and what to do next.


Makes fish easier to see on DownScan Imaging™ by combining CHIRP sonar fish targets with superior, high-resolution views of bottom detail, structure and bait fish. FishReveal removes the need to display CHIRP sonar and DownScan Imaging in a two-panel split-screen.

Mapping in Real-Time

Update the mapping of your favorite fishing spot or map unmapped areas with ½ foot contours – in real time – on the screen of your fishfinder/chartplotter with C-MAP Genesis Live. Genesis Live uses digital depth to create high-definition maps featuring 1/2-foot contours. Target key fishing areas with Genesis Live maps, which makes it easy to find areas where fish like to hide, like drop-offs, points, ditches and more. A truly customizable mapping experience, Genesis Live gives you control over contour transparency, contour density, depth and safety shading color palettes, and more. Create your Genesis Live maps in real-time, saving them as you go to a microSD card.

Connections HDS Live 7 and 9

1. NMEA 2000

2.Ethernet (radar) HDS-7 x 1 HDS-9 x 2

3. Power / NMEA0183 / Analog Video In

4. Traditional Sonar / Active Imaging 3D / LiveSight

5. 9-Pin XSonic Transducer

Connections HDS Live 12 and 16

1. NMEA 2000

2.Ethernet (radar) HDS-12 x 2 HDS-16 x 2

3. HDMI - Video In

4. USB

5. Power / NMEA0183 / Analog Video In

6. Traditional Sonar / Active Imaging 3D / LiveSight

7. 9-Pin XSonic Transducer

Smartphone Notifications

Keep your eyes on the fish and never miss an important text or call with smartphone notifications built into HDS LIVE. Turn off phone notifications for uninterrupted fishing, or leave them on to receive popup notifications on the screen of your HDS LIVE display

LiveCast Smartphone Integration (HDS LIVE 16/12 only)

You no longer have to choose between watching the big game and spending a day on the water with LiveCast™ smartphone integration. Watch video, view Google maps and fishing data on the high-resolution screen of your HDS LIVE display via the HDMI connection on HDS LIVE 16- and 12-inch models. View data from your smartphone and keep your eye on the fish with a LiveCast-sonar split screen.

Lowrance HDS-7 Live



Lowrance HDS-9 Live


Lowrance HDS-12 Live



Lowrance HDS-16 Live
