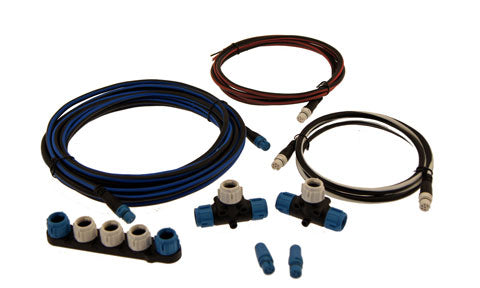

Raymarine Evolution Cabling Kit (SeaTalkng)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Raymarine Evolution cabling kit (R70160) supplies the SeaTalkng parts needed to wire a standard Evolution autopilot system. Per the EV-1 installation instructions (document 87472), the kit consists of one 5-way connector block (A06064), one 3 m spur cable (A06040), one 2 m power cable (A06049) and two backbone terminators (A06031). Together these create a compact SeaTalkng backbone that links the EV-1 or EV-2 sensor, the ACU and a p70s or p70Rs control head, with fused 12 V power feeding the bus. The kit is included in the Evolution system packs and is the right starting point when building a system from separate components. Additional spur cables, T-pieces and backbone lengths are available separately.
PRODUCT DETAILS
- Official Evolution autopilot SeaTalkng cabling kit
- 1 x 5-way connector block (A06064)
- 1 x spur cable, 3 m (A06040)
- 1 x power cable, 2 m (A06049)
- 2 x backbone terminators (A06031)
- Included in Evolution system packs
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Raymarine Element 7 HV Chartplotter with HyperVision Sonar
Raymarine Element 9 HV Chartplotter with HyperVision Sonar
Raymarine Element 12 HV Chartplotter with HyperVision Sonar
Raymarine Element 7 S Chartplotter with CHIRP Sonar
Raymarine Element 9 S Chartplotter with CHIRP Sonar
Raymarine Element 12 S Chartplotter with CHIRP Sonar
Raymarine EV-1 Sensor Core
Raymarine EV-2 Sensor Core
Raymarine ACU-100 Actuator Control Unit
Raymarine ACU-150 Actuator Control Unit
Raymarine ACU-200 Actuator Control Unit
Raymarine ACU-300 Actuator Control Unit
Raymarine ACU-400 Actuator Control Unit
Raymarine p70s Autopilot Control Head
Raymarine p70Rs Autopilot Control Head
Kit contents
| 5-way connector | 1 x A06064 |
| Spur cable | 1 x 3 m (9.8 ft), A06040 |
| Power cable | 1 x 2 m (6.6 ft), A06049 |
| Backbone terminators | 2 x A06031 |
