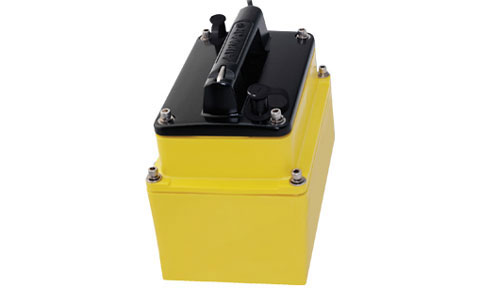

B&G, Lowrance, Simrad XSonic Airmar M260 50-200 kHz In Hull Transducer
Manufacturer Part No:
000-13914-001 |
£894.66 ex-VAT
The M260 is a plastic/urethane, in-hull Broadband transducer, ideal for smaller sportfishing and commercial vessels 8 m (25 ft) and up, fishing in depths of less than 900 m (3000 ft). Black 9 Pin connector. The dual-frequency M260 includes an array of seven ceramic elements delivering 50 kHz with a 19° beam width, and a single 200 kHz element with a 6° beam width. 50 kHz low-frequency operation offers a maximum operational depth of 900 m (3000 ft), while 200 kHz high-frequency provides higher-resolution fish arches and bottom detail in shallower water.
Features
- Top-of-the-line broadband, in-hull transducer
- Recommended for solid fiberglass hulls
- Depth only
- Innovative tank design allows for bow-stern or port-starboard mounting
- Non-toxic anti-freeze (propylene glycol) is used to fill the tank
- Fiberglass resin is used to adhere tank to the hull
- Interfaces to any 600 W or 1 kW echosounder
- Boat Size: 8 m (25’) and up
Specifications
- Weight: 6.2 kg (13.5 lb)
- Hull Deadrise: 0° to 30°
- Acoustic Window: Layered plastic urethane
