Description

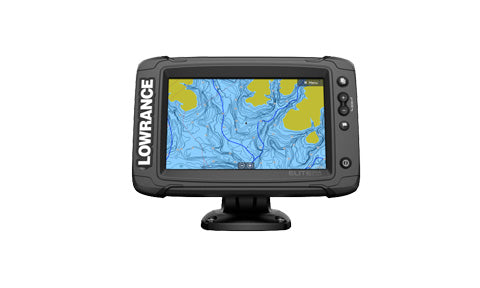

High-resolution 7-inch display with wireless networking, Active Imaging support.
With the Elite-7 Ti
2
, you get more advanced fishfinding features and connectivity, without the premium price.
From high-detail Active Imaging™, FishReveal™, built-in Genesis Live real-time mapping and enhanced screen clarity and target separation to features that make your life easier on the water, like an easy-to-use touchscreen, wireless networking, smartphone notifications and trolling motor/Power Pole® integration – Elite Ti
2
was designed to help you have an easier time finding fish.
Active Imaging 3-in-1 sonar (CHIRP, SideScan and DownScan) and 2-in-1 sonar (SideScan and DownScan) lift Elite-7 Ti
2
fishfinding performance to another level, offering offer greater resolution, clarity and contrast at a range unmatched by any fishfinder in its category.
Elite-7 Ti
2
delivers more powerful navigation features with preloaded coastal US, Australia, New Zealand or worldwide basemap, C-MAP Easy Routing + Navionics® Autorouting* and Genesis Live real-time mapping.
You will have a much easier time targeting key areas with US Inland fishing map that features 1-foot contours on 4,000 lakes. If you would rather create your own maps of a favourite fishing spot or a lake without detailed mapping, take advantage of the built-in Genesis Live real-time mapping capability to create your own, exclusive ½-foot (15 cm) contour maps live on the screen of your Elite Ti
2
display.
New Elite Ti
2
wireless networking allows you to share sonar, waypoint and route data wirelessly between Elite Ti
2
displays, removing the need to run cable.
With new smartphone notification capability built into Elite-7 Ti
2
, you can keep your eyes on the fish and never miss another text or call; or turn off notifications for uninterrupted fishing.
*Navionics subscription required. See Navionics.com for more details
Key features
- Active Imaging™ 3-in-1 (CHIRP/SideScan/DownScan) ready*
- C-MAP® Genesis Live
- Smartphone Notifications
- Wireless Networking
- FishReveal™ Smart Target View
- C-MAP® Easy Routing, Navionics® Autorouting capability**
- Preloaded coastal US, Australia, New Zealand or worldwide basemap, plus a multitude of mapping options, including C-MAP, Navionics® and more
- Easy-to-use, high-resolution SolarMAX™ touchscreen display
- Built-in CHIRP and Broadband Sounder®
- Touchscreen control of Power-Pole® anchors, MotorGuide® Xi5 Trolling Motor***
- Integrated wireless connectivity
- SonicHub®2 compatible
- NMEA 2000® engine support
- Enhanced Surface Clarity lets you see more fish targets near the surface
- Quick Access Control Bar provides one–touch access to system controls
- * Transducer sold separately. ** Subscription may be required. *** Requires MotorGuide PinPoint Gateway.
In the box
- 1 x Fuse and fuse holder
- 1 x 7-pin Transducer to 9-pin Sonar Adapter
PRODUCT DETAILS
- Active Imaging™ 3-in-1 (CHIRP/SideScan/DownScan) ready*
- C-MAP® Genesis Live
- Smartphone Notifications
- Wireless Networking
- FishReveal™ Smart Target View
- C-MAP® Easy Routing, Navionics® Autorouting capability**
- Preloaded coastal US, Australia, New Zealand or worldwide basemap, plus a multitude of mapping options, including C-MAP, Navionics® and more
- Easy-to-use, high-resolution SolarMAX™ touchscreen display
- Built-in CHIRP and Broadband Sounder®
- Touchscreen control of Power-Pole® anchors, MotorGuide® Xi5 Trolling Motor***
- Integrated wireless connectivity
- SonicHub®2 compatible
- NMEA 2000® engine support
- Enhanced Surface Clarity lets you see more fish targets near the surface
- Quick Access Control Bar provides one–touch access to system controls
- * Transducer sold separately. ** Subscription may be required. *** Requires MotorGuide PinPoint Gateway.
- 1 x Fuse and fuse holder
- 1 x 7-pin Transducer to 9-pin Sonar Adapter
No exploded diagram available for this product.
9PIN HIGH SPEED SKIMMER L/H PK ASY
9PIN HIGH SPEED SKIMMER M/H PK ASY
B&G, Lowrance, Simrad TotalScan Skimmer Transducer
B&G, Lowrance, Simrad TotalScan Thru Hull Transducer Medium High CHIRP
B&G, Lowrance, Simrad TotalScan Thru Hull Transducer with Low and High CHIRP
B&G, Lowrance, Simrad XSonic Airmar B258 Bronze 50-200 khz Through Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar B45 Bronze 50-200 khz Through Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar M260 50-200 kHz In Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar P319 600W 50-200 kHz Plastic Through Hull
B&G, Lowrance, Simrad XSonic Airmar P66 Plastic 50-200 khz Transom mount transducer
B&G, Lowrance, Simrad XSonic Airmar P79 Plastic 50-200 kHz In Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 kHz Through Hull 0 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 12 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 20 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS260 1 kW 50-200 khz Through Hull Transducer
B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 0 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 12 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 20 Degree Tilt
B&G, Lowrance, Simrad XSonic Airmar TM260 Plastic 50-200 khz Transom mount transducer
B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 0 degree tilt
B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 12 degree tilt
B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 20 degree tilt
B&G, Lowrance, Simrad XSonic Skimmer HDI 50-200, 455-800 kHz Transom Mount
B&G, Lowrance, Simrad XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount
Lowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance B&G Simrad Active Imaging 3-IN-1 Transducer
Lowrance, Simrad LSS-2 - StructureScan HD Skimmer transducer
Lowrance, Simrad Plastic StructureScan HD thru-hull transducer
Lowrance, Simrad Stainless Steel StructureScan HD Pair off thru-hull transducers
Lowrance, Simrad Stainless Steel StructureScan HD Sonar thru-hull transducer.
Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 0 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 12 Degree Tilt
Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 20 Degree Tilt
Lowrance, Simrad XSonic Airmar TM150M
Lowrance, Simrad XSonic Airmar TM185 HW
Lowrance HDI Skimmer Transom Mount transducer with Temperature
Lowrance SplitShot Skimmer Transducer
Lowrance TripleShot Skimmer Transducer
Lowrance HDI Skimmer Transom Mount transducer
Lowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance Active Imaging 3 in 1 Transducer 1.8m cable
Display
| Display Resolution | 800x480 |
| Screen Brightness | 1200 nits |
| Backlight Color | Pure White LED |
| Viewing Angles | 80° top/bottom, 85° left/right |
Connectivity
| NMEA 2000 Connectivity | 1x Micro-C |
| Bluetooth | Integrated |
| Wifi | Internal 802.11b/g/n |
| Ethernet Ports | 1 virtual ethernet port |
| SD Card Storage | 1 micro SD card up to 32GB |
| 0183 sentence | TX / RX - GPSReceive GGA GLL GSA GSV VTG ZDATransmit GGA GLL GSA GSV VTG ZDA GLCTX / RX - NavigationReceive RMCTransmit AAM APB BOD BWC BWR RMC RMB XTE XDRTX / RX - SonarReceive DBT DPT MTW VLW VHMTransmit DBT DPT MTW VLW VHMTX / RX - CompassReceive HDG HDT HDMTransmit HDGTX / RX - WindReceive MWV MWDTransmit MWV MWDTX / RX - AIS / DSC*Receive DSC DSE VDM*AIS sentences are not bridged to or from NMEA 2000. |
| N2K PG Ns | Receive only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status, 130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843 Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s group function, 126992 System Time, 126996 Product Information, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration, 130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine Configuration |
Cartography
| Charts Supported | C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners |
Electrical
| Recommended Fuse Rating | 3A |
| Supply Voltage | 12v DC (10.8-17VDC) |
| Power Consumption Max | 0.9A @ 13VDC with backlight on full |
| Power Consumption Typical | 0.9A @ 13VDC with backlight on full |
| Power Consumption Min | 0.9A @ 13VDC with backlight on full |
Environment
| Shock Vibration | 100,000 cycles of 20 G |
| Waterproof Rating | IPX7 with card door closed |
| Storage Temperature Range | 4°F to 140°F (-20°C to 60°C ) |
| Operating Temperature Range | 5°F to 131°F (-15°C to 55°C ) |
| Humidity | 60°C, 95% relative humidity (RH) for 18 hours |
GPS
| GPS Receiver Channels | 16 |
| Time to First Fix | 30s |
| Update Rate | 10 Hz |
| Position Accuracy | 20m RMS |
| Correction | DGPS, WAAS |
MFD
| AIS | AIS Chart overlay. Target vessel details. |
| GPS | 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS |
| Waypoints, Routes, Tracks | 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail |
| Autopilot | MotorGuide Xi5/Xi3 Trolling Motor *requires Motorguide PinPoint Gateway |
| Sonar Compatibility | Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:StructureScan |
| Cartography Included | C-MAP US Costal / ROW Basemap (US Costal/ROW models)Navionics basemap (AMER, AUS/NZ and US Costal/ROW models) |
Physical
| Compass Safe | 12" (300mm) |
| Weight | 2.20 lbs (1.00 kg) |
| Mounting Type | Gimbal Bracket or Dash Flush Mount |
Other
| Interface | TouchscreenZoom +/-MOB = (+/- combined)PagesWaypointLight/Power |
| Warranty Period | 2 years + 3 additional years of upgrade options. Totaling 5 years |
| Languages | Language on products will vary depending on where you purchase the unit. However, all units since 2017 come with basic languages including English, French, German, Spanish, Finnish, Italian, Dutch, Norwegian, Portuguese, Swedish & Chinese. Additional language packs are also available, for these please contact your local distributors, retailers or dealer, where you purchased your unit from. Standard Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/Ελληνικά, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska Asian Language Pack: English (US), English (UK), Japanese/日本語, Korean/한국어, Thai/ภาษาไทย, Chinese - (simplified) China/简体中文, Chinese - (traditional) Taiwan/繁體中文 Eastern European Language Pack: Bulgarian/Български, German/Deutsch, Estonian/Eesti, English (US), English (UK), Spanish/Español, French/Français, Hebrew/ عبری , Croatian/ Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/ Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/Türkçe Russia/Ukraine Language pack: German/Deutsch, English (US), English (UK), Spanish/Español, Italian/Italiano, Russian/Русский, Ukraine/ Українська Middle Eastern Language Pack: Arabic (UAE)/ العربية , German/Deutsch, English (US), English (UK), Farsi/ فارسی , French/Français, Italian/Italiano |
