Lowrance
Lowrance, Branded XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

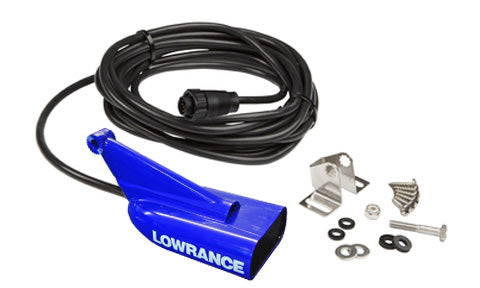

The Lowrance branded xSonic HDI Skimmer is a plastic transom-mount transducer that combines Hybrid Dual Imaging in a single unit, pairing a Med/High broadband 2D sounder with DownScan Imaging. It provides 83/200 kHz traditional frequencies for fish arches and depth, plus 455/800 kHz DownScan for photo-like images of structure beneath the boat.
Built-in water-temperature sensing is included, and the transducer comes with a transom bracket and a 6 m cable terminating in a black 9-pin xSonic connector that plugs directly into a compatible Lowrance, Simrad or B&G echosounder.
PRODUCT DETAILS
- HDI Skimmer transducer
- Mid/High with 9-pin connector
- Provides ideal sounding performance and cleanest sounder returns
- Built-in sensor for water-temp readings
- 1 x Replacement Mount for DSI Skimmer
- HDI Skimmer Med/High CHIRP/DownScan, 9 pin, 15', Lowrance Blue
No exploded diagram available for this product.
No compatible transducers listed for this product.
Lowrance Hook Reveal-7 50-200 HDI Chartplotter Fishfinder
Lowrance Hook Reveal-9 50-200 HDI Chartplotter Fishfinder
Lowrance Elite FS 7 No Transducer
Lowrance Elite FS 9 No Transducer
Lowrance HDS-7 Live No Transducer
Lowrance HDS-9 Live No Transducer
Lowrance HDS PRO 9. No Transducer
Lowrance HDS PRO 16. No Transducer
Simrad NSX 3009 9 Inch Touch Screen Display With 50/200 Khz HDI Transducer
Sonar
| Sonar Types | Hybrid Dual Imaging (HDI): Med/High broadband 2D sounder + DownScan Imaging |
| Operating Frequency | 83 / 200 kHz (2D) + 455 / 800 kHz (DownScan) |
| Functions | Depth and water temperature (built-in) |
Physical
| Mount Type | Plastic transom mount (HDI Skimmer bracket and hardware included) |
| Cable Length | 6 m |
Connectivity
| Connector | 9-pin (black xSonic) |
Compatibility
| Compatible Displays | Lowrance, Simrad and B&G units with a 9-pin xSonic sonar input |
