Lowrance
Lowrance HDS PRO 16. No Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

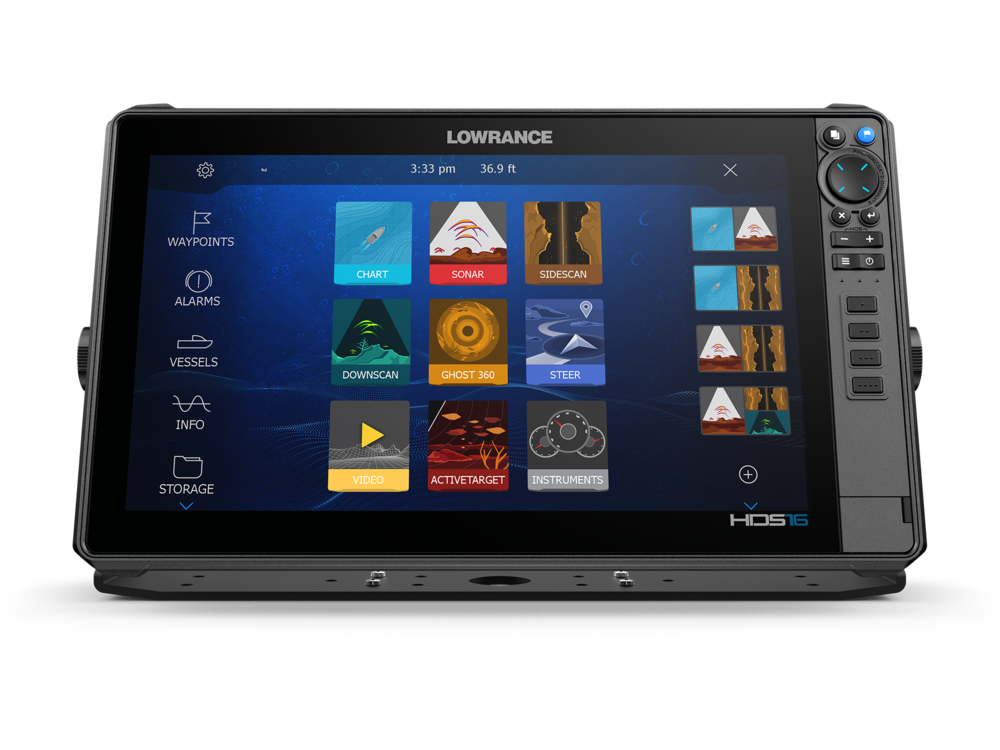

The Lowrance HDS PRO 16 is the 16-inch model in Lowrance's flagship HDS PRO fishfinder and chartplotter range. Its SolarMAX HD IPS multi-touch screen offers 1920 x 1080 Full HD resolution and more than 1200 nits of brightness, so it stays clear in direct sunlight, at extreme viewing angles and through polarised lenses. An 8-way keypad and four user-programmable quick-access keys keep control easy when conditions turn rough.
Supplied without a transducer, it lets you pair the system that suits how and where you fish. Integrated sonar covers CHIRP, Broadband, Active Imaging and Active Imaging HD DownScan and SideScan, with independent dual 1 kW capability depending on the transducer connected. The unit is also compatible with ActiveTarget 2 live sonar, S3100, StructureScan 3D and LiveSight, so you can watch fish react to your lure in real time.
The HDS PRO 16 sits at the heart of a complete Lowrance system. Two Ethernet ports allow up to six displays on a network, alongside NMEA 2000, NMEA 0183, built-in Wi-Fi and Bluetooth, HDMI input and a USB port. From the touchscreen you can run HALO radar, AIS overlays, autopilots, Ghost and Recon trolling motors and CZone digital switching.
C-MAP DISCOVER OnBoard charts come preloaded, with support for C-MAP REVEAL, C-MAP Genesis and Navionics charts. An integrated 10 Hz GPS and 8 GB of internal storage complete a display built for serious anglers.
PRODUCT DETAILS
- 16-inch SolarMAX HD IPS multi-touch display, 1920 x 1080 Full HD resolution and over 1200 nits brightness, viewable through polarised lenses
- Integrated CHIRP, Broadband, Active Imaging and Active Imaging HD sonar with independent dual 1 kW capability
- ActiveTarget 2 live sonar compatible for real-time views of fish and structure
- Preloaded C-MAP DISCOVER OnBoard charts with C-MAP REVEAL, Genesis and Navionics support
- Two Ethernet ports (up to 6 MFDs), NMEA 2000, NMEA 0183, HDMI input, USB, Wi-Fi and Bluetooth
- Controls HALO radar, autopilots, Ghost and Recon trolling motors and CZone digital switching
- IPX7 waterproof, 10 Hz GPS and 8 GB internal storage
- HDS PRO 16 display unit
- Gimbal bracket kit
- Sun cover
- Power cable kit
- Documentation pack
No exploded diagram available for this product.
ActiveImaging HD 3-in-1 FishReveal Transducer
Active Imaging HD Thru-Hull (Dual) Transducers
Active Imaging HD Thru-Hull (Dual) Transducer STARBOARD
Active Imaging HD Thru-Hull (Dual) Transducer PORT
Lowrance ActiveTarget 2 (Module + Transducer + Mounts)
ActiveTarget 2 XL Transducer Only (25 ft cable)
ActiveTarget 2 XL Transducer Only (10 ft cable)
Lowrance Active Imaging 3 in 1 Transducer 1.8m cable
Lowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance Active Target Live Sonar, Transducer Module and Cables
Lowrance Halo20 Pulse Compression Radar
Lowrance Halo20+ Pulse Compression Radar
Lowrance Halo 24 Radar
Lowrance NAC-1 Outboard Hydraulic Pilot Pack
Lowrance Point-1 GPS Glonass With Electronic Compass
Lowrance Active Imaging 3 in 1 Transducer 1.8m cable
Lowrance Active Imaging Transducer SideScan and DownScan 7.6m cable
Lowrance Active Target Live Sonar, Transducer Module and Cables
Lowrance ActiveTarget 2 (Module + Transducer + Mounts)
Lowrance HDI Skimmer Transom Mount transducer
Lowrance HDI Skimmer Transom Mount transducer with Temperature
Lowrance Bullet Skimmer Transducer
Lowrance SplitShot Skimmer Transducer
Lowrance TripleShot Skimmer Transducer
Lowrance, Branded XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount Transducer
ActiveImaging HD 3-in-1 FishReveal Transducer
Active Imaging HD Thru-Hull (Dual) Transducers
Active Imaging HD Thru-Hull (Dual) Transducer STARBOARD
Active Imaging HD Thru-Hull (Dual) Transducer PORT
ActiveTarget 2 XL Transducer Only (25 ft cable)
ActiveTarget 2 XL Transducer Only (10 ft cable)
ActiveTarget 2 Module Only
ActiveImaging HD™ Ghost Nosecone
ActiveTarget Trolling Motor Forward/Down Mount Kit
ActiveTarget Trolling Motor Shaft Mount
ActiveTarget Transom Mount Kit
ActiveTarget Trolling Motor Scout Mount Kit
Recon ActiveTarget 2 XL Mounting Kit
Image coming soonEthernet Cable M12-M12 1.8m
Image coming soonEthernet Cable M12-M12 5m
Image coming soonEthernet Cable M12-RJ45 15m
Display
| Screen size | 16" SolarMAX HD IPS |
| Resolution | 1920 x 1080 Full HD |
| Brightness | >1200 nits |
| Touchscreen | Multi-touch |
| Keypad | 8-way directional keypad, pages, waypoint, exit, enter, zoom, menu, power, 4 user-programmable quick access keys |
| Viewing angles | 80° top/bottom, 80° left/right |
Sonar
| Integrated sonar | CHIRP, Broadband, Active Imaging HD DownScan and SideScan, Active Imaging DownScan and SideScan |
| Compatible with | ActiveTarget 2, ActiveTarget, S3100, SonarHub, StructureScan, StructureScan HD, StructureScan 3D, LiveSight (requires PSI-1 module) |
| Output power | Independent dual 1 kW capable, depending on connected transducer |
| Max depth | 1524 m (5000 ft), depending on transducer |
| CHIRP | High, Medium and Low (depending on transducer) |
| Broadband | 50, 83 and 200 kHz (depending on transducer) |
| Active Imaging | 455 and 800 kHz |
| Active Imaging HD (via additional S3100 module) | DownScan 700 kHz and 1200 kHz CHIRP; SideScan 455 kHz and 1075 kHz CHIRP |
Navigation and system
| GPS | 10 Hz GPS/GLONASS, WAAS/EGNOS/MSAS |
| Charts included | C-MAP DISCOVER OnBoard |
| Charts supported | C-MAP REVEAL, C-MAP DISCOVER, C-MAP Genesis, Navionics (Gold, NAV+, Platinum+) |
| Internal storage | 8 GB |
| Waypoints, routes, trails | 3000 waypoints, 100 routes, 100 trails of up to 10,000 points |
| Radar | HALO 20/20+/24 dome; HALO 3/4/6 ft open array |
| Autopilot | Outboard Pilot, NAC-1, NAC-2, Ghost, Recon, MotorGuide Xi5/Xi3 (via PinPoint Gateway) |
| AIS | Chart and radar overlay with target details |
| Digital switching | CZone, Naviop |
Connectivity
| NMEA 2000 | 1 port (Micro-C) |
| NMEA 0183 | 1 port (via power connector) |
| Sonar | 2 ports |
| Ethernet | 2 x 100 Mbit (5-pin), up to 6 MFDs on a network |
| HDMI | 1 input (HDMI 1.4 sink and HDCP) |
| USB | 1 port (USB A), 5 V DC 1.5 A output, max 32 GB |
| Analog video | 1 port (via power cable, adapter sold separately) |
| Card reader | 2 x microSD (SDXC) up to 32 GB |
| Wi-Fi | Internal 802.11b/g/n, compatible with WiFi-1 module |
| Bluetooth | Bluetooth 4.0 with Bluetooth Classic support |
Electrical
| Supply voltage | 12 V DC (10.8 - 17 V DC) |
| Power consumption (max) | 56.6 W (4.1 A at 13.8 V DC) |
| Recommended fuse | 5 A |
Physical and environmental
| Weight (display only) | 3.60 kg (7.94 lb) |
| Mounting | Panel mount or bracket mount |
| Compass safe distance | 65 cm (2.1 ft) |
| Operating temperature | -15 °C to 55 °C |
| Storage temperature | -20 °C to 60 °C |
| Waterproof rating | IPX7 with card door closed |
| Shock and vibration | 100,000 cycles of 20 G |
| Warranty | 2 years (plus 3 years of upgrade options, 5 years total) |
