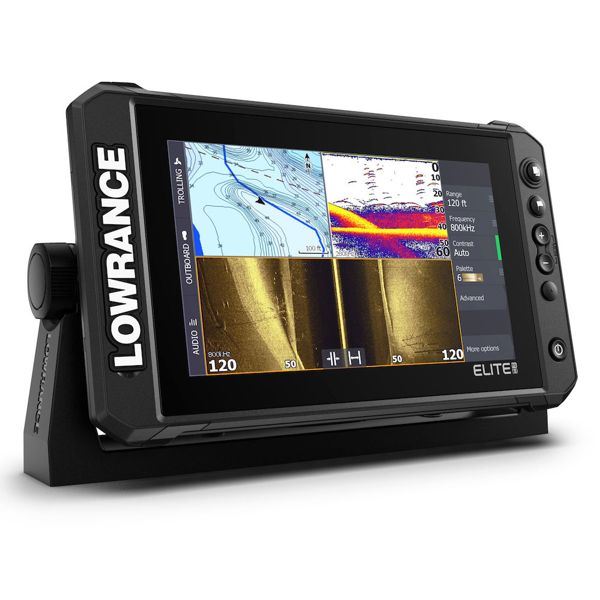

Lowrance Elite FS 9 000-15706-001 front view on tilt bracket, split screen with chart and sonar, no transducer shownLowrance Elite FS 9 000-15706-001 front view on tilt bracket, split screen with chart and sonar, no transducer shown
Lowrance Elite FS 9 front view showing CHIRP sonar and DownScan split screenLowrance Elite FS 9 front view showing CHIRP sonar and DownScan split screen
Lowrance Elite FS 9 angled view on gimbal bracket showing ActiveTarget live sonarLowrance Elite FS 9 angled view on gimbal bracket showing ActiveTarget live sonar
Lowrance Elite FS 9 angled view on gimbal bracket showing chart, SideScan and DownScanLowrance Elite FS 9 angled view on gimbal bracket showing chart, SideScan and DownScan
Lowrance Elite FS 9 angled view on gimbal bracket showing CHIRP sonar and DownScanLowrance Elite FS 9 angled view on gimbal bracket showing CHIRP sonar and DownScan
Lowrance Elite FS 9 000-15706-001 front view on tilt bracket, split screen with chart and sonar, no transducer shown
Lowrance Elite FS 9 front view showing CHIRP sonar and DownScan split screen
Lowrance Elite FS 9 angled view on gimbal bracket showing ActiveTarget live sonar
Lowrance Elite FS 9 angled view on gimbal bracket showing chart, SideScan and DownScan
Lowrance Elite FS 9 angled view on gimbal bracket showing CHIRP sonar and DownScan

Lowrance

Lowrance Elite FS 9 No Transducer

£855.10
Tax included. Shipping calculated at checkout.
000-15706-001
The Lowrance Elite FS 9 is a 9-inch multi-touch fishfinder and chartplotter with integrated CHIRP and Active Imaging sonar, ActiveTarget 2 live sonar compatibility, built-in GPS and C-MAP DISCOVER OnBoard charts. Supplied without a transducer.
✓ Available for collection or delivery in ~3 days

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Navico Extended Warranty

Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.

Extended cover is added to your order and confirmed with your warranty documentation.

Description

The Lowrance Elite FS 9 is the 9-inch model in Lowrance's Elite Fishing System range, bringing the full line-up of Lowrance fish-finding tools to a display that is easy to use and install. Its 9-inch IPS multi-touch screen offers 800 x 480 resolution and more than 1200 nits of brightness, with pages, waypoint, zoom and power keys plus a user-programmable quick-access key.

Supplied as a display only, it has a 9-pin sonar port ready for the transducer that suits how and where you fish, from Active Imaging 3-in-1 to HDI and TotalScan. Integrated sonar covers CHIRP, Broadband, Active Imaging DownScan and SideScan, with Active Imaging HD available through an S3100 sonar module. The Elite FS is also compatible with ActiveTarget 2 and ActiveTarget live sonar, connected through the ActiveTarget module on the Ethernet network, as well as StructureScan, StructureScan 3D, SonarHub and LiveSight (with a PSI-1 module).

Built-in 10 Hz GPS (WAAS, EGNOS, MSAS) and preloaded C-MAP DISCOVER OnBoard charts get you navigating straight away, with support for C-MAP REVEAL, C-MAP DISCOVER, C-MAP Genesis and Navionics Gold, NAV+ and Platinum+. NMEA 2000, Ethernet, Wi-Fi and Bluetooth connect the display to the rest of your boat, and it gives touchscreen control of Ghost and Recon trolling motors and the Lowrance Outboard Pilot.

PRODUCT DETAILS

  • 9-inch IPS multi-touch display, 800 x 480, over 1200 nits for sunlight viewing
  • Display only, with a 9-pin sonar port for the transducer of your choice
  • ActiveTarget 2 live sonar ready via the ActiveTarget module
  • Active Imaging HD ready with the S3100 sonar module
  • FishReveal shows fish clearly on high-detail DownScan images
  • Preloaded C-MAP DISCOVER OnBoard charts, C-MAP Genesis Live and Navionics support
  • Built-in 10 Hz GPS with 3000 waypoints, 100 routes and 100 trails
  • NMEA 2000, Ethernet, Wi-Fi and Bluetooth connectivity
  • Touchscreen control of Ghost and Recon trolling motors and Outboard Pilot
  • IPX6 and IPX7 waterproof, 12 V DC with 3 A fuse
  • Elite FS 9 display unit
  • Plastic gimbal bracket kit
  • Sun cover
  • Power cable kit

No exploded diagram available for this product.

9PIN HIGH SPEED SKIMMER L/H PK ASY

9PIN HIGH SPEED SKIMMER L/H PK ASY

9PIN HIGH SPEED SKIMMER M/H PK ASY

9PIN HIGH SPEED SKIMMER M/H PK ASY

B&G, Lowrance, Simrad TotalScan Skimmer Transducer

B&G, Lowrance, Simrad TotalScan Skimmer Transducer

B&G, Lowrance, Simrad TotalScan Thru Hull Transducer Medium High CHIRP

B&G, Lowrance, Simrad TotalScan Thru Hull Transducer Medium High CHIRP

B&G, Lowrance, Simrad TotalScan Thru Hull Transducer with Low and High CHIRP

B&G, Lowrance, Simrad TotalScan Thru Hull Transducer with Low and High CHIRP

B&G, Lowrance, Simrad XSonic Airmar B258 Bronze 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar B258 Bronze 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar B45 Bronze 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar B45 Bronze 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar M260 50-200 kHz In Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar M260 50-200 kHz In Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar P319 600W 50-200 kHz Plastic Through Hull

B&G, Lowrance, Simrad XSonic Airmar P319 600W 50-200 kHz Plastic Through Hull

B&G, Lowrance, Simrad XSonic Airmar P66 Plastic 50-200 khz Transom mount transducer

B&G, Lowrance, Simrad XSonic Airmar P66 Plastic 50-200 khz Transom mount transducer

B&G, Lowrance, Simrad XSonic Airmar P79 Plastic 50-200 kHz In Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar P79 Plastic 50-200 kHz In Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 kHz Through Hull 0 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 kHz Through Hull 0 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 12 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 12 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 20 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS164 1 kW 50-200 khz Through Hull 20 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS260 1 kW 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar SS260 1 kW 50-200 khz Through Hull Transducer

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 0 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 0 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 12 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 12 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 20 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar SS60 600 W 50-200 khz Through Hull 20 Degree Tilt

B&G, Lowrance, Simrad XSonic Airmar TM260 Plastic 50-200 khz Transom mount transducer

B&G, Lowrance, Simrad XSonic Airmar TM260 Plastic 50-200 khz Transom mount transducer

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 0 degree tilt

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 0 degree tilt

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 12 degree tilt

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 12 degree tilt

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 20 degree tilt

B&G, Lowrance, Simrad XSonic Bronze HDI 50-200, 455-800 kHz 20 degree tilt

B&G, Lowrance, Simrad XSonic Skimmer HDI 50-200, 455-800 kHz Transom Mount

B&G, Lowrance, Simrad XSonic Skimmer HDI 50-200, 455-800 kHz Transom Mount

B&G, Lowrance, Simrad XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount

B&G, Lowrance, Simrad XSonic Skimmer HDI 83-200, 455-800 kHz Transom Mount

Lowrance Active Imaging Transducer SideScan and DownScan 7.6m cable

Lowrance Active Imaging Transducer SideScan and DownScan 7.6m cable

Lowrance Active Target Live Sonar, Transducer Module and Cables

Lowrance Active Target Live Sonar, Transducer Module and Cables

Lowrance B&G Simrad Active Imaging 3-IN-1 Transducer

Lowrance B&G Simrad Active Imaging 3-IN-1 Transducer

Lowrance, Simrad LSS-2 - StructureScan HD Skimmer transducer

Lowrance, Simrad LSS-2 - StructureScan HD Skimmer transducer

Lowrance, Simrad Plastic StructureScan HD thru-hull transducer

Lowrance, Simrad Plastic StructureScan HD thru-hull transducer

Lowrance, Simrad Stainless Steel StructureScan HD Pair off thru-hull transducers

Lowrance, Simrad Stainless Steel StructureScan HD Pair off thru-hull transducers

Lowrance, Simrad Stainless Steel StructureScan HD Sonar thru-hull transducer.

Lowrance, Simrad Stainless Steel StructureScan HD Sonar thru-hull transducer.

Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175H 1kW High CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175L 1kW Low CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS175M 1kW Medium CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75H High CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 0 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 12 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar SS75M Medium CHIRP Thru-Hull 20 Degree Tilt

Lowrance ActiveTarget 2 (Module + Transducer + Mounts)

Lowrance ActiveTarget 2 (Module + Transducer + Mounts)

Elite FS 9 Suncover

Elite FS 9 Suncover

Image coming soon

Elite FS 9 Flush Mount Kit

Corner Clip Kit for Elite FS 7/9

Corner Clip Kit for Elite FS 7/9

Lowrance Point-1 GPS Glonass With Electronic Compass

Lowrance Point-1 GPS Glonass With Electronic Compass

Lowrance NAC-1 Outboard Hydraulic Pilot Pack

Lowrance NAC-1 Outboard Hydraulic Pilot Pack

Lowrance Active Target Live Sonar, Transducer Module and Cables

Lowrance Active Target Live Sonar, Transducer Module and Cables

Lowrance ActiveTarget 2 (Module + Transducer + Mounts)

Lowrance ActiveTarget 2 (Module + Transducer + Mounts)

S3100 Sonar Module

S3100 Sonar Module

Display

Screen size9" IPS
Resolution800 x 480
Brightness>1200 nits
TouchscreenMulti-touch
KeypadPages, waypoint, zoom, power, 1 user-programmable quick-access key
Viewing angles50° top, 60° bottom, 70° left/right

Sonar

Sonar port1 x 9-pin connector
Integrated sonarCHIRP, Broadband, Active Imaging DownScan and SideScan; Active Imaging HD DownScan and SideScan with S3100 module
Compatible withActiveTarget 2, ActiveTarget, S3100, SonarHub, StructureScan, StructureScan HD, StructureScan 3D, LiveSight (requires PSI-1)
CHIRPHigh, Medium and Low CHIRP (depending on transducer)
Broadband50, 83 and 200 kHz (depending on transducer)
Active Imaging455 and 800 kHz
Active Imaging HD (via S3100)DownScan 700 / 1200 kHz CHIRP; SideScan 455 / 1075 kHz CHIRP
Transducer suppliedNone (display only)

Navigation

GPS10 Hz internal high-sensitivity, WAAS + EGNOS + MSAS
Cartography includedC-MAP DISCOVER OnBoard
Cartography supportedC-MAP REVEAL, C-MAP DISCOVER, C-MAP Genesis, Navionics (Gold, NAV+, Platinum+), Lowrance Regional Mapping Partners
Waypoints, routes, trails3000 waypoints, 100 routes, 100 trails of up to 10,000 points
Autopilot / motor controlOutboard Pilot, Ghost and Recon trolling motors, MotorGuide Xi5/Xi3 (requires MotorGuide PinPoint Gateway)
AISAIS chart overlay and target vessel details

Connectivity

NMEA 20001 x Micro-C
Ethernet1 x 100 Mbit (5-pin)
Card reader1 x microSD, up to 32 GB
Wi-FiInternal 802.11 b/g/n
Bluetooth4.0 with Bluetooth Classic support
MultimediaSonicHub, SonicHub2, FusionLink and NMEA 2000 compliant marine audio

Electrical

Supply voltage12 V DC (10.8 - 17 V DC)
Power consumption (max)28 W (2 A at 13.8 V DC)
Recommended fuse3 A

Physical

Weight (display only)1.2 kg (2.7 lb)
Dimensions289.0 x 170.5 x 91.9 mm (display); 309.2 mm wide x 180.7 mm high on gimbal bracket
MountingGimbal bracket or dash flush mount
Compass safe distance0.5 m (1.6 ft)

Environmental

Operating temperature-15°C to 55°C (5°F to 131°F)
Storage temperature-20°C to 60°C (-4°F to 140°F)
Waterproof ratingIPX6 and IPX7 (IPX7 with card door closed)
Shock and vibration100,000 cycles of 20 G

Warranty

Warranty2 years, with Lowrance upgrade options to a total of 5 years

No videos available for this product.

Does it come with a transducer?
No. This is the display-only version of the Elite FS 9. It has a 9-pin sonar port for CHIRP, DownScan, SideScan, Active Imaging, TotalScan and StructureScan transducers, and a 7-pin transducer can be connected with a 7-pin to 9-pin adapter cable.
Can I add ActiveTarget live sonar?
Yes. The Elite FS is compatible with ActiveTarget 2 and ActiveTarget. The live sonar transducer connects through its own module on the Ethernet network, alongside the transducer on the 9-pin sonar port.
Does it support Active Imaging HD?
Yes, with the separate S3100 sonar module, which adds Active Imaging HD DownScan (700/1200 kHz CHIRP) and SideScan (455/1075 kHz CHIRP).
What charts does it use?
It comes with C-MAP DISCOVER OnBoard charts and supports C-MAP REVEAL, C-MAP DISCOVER, C-MAP Genesis, Navionics Gold, NAV+ and Platinum+, and Lowrance Regional Mapping Partners on microSD cards up to 32 GB.
What power does it need?
12 V DC (10.8 to 17 V DC), with a maximum draw of 28 W (2 A at 13.8 V DC). Fit a 3 A fuse or circuit breaker on the positive supply.
What is in the box?
Elite FS 9 display unit, Plastic gimbal bracket kit, Sun cover, Power cable kit.
Is it waterproof?
Yes. It is rated IPX6 and IPX7 (IPX7 with the card door closed) and tested to 100,000 cycles of 20 G shock and vibration.
