Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 20 Degree Tilt

Lowrance, Simrad XSonic Airmar B150M Medium CHIRP Thru-Hull 20 Degree Tilt

Manufacturer Part No: 000-13922-001 | £417.99 ex-VAT

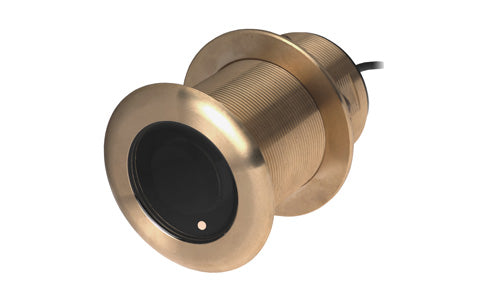

The B150M is a low profile Bronze through hull single element CHIRP transducer. It has a 20 degree tilted element suitable for hulls with 16-24 degree deadrise. Compatible hull material: fiberglass and wood. Max Power: 300 watts. Frequency: 95-155kHz. Beamwidth: 26° to 17° degrees. 10 merter cable with 9 pin connector.

Features

  • Depth and water temperature sensor
  • Ideal for inshore or coastal fishing in shallow to medium depths
  • Freshwater anglers will see fish holding close to structures and suspended fish
  • Track bottom at higher boat speeds
  • More coverage under your boat delivers wider arches and 26° to 17° beamwidths
  • Cover the medium frequency range—CHIRPs from 95-155kHz to provide 60 kHz of total bandwidth from one transducer
  • Available in plastic transom-mount with transom bracket and hardware and with a custom transom housing and cover (TM150M)
  • Also available as thru-hull installation (B150M)
  • Hull Type: Fiberglass, wood or metal
  • 1 internal ceramic
  • Exclusive Xducer ID® technology



Specifications

  • Hull Deadrise: Up to 24°
  • Acoustic Window: Urethane
  • Weight: 1.4 kg (3 lb)
