Raymarine Axiom 12 Pro-S 12 Inch MFD

Manufacturer Part No: E70482 | ID: 158731 | This price includes UK VAT at 20%
Price Checked √ - Free UK Delivery √

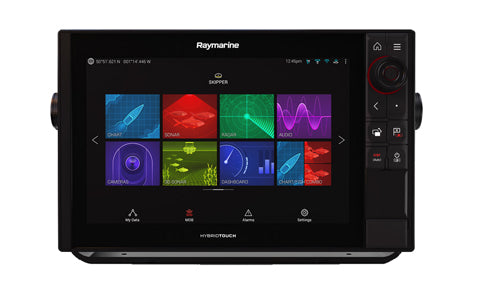

The Axiom Pro 12 S is 12.1 inch HybridTouch multifunction display with built in single channel CHIRP sonar the new standard for all-in-one display. With a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.

Raymarine Axiom 12 Pro-S 12 Inch MFD

Price Checked √ - Free UK Delivery √

The Axiom Pro 12 S is 12.1 inch HybridTouch multifunction display with built in single channel CHIRP sonar the new standard for all-in-one display. With a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation...


ID: 158731 | This price includes UK VAT at 20%

Raymarine Axiom 12 Pro-S 12 Inch MFD with Navionics plus Small Chart

Price Checked √ - Free UK Delivery √

The Axiom Pro 12 S is 12.1 inch HybridTouch multifunction display with built in single channel CHIRP sonar the new standard for all-in-one display. With a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation...


ID: 158732 | This price includes UK VAT at 20%

Raymarine Axiom 12 Pro Silicone Suncover

Axiom 12 Pro S and Axiom 12 Pro RXV Silicone Suncover


ID: 158792 | This price includes UK VAT at 20%

Raymarine RCR-Remote SD Card Reader and USB Socket

RCR-Remote SD Card Reader and USB Socket


ID: 158779 | This price includes UK VAT at 20%

Raymarine eS12 Trunnion Kit for 12 inch eS Series Multifunction Displays

Trunnion Mount Kit for Axiom 12 Pro-S, Axiom 12 Pro-RXV, eS127 and eS128 Multifunction Displays includes knobs and bracket.


ID: 156756 | This price includes UK VAT at 20%

Raymarine eS12 Trim Kit for 12.1 inch eS Series Multifunction Displays

Trim kit for Axiom 12 Pro-S, Axiom 12 Pro-RXV, eS127 and eS128 Multifunction Displays


ID: 156757 | This price includes UK VAT at 20%

Raymarine eS12 Flush Mount Kit for 12.1 inch eS Series Multifunction Displays

Flush mount kit for Axiom 12 Pro-S, Axiom 12 Pro-RXV, eS127 and eS128 Multifunction Displays


ID: 156758 | This price includes UK VAT at 20%

Raymarine a9, a12, c, e, eS and gS Straight Power and data cable 1.5m

Straight power, video in, NMEA in and out cable for most Multifunction Displays 1.5 meters long.


ID: 151347 | This price includes UK VAT at 20%

Raymarine a9, a12, c, e, eS and gS Right Angle Power and data cable 1.5m

Right Angle power, video in, NMEA in and out cable for most Multifunction Displays 1.5 meters long.


ID: 153463 | This price includes UK VAT at 20%

Raymarine Adapter Plate to fit Axiom 12 pro into E120 size cutout

The Axiom 12 pro adapter plate is used when replacing an existing legacy C120 or E120 Classic Multifunction Display with an Axion Pro 12  or Axion Pro 12 RV uses existing fixing holes.


ID: 160087 | This price includes UK VAT at 20%

Raymarine Axiom RV 45mm Right Angle Connector for Axiom Transducers

Axiom RV and Axiom Pro RVX 45mm Right Angle Connector for Axiom Transducers 25 pin to 25 pin


ID: 158788 | This price includes UK VAT at 20%

Raymarine Axiom RV Adaptor Cable 25 pin to 9 pin

Used to connect a DownVision or CHIRP transducer to an Axiom RealVision multifunction display. Adaptor Cable (25 pin to 9 pin) attach DownVision (CPT-1xx) or (CPTS) transducer to Axiom RV or Axiom Pro RVX can also be used to connect a Conical CHIRP transducer to an Axiom Pro S ...


ID: 158640 | This price includes UK VAT at 20%


Axiom Pro Multifunction Displays by Raymarine

Raymarine Axiom Pro Launch 2017

Axiom Pro 9 and 12

1. Axiom Pro MFD

2. Front bezel pieces and Upper keypad

3. Panel mount gasket

4. Suncover

5. Trunnion bracket

6. Trunnion knobs x 2

7. Fixings (M4 x 40 pan head bolt x 4, M4 Nylock nut x 4 and M4 washer x 4)

8. M3x5 screw, M3 spring washer and M3 crimp terminal (for optional grounding connection)

9. Power/Video/NMEA 0183 cable 1.5 m (4.92 ft) straight

10. Documentation pack

11. RayNet 2 m (6.6 ft) network cable

12. SeaTalkng ™ to DeviceNet adaptor cable


Axiom Pro 16

1. Axiom Pro MFD

2. Front bezel pieces and Upper keypad

3. Panel mount gasket

4. Suncover

5. Documentation pack

6. SeaTalkng ™ to DeviceNet adaptor cable

7. Fixings (M4 x 40 pan head bolt x 4, M4 Nylock nut x 4 and M4 washer x 4)

8. Power/Video/NMEA 0183 cable 1.5 m (4.92 ft) straight

9. M3x5 screw, M3 spring washer and M3 crimp terminal (for optional grounding connection)

10. RayNet 2 m (6.6 ft) network cable

Axiom Pro 9 dimensions

A. 299.32 mm (11.78 in)

B. 329.5 mm (12.97 in)

C. 186.2 mm (7.33 in)

D. 173.79 mm (6.84 in)

E.  33.4 mm (1.31 in)

F.  64.5 mm (2.54 in)

G. 137.05 mm (5.4 in) straight connector 117.05 mm (4.61 in) right angled connector

H. 12.86 mm (0.51 in)

J. 201.5 mm (7.93 in) straight connector 181.5 mm (7.15 in) right angled connector


Axiom Pro 12 dimensions

A. 358.03 mm (14.1 in)

B. 388.5 mm (15.3 in)

C. 246.13 mm (9.69 in)

D. 222.8 mm (8.77 in)

E. 31.9 mm (1.26 in)

F. 64.4 mm (2.54 in)

G. 137.1 mm (5.4 in) straight connector 117.1 mm (4.61 in) right angled connector

H. 12.86 mm (0.51 in)

I. 89 mm (3.50 in)

J. 201.5 mm (7.93 in) straight connector 181.5 mm (7.15 in) right angled connector


Axiom Pro 16 dimensions

A. 452.02 mm (17.8 in)

B. 258 mm (10.16 in)

C. 33.4 mm (1.31 in)

D. 68.4 mm (2.69 in)

E. 138.6 mm (5.46 in) straight connector 118.6 mm (4.67 in) right angled connector

F. 15.2 mm (0.6 in)

G. 207 mm (8.15 in) straight connector 187 mm (7.36 in) right angled connector

GENERAL SPECIFICATIONS

Display Size 12.1" IPS Optically Bonded LCD
Display Resolution 1280 x 800 WXGA
Display Type Multitouch
Brightness 1,200 nits
Viewing Angle Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)





PHYSICAL

Dimensions 14.1" x 9.17" x 2.56" (358 x 223 x 65 mm)
Weight 4.5lbs (2.04 kg)
Mounting Top, Front, Bracket
Waterproof Rating IPX6 / IPX7
Operating Temp minus 13deg F to 131deg F (-25deg C to +55deg C)
Storage Temp minus 22deg F to 158deg F (-30deg C to +70deg C)
POWER
Voltage 12V and 24V DC (8 V to 32 DC)
Power Consumption (Full brightness) Axiom Pro 12: ~35W





SENSORS & PERIPHERALS

SENSORS
GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel | External Accessory: GA150 (A80288)
Sonar Type - Built-in Pro S model - High CHIRP*
Pro RVX model - RealVision 3D + 1kW Sonar
Sonar Connections S variant*= 25pin connector used only with CPT-S transducers
RVX variant = 25pin RealVision™ type connector + 11 pin 1kW type connector
*Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable.
External Sonar - RayNet
Sonar Depth CHIRP Sonar = 900 feet (274 m)
DownVision™ = 600 feet (183 m) | SideVision™ = 300 feet (91 m) | RealVision™ 3D = 300 feet (91 m) 1kW = 5,000 feet (1,500 m)
External Sonar Yes - CP100, CP200, CP370, CP470, CP570 via RayNet
Radar Yes - Quantum, Digital, HD Color and Super HD Color Radars
AIS Yes - N2K compatible
Autopilot Control Yes - Evolution Autopilot
Thermal Night Vision Yes - IP or Analogue
Video / Camera 1 x Analogue input (BNC) Up to 10 IP Cameras
Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription | SiriusXM - N. America Only
[Weather features available in future Lighthouse 3 software update]
Audio N2K / *Bluetooth / *SiriusXM Audio
[*Available in future Lighthouse 3 software update]
Digital Switching Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update]
Remote Control RMK-10 (A80438) & RCU-3 (E62351)





NETWORKING

Ethernet 2 x 10/100 Mbit/s Network (RayNet)
NMEA0183 1 Transmit / 2 Receive
NMEA2000 1 x NMEA2000 port (DeviceNet microC)
SeaTalkNG Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06075 1m adaptor included in box)
USB 1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)
Wi-Fi WiFi - 802.11 a / b / g / n
BlueTooth Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update]





OTHER SPECIFICATIONS

NAVIGATION
Cartography Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+
[*C-MAP chart compatibility available in future Lighthouse 3 software update]
Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
MEMORY
Internal 16GB Solid State
External 2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format
(microSD native format of exFAT must be reformatted to NTFS or FAT32)
OTHER
Languages 24
Conformances NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210
