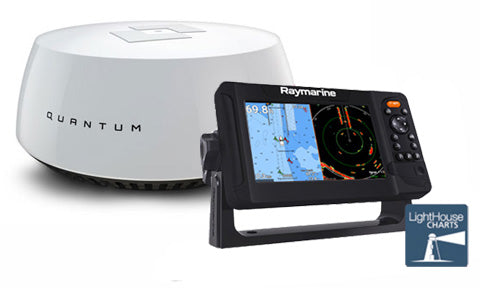

Raymarine Element 7 S with Two Region Lighthouse Chart and Wireless Radar

Raymarine Element 7 S with Two Region Lighthouse Chart and Wireless Radar

Manufacturer Part No: E70531-00-202-Q24W | £1,825.00 ex-VAT
Price Checked √ - Free UK Delivery √

The Element 7 S display gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor off ers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful colour. Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confi dence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays. Comes with Quantum 18 inch Q24W raydome and 10 meter power cable, Raymarine Lighthouse 2 region download chart.

Raymarine Element 7 Sun Cover

Sun Cover for Raymarine Element 7 HV

£42.96 ex-VAT

Raymarine Element 7 Trunnion Kit

Trunnion bracket and knobs for Raymarine Element 7 HV

£56.29 ex-VAT

Raymarine Element 7 Surface mount Kit

Surface Mount Kit for Raymarine Element 7 HV

£42.96 ex-VAT

Raymarine Element 7 S with Navionics Small Plus Chart and Wireless Radar

Price Checked √ - Free UK Delivery √
The Element 7 S display gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance, Element S will quickly become your trusted cruising companion. A quad-core...

£1,863.33 ex-VAT

Raymarine Element 7 S with Navionics Silver Chart and Wireless Radar

Price Checked √ - Free UK Delivery √
The Element 7 S display gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance, Element S will quickly become your trusted cruising companion. A quad-core...

£1,901.67 ex-VAT

Raymarine Element 7 S with Two Region Lighthouse Chart and Wireless Radar

Price Checked √ - Free UK Delivery √
The Element 7 S display gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance, Element S will quickly become your trusted cruising companion. A quad-core...

£1,825.00 ex-VAT

Element S, Element HV

1. Element™ display.
2. Surface mount gasket.
3. Suncover.
4. Trunnion knobs x 2.
5. Documentation pack
6. Trunnion bracket
7. Surface mount stainless steel fixings x 4 (M4 x 40 machine screw, M4 flat washer, M4 locking nut)
8. Power / NMEA 2000 cable (includes 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000
lead).




Trunnion mount dimensions

Surface mount dimensions

Element technical specification

Internal GNSS (GPS / GLONASS) receiver specification

HyperVision™ technical specification

GENERAL SPECIFICATIONS

Input Voltage 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V)
Networking Wi-Fi only
Antenna Type Patch Array
Power Consumption Transmit mode 17W; standby mode 7W; sleep mode 2W
Range Scales From 1/16 to 24 nautical miles
Transmit Frequency 9354 to 9446 MHz
Peak Power Output 20W
Duplexer Circulator
Pulse Widths (3 dB) 40 ns to 14.7 μs
CHIRP Lengths 400 ns to 20 μs
CHIRP Bandwidth Up to 32 MHz
IF Bandwidth 26 MHz
Noise Less than 4 dB
Max. Range Scale from 1/16 to 24 nautical miles
Beamwidth (nominal) 4.9º horizontal and 20º vertical
Polarisation Horizontal
Waterproofing IPX6
Weight 5.6 kg (12.3 lb)
